Onpin Air Screwdriver OP-808A1 EN ISO 11148-6 - Low Noise 71dB, 3 Speeds, 35Nm
The Onpin OP-808A1 Air Screwdriver is a low-noise industrial pneumatic fastening tool designed for screw sizes ranging from 4 to 5 mm. Compliant with EN ISO 11148-6:2012 and Machinery Directive 2006/42/EC, it operates at a standard pressure of 90 psi (6.2 bar), delivering a free speed of 10000 rpm, working torque of 20 Nm, and maximum torque of 35 Nm. Featuring a ultra-low sound level of only 71 dB(A) via rear exhaust with muffler, three selectable speed settings, high attack frequency, and low counteraction at a weight of 0.76 kg, it is ideal for heavy-productive assembly lines. Engineered for optimal efficiency across rattan, carpentry, electrical, motor, aluminum, and hardware manufacturing sectors.
- 808A1
- OP-808A1
- 01-102-03
- 02-200-03
- 02-200-04
- 02-200-05
- 02-200-07
- 02-201-05
- 02-201-13
- 03-700-07
- 04-700-03
- 04-701-08
- 04-702-05
- 04-702-15
- 05-701-06
- 06-700-08
- 06-701-09
- 06-701-10
- 10-701-01
- 12-700-06
- 13-701-06
- 15-701-07
- 15-702-02
- 17-709-01
- 18-302-02
- 24-702-01
- 25-403-02
- 25-703-01
- 26-302-02
- 26-333-01
- 27-399-02
- 31-707-03
- 35-706-08
- 36-503-05
- 37-503-03
- 38-503-02
- 39-401-01
- 39-503-02
- 40-701-02
- 41-703-01
- 43-702-01
- 45-702-02
- 51-403-07
- 51-501-02
- 51-702-02
- 52-501-03
- 52-701-02
- 52-701-17
- 52-702-05
- 54-701-02
- 74-706-05
- 75-604-01
- 78-611-01
- onpin op 808a1 air screwdriver
- low noise pneumatic screwdriver 71db
- 3 speed air screwdriver op 808a1
- rear exhaust pneumatic impact screwdriver
- 4-5mm air impact screwdriver 35nm
Design file download links:
PDF fileDescription

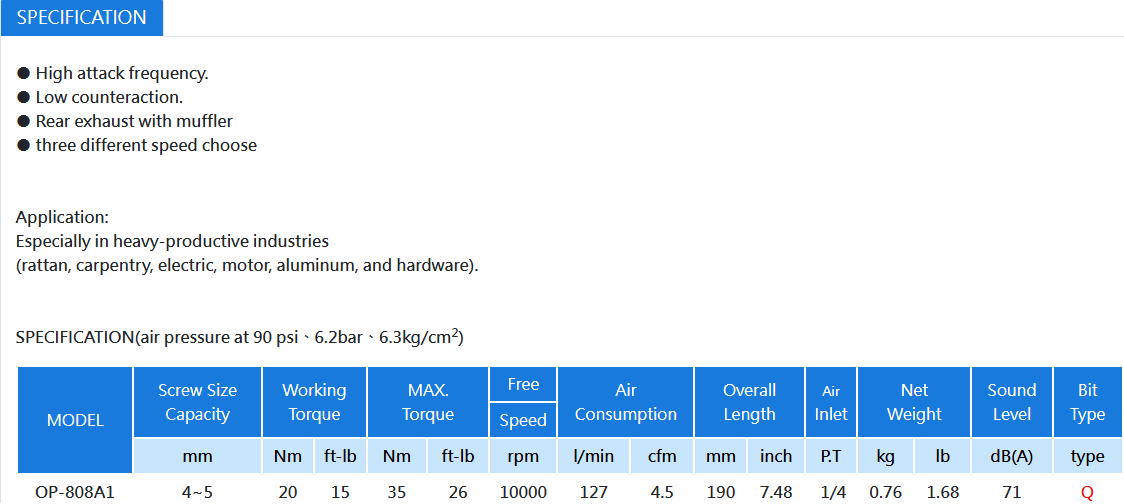

Specification OP-808A1:
Key Features of Onpin OP-808A1
- Rear exhaust with muffler: Effectively silences exhaust air discharge to maintain a quiet, ergonomic work environment.
- Ultra-low sound level: Operates at just 71 dB(A), protecting operators' hearing during long-shift operations.
- Three speed settings (Three different speed choose): Provides versatile speed control to suit various material hardnesses and screw sizes.
- High attack frequency: Accelerates driving operations to improve overall assembly line efficiency.
- Low counteraction: Minimizes reaction torque felt by the operator, reducing hand and wrist fatigue.
- Normative compliance: Certified under Machinery Directive 2006/42/EC and safety standard EN ISO 11148-6:2012.
Technical Specifications of Onpin OP-808A1
- Screw Size Capacity: 4~5 mm
- Working Torque: 20 Nm (15 ft-lb)
- MAX. Torque: 35 Nm (26 ft-lb)
- Free Speed: 10000 rpm
- Air Consumption: 127 l/min (4.5 cfm)
- Overall Length: 190 mm (7.48 inch) / 200 mm
- Air Inlet Size: 1/4" P.T
- Net Weight: 0.76 kg (1.68 lb)
- Sound Level: 71 dB(A)
- Bit Type: Type Q
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
Industrial Applications of Onpin OP-808A1
- Rattan Industry: Fastening metal connections onto rattan frames.
- Carpentry & Furniture Manufacturing: Installing hinges, locks, and metal hardware on wooden structures.
- Electrical & Motor Assembly: Driving screws on motor casings, electrical panels, and internal hardware.
- Aluminum & Hardware Fabrication: Assembling aluminum profiles and precision mechanical fittings.
- Heavy-Productive Industries: Ideal for continuous assembly lines operating under strict noise regulation standards.
