/ Onpin Air Screwdriver OP-808 EN ISO 11148-6 - Low Noise 71dB, 3 Speeds, 35Nm
Onpin Air Screwdriver OP-808 EN ISO 11148-6 - Low Noise 71dB, 3 Speeds, 35Nm
Price:Contact Jade M-Tech
Category: Air Wrench
SKU: OP-808
The Onpin OP-808 Air Screwdriver is a professional pneumatic fastening tool designed for screw sizes ranging from 4 to 5 mm. Compliant with EN ISO 11148-6:2012, it operates at a standard air pressure of 90 psi (6.2 bar), delivering a free speed of 10000 rpm, a working torque of 20 Nm, and a maximum torque of 35 Nm. Equipped with a rear exhaust muffler to achieve a low sound level of 71 dB(A), three selectable speed settings, and a lightweight design of 0.76 kg, it ensures maximum comfort in heavy-productive environments. Ideal for applications across rattan, carpentry, electrical, motor, aluminum, and hardware assembly lines.
OP-808 Series Models & Sizes:
- 808
- OP-808
- 808A1
- OP-808A1
- 01-102-03
- 02-200-03
- 02-200-04
- 02-200-05
- 02-200-07
- 02-201-05
- 02-201-13
- 03-700-07
- 04-700-03
- 04-701-08
- 04-702-05
- 04-702-15
- 05-701-06
- 06-700-08
- 06-701-09
- 06-701-10
- 10-701-01
- 12-700-06
- 13-701-06
- 15-701-07
- 15-702-02
- 17-709-01
- 18-302-02
- 24-702-01
- 25-403-02
- 25-703-01
- 26-302-02
- 26-333-01
- 27-399-02
- 31-707-03
- 35-706-08
- 36-503-05
- 37-503-03
- 38-503-02
- 39-401-01
- 39-503-02
- 40-701-02
- 41-703-01
- 43-702-01
- 45-702-02
- 51-403-07
- 51-501-02
- 51-702-02
- 52-501-03
- 52-701-02
- 52-701-17
- 52-702-05
- 54-701-02
- 74-706-05
- 75-604-01
- 78-611-01
- onpin op 808 air screwdriver
- low noise pneumatic screwdriver 71db
- 3 speed air screwdriver op 808
- rear exhaust pneumatic impact screwdriver
- 4-5mm air impact screwdriver 35nm
Show more
Description
Specification OP-808:
Key Features of Onpin OP-808
- Rear exhaust with muffler: Directs exhaust air away from the operator while effectively damping exhaust noise.
- Ultra-low noise level: Maintains sound levels at 71 dB(A) to protect worker hearing in continuous operation environments.
- Three speed settings (Three different speed choose): Enables precise speed adjustment to match different screw sizes and material specs.
- High attack frequency: Drives fasteners rapidly to optimize cycle times on assembly lines.
- Low counteraction: Minimizes reaction torque felt by the operator, reducing hand fatigue during long shifts.
- International compliance: Certified to EN ISO 11148-6:2012 standard and Machinery Directive 2006/42/EC.

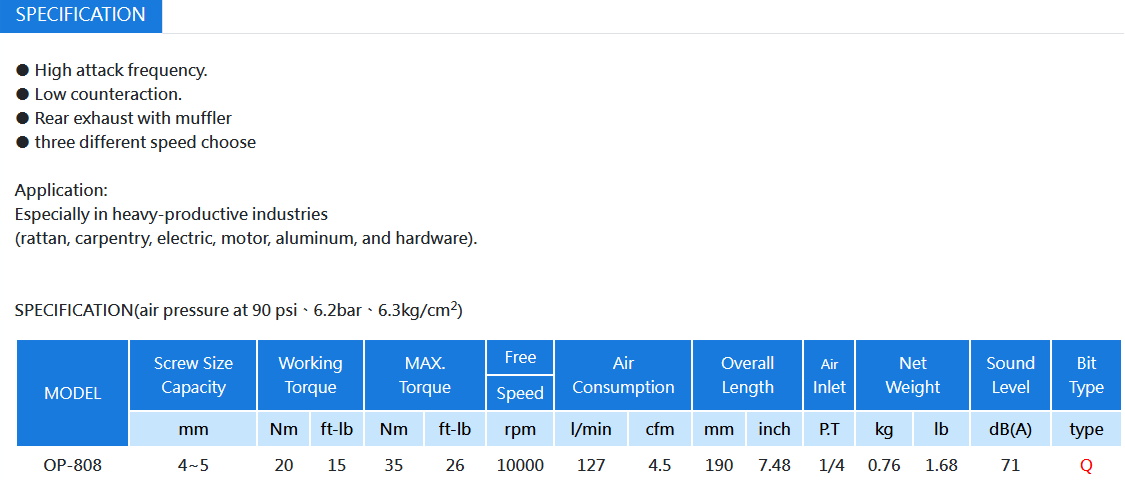

Technical Specifications of Onpin OP-808
- Screw Size Capacity: 4~5 mm
- Working Torque: 20 Nm (15 ft-lb)
- MAX. Torque: 35 Nm (26 ft-lb)
- Free Speed: 10000 rpm
- Air Consumption: 127 l/min (4.5 cfm)
- Overall Length: 190 mm (7.48 inch) / 200 mm
- Air Inlet Size: 1/4" P.T
- Net Weight: 0.76 kg (1.68 lb)
- Sound Level: 71 dB(A)
- Bit Type: Type Q
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
Industrial Applications of Onpin OP-808
- Rattan Industry: Fastening metal joints and connectors onto rattan frames.
- Carpentry & Woodworking: Driving screws into furniture hinges, hardware fittings, and wooden structures.
- Electric & Motor Manufacturing: Assembling motor housings, terminal blocks, and electrical enclosures.
- Aluminum & Hardware Fabrication: Installing aluminum frames and precision mechanical hardware.
- Heavy-Productive Industries: High-throughput assembly lines requiring quiet operation standards.
