Onpin Air Screwdriver OP-305 EN ISO 11148-6 - 360 Deg Exhaust, 12500rpm, 0.57kg
The Onpin OP-305 Air Screwdriver is a two-hammer impact pneumatic tool designed for 4 mm screw size capacity in continuous industrial assembly lines. Compliant with EN ISO 11148-6:2012 and Machinery Directive 2006/42/EC, it operates at a standard air pressure of 90 psi (6.2 bar), delivering a free speed of 12500 rpm, working torque of 20 Nm, and maximum torque of 30 Nm. Featuring an ultra-lightweight design of 0.57 kg, a 360-degree rotating side exhaust, and an air consumption rate of 141 l/min, it provides high attack frequency with low counteraction. This tool is engineered for heavy-productive applications across rattan, carpentry, electrical, motor, aluminum, and hardware fabrication industries.
- 305
- OP-305
- 01-204-12
- 02-200-02
- 02-200-06
- 02-200-08
- 02-202-04
- 03-700-02
- 03-700-04
- 03-700-07
- 04-700-03
- 04-701-12
- 04-702-01
- 04-703-04
- 05-701-06
- 05-701-08
- 06-701-09
- 06-701-10
- 09-701-01
- 10-701-01
- 12-700-06
- 15-702-04
- 15-702-12
- 17-708-01
- 18-402-02
- 24-702-01
- 25-702-08
- 26-403-03
- 31-706-01
- 35-706-01
- 36-402-03
- 37-402-02
- 38-403-03
- 39-503-01
- 40-701-01
- 41-702-01
- 43-702-01
- 51-404-04
- 51-501-03
- 51-702-12
- 52-501-04
- 52-701-02
- 52-702-05
- 74-706-01
- 75-704-02
- 78-609-02
- onpin op 305 air screwdriver
- 4mm pneumatic impact screwdriver
- 360 degree exhaust air screwdriver
- lightweight two hammer air screwdriver
- 12500rpm air impact driver
Design file download links:
PDF fileDescription

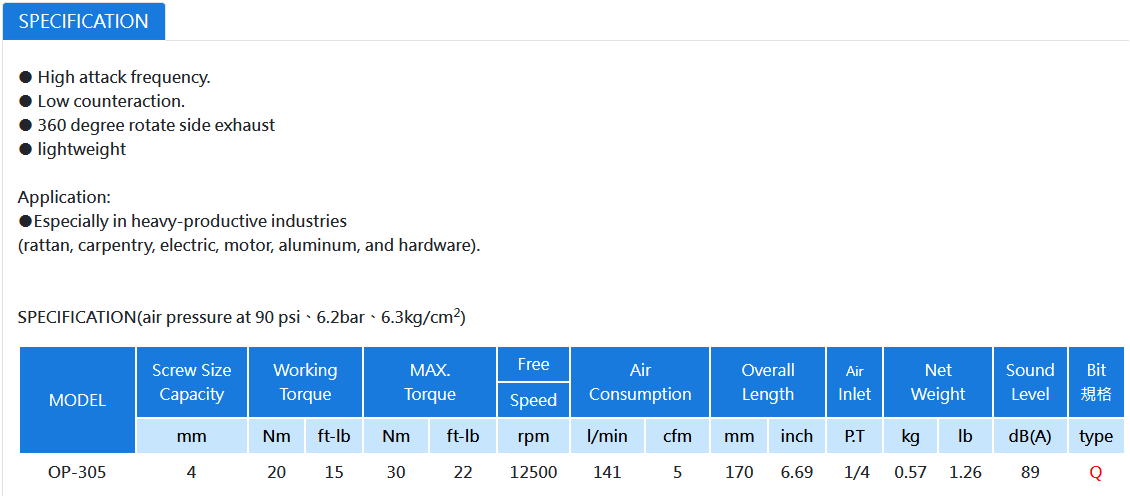

Specification OP-305:
Key Features of Onpin OP-305
- High attack frequency: Accelerates driving cycles to maximize assembly line efficiency.
- Low counteraction: Significantly reduces reaction torque transmitted to the operator, minimizing fatigue.
- 360 degree rotate side exhaust: Allows flexible adjustment of exhaust air direction, keeping air flow away from the operator and workpiece.
- Lightweight design: Net weight of only 0.57 kg enables effortless handling during long working shifts.
- Normative compliance: Certified under European standards Machinery Directive 2006/42/EC and EN ISO 11148-6:2012.
Technical Specifications of Onpin OP-305
- Screw Size Capacity: 4 mm
- Working Torque: 20 Nm (15 ft-lb)
- MAX. Torque: 30 Nm (22 ft-lb)
- Free Speed: 12500 rpm
- Air Consumption: 141 l/min (5 cfm)
- Overall Length: 170 mm (6.69 inch)
- Air Inlet Size: 1/4" P.T
- Net Weight: 0.57 kg (1.26 lb)
- Sound Level: 89 dB(A)
- Bit Type: Type Q
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
Industrial Applications of Onpin OP-305
- Rattan & Carpentry Manufacturing: Fastening wooden frames, furniture joints, and rattan craft assemblies.
- Electrical & Motor Assembly: Driving screws on motor casings, electrical enclosures, and internal brackets.
- Aluminum & Hardware Fabrication: Installing aluminum frame profiles, hinges, and small mechanical hardware fittings.
- Heavy-Productive Industries: High-efficiency use on fast-paced assembly lines in manufacturing facilities.
