/ Onpin Angle Air Impact Screwdriver OP-310LHA ISO 11148-6 - Max Torque 130Nm, 7000rpm
Onpin Angle Air Impact Screwdriver OP-310LHA ISO 11148-6 - Max Torque 130Nm, 7000rpm
Price:Contact Jade M-Tech
Category: Air Wrench
SKU: OP-310LHA
The Onpin OP-310LHA Angle Air Impact Screwdriver is engineered for 5~6 mm screw size capacity in confined spaces using its compact angle housing design. Compliant with EN ISO 11148-6:2012 and Machinery Directive 2006/42/EC, this tool operates at 90 psi (6.2 bar) air pressure, delivering a free speed of 7000 rpm, working torque of 40 Nm, and maximum torque of 130 Nm. Featuring a net weight of 1.6 kg, air consumption of 198 l/min, and sound level of 92 dB(A), it provides high attack frequency with low counteraction for heavy-productive manufacturing environments.
OP-310LHA Series Models & Sizes:
- 310LHA
- OP-310LHA
- 01-104-07
- 02-200-02
- 02-200-06
- 02-201-05
- 02-201-07
- 03-300-02
- 03-700-02
- 03-700-04
- 03-700-07
- 04-700-03
- 04-701-12
- 04-702-01
- 04-703-04
- 05-701-06
- 05-701-08
- 06-701-16
- 09-703-01
- 13-700-08
- 13-701-11
- 13-701-13
- 13-701-19
- 13-703-04
- 14-701-01
- 15-702-04
- 17-708-01
- 18-303-04
- 25-701-02
- 30-303-03
- 30-306-08
- 31-707-03
- 35-708-11
- 36-703-01
- 37-703-01
- 38-704-02
- 39-702-03
- 40-702-02
- 41-703-03
- 43-702-05
- 51-404-04
- 51-702-23
- 51-703-12
- 52-603-02
- 52-700-04
- 52-701-05
- 52-702-19
- 54-701-05
- 65-701-01
- 74-703-01
- 74-703-05
- 74-706-08
- 76-712-01
- 78-610-05
- angle air impact screwdriver
- onpin op 310lha pneumatic screwdriver
- 130nm angle air impact driver
- two hammer angle air screwdriver
- 90 degree air screw driver
Show more
Design file download links:
PDF file** If you are using Google Chrome, please copy the download link and paste it into a new tab to download the 3D file (For support, please contact hotline: +84 935 136 236).
Description

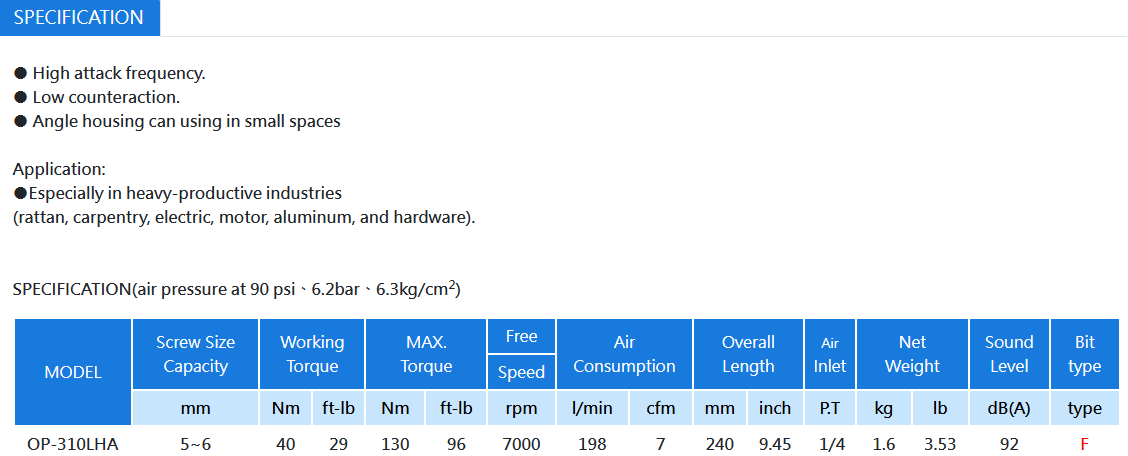

Specification OP-310LHA:
Key Features of Onpin OP-310LHA
- High attack frequency: Provides rapid cycle times and continuous fastening efficiency.
- Low counteraction: Reduces reaction force transmitted to the operator, enhancing user safety and reducing operational fatigue.
- Angle housing design: Compact 90-degree head allows smooth operation within tight, restricted, or awkward spaces.
- Normative compliance: Fully compliant with European standards Machinery Directive 2006/42/EC and EN ISO 11148-6:2012.
Technical Specifications of Onpin OP-310LHA
- Screw Size Capacity: 5~6 mm
- Working Torque: 40 Nm (29 ft-lb)
- MAX. Torque: 130 Nm (96 ft-lb)
- Free Speed: 7000 rpm
- Air Consumption: 198 l/min (7 cfm)
- Overall Length: 240 mm (9.45 inch)
- Air Inlet Size: 1/4" P.T
- Net Weight: 1.6 kg (3.53 lb)
- Sound Level: 92 dB(A)
- Bit Type: Type F
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
Industrial Applications of Onpin OP-310LHA
- Rattan & Carpentry: Fastening frames, joints, and wooden structures in furniture manufacturing.
- Electric & Motor Industry: Assembly of electric motor casings, panels, and electromechanical components.
- Aluminum & Hardware Manufacturing: Securing aluminum profiles, hardware fittings, and metal frames.
- Heavy-Productive Industries: Suitable for continuous assembly lines in large-scale industrial plants.
