Onpin OP-301 Series Air Impact Screwdriver - Two Hammer, 12000 RPM, Max Torque 35Nm, 4-5mm
Price:Contact Jade M-Tech
Category: Air Wrench
SKU: OP-301
The Onpin OP-301 Series air impact screwdriver features a two-hammer mechanism that delivers high attack frequency, low counteraction, and a free speed of 12,000 rpm. Designed for 4–5 mm screw capacities, it provides a working torque of 25 Nm (MAX. 35 Nm) with an air consumption rate of 127 l/min at 6.2 bar operating pressure. Built with a rear exhaust, 3 speed settings, an 89 dB(A) sound level, and a lightweight 0.7 kg frame, it is ideally suited for heavy-productive industries including electrical, motor, aluminum, and hardware manufacturing.
OP-301 Series Models & Sizes:
- OP-301
- OP-301A
- OP-301A1
- OP-301A2
- OP-301A3
- OP-301A5
- OP-301A7
- air impact screwdriver
- two hammer air screwdriver
- pneumatic screwdriver
- onpin air screwdriver
- industrial pneumatic screwdriver
Show more
Design file download links:
PDF file** If you are using Google Chrome, please copy the download link and paste it into a new tab to download the 3D file (For support, please contact hotline: +84 935 136 236).
Description
Specification
Key Features of Onpin OP-301
- High attack frequency: Delivers rapid impact cycles for swift fastener driving and increased assembly line productivity.
- Low counteraction: Reduces reaction torque transmitted to the operator's wrist, enhancing ergonomics and reducing fatigue during long shifts.
- Rear exhaust: Directs exhaust air backward, away from the working surface and operator to maintain a clean workspace.
- Three speed selection: Offers three selectable speed settings to accommodate various material densities and joint requirements.

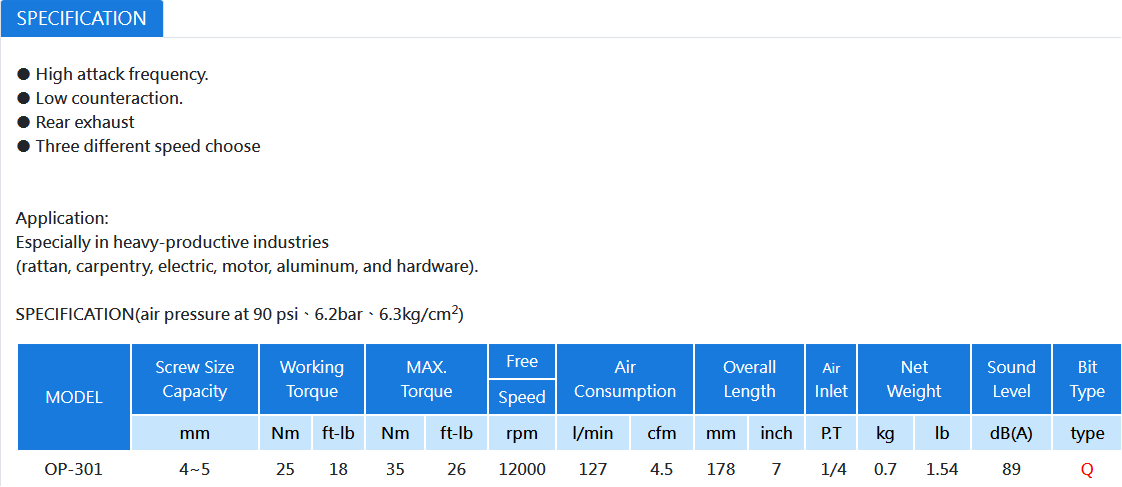

Technical Specifications of Onpin OP-301
- Screw Size Capacity: 4 ~ 5 mm
- Working Torque: 25 Nm (18 ft-lb)
- MAX. Torque: 35 Nm (26 ft-lb)
- Free Speed: 12,000 rpm
- Air Consumption: 127 l/min (4.5 cfm)
- Overall Length: 178 mm (7 in)
- Air Inlet: 1/4" P.T
- Net Weight: 0.7 kg (1.54 lb)
- Sound Level: 89 dB(A)
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Bit Type: Q-type
Industrial Applications of Onpin OP-301
- Electrical & Motor Assembly: Fastening electrical enclosures, motor housings, and internal component fixtures.
- Aluminum & Hardware Manufacturing: Securing aluminum frames, metal fittings, and hardware components in mass production.
- Carpentry & Rattan Furniture: Driving fasteners in industrial woodworking, cabinetry, and rattan frame construction.
