Onpin OP-301AH Air Screwdriver - 10000RPM 40Nm Max Torque 4-5mm Capacity
Price:Contact Jade M-Tech
Category: Air Wrench
SKU: OP-301AH
The Onpin OP-301AH Air Screwdriver is engineered for heavy-duty production lines including hardware, carpentry, electrical, and motor assembly. Featuring a high free speed of 10,000 RPM, a maximum torque of 40 Nm, and a screw capacity of 4–5 mm, it delivers consistent power with low counteraction. It comes equipped with a built-in hook design compatible with spring balancers to enhance workplace safety and operator efficiency. Compact and lightweight at 0.79 kg with an overall length of 200 mm, it operates efficiently at an air pressure of 90 psi (6.2 bar) via a standard 1/4" P.T air inlet.
OP-301AH Series Models & Sizes:
- OP-301AH
- 12.214.14
- 13.311.14
- 16.813.15
- 13.311.16
- 13.311.18
- 13.312.16
- 37.413.14
- 85.817.16
- 15.811.14
- 15.812.19
- 15.813.16
- 16.812.17
- 17.811.19
- 24.812.17
- 17.812.19
- 21.812.12
- 86.815.19
- 62.813.13
- 28.819.12
- 26.812.18
- 26.813.13
- 29.413.13
- 56.813.13
- 35.813.12
- 14.811.18
- 36.813.20
- 42.817.12
- 46.818.19
- 47.614.16
- 48.614.14
- 49.615.13
- 49.561.43
- 51.812.13
- 52.814.12
- 54.813.12
- 62.514.18
- 24.811.19
- 63.812.13
- 63.612.14
- 17.812.21
- 13.312.25
- 63.813.16
- 65.812.13
- 62.612.15
- 89.723.12
- 63.812.28
- 23.811.17
- 13.311.15
- air impact screwdriver
- air screwdriver
- pneumatic screwdriver
- onpin air screwdriver
- industrial pneumatic screwdriver
Show more
Design file download links:
PDF file** If you are using Google Chrome, please copy the download link and paste it into a new tab to download the 3D file (For support, please contact hotline: +84 935 136 236).
Description
Specification
Key Features of Onpin OP-301AH
- High attack frequency: Delivers fast driving action to maximize throughput on assembly lines.
- Suitable for production line, long service life: Built for high durability to withstand continuous operation in industrial environments.
- Low counteraction: Reduces recoil force on the operator's wrist, improving safety and ergonomic comfort.
- 3 different speed can choose: Offers 3 speed options for flexibility across various material requirements.
- Hook design for spring balancer: Integrated hook allows easy mounting on spring balancers, increasing work efficiency and safety.

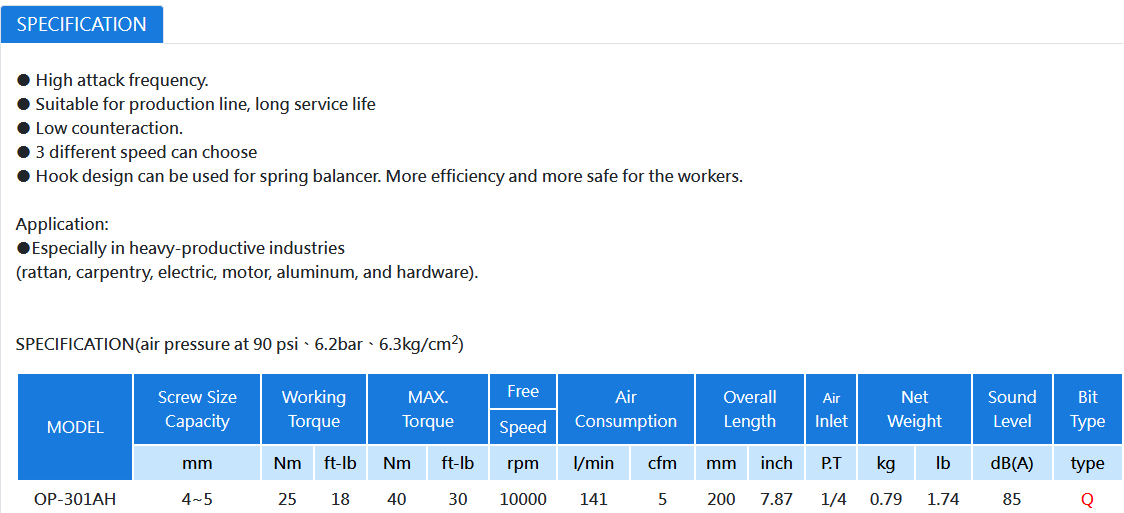

Technical Specifications of Onpin OP-301AH
- Screw Size Capacity: 4 ~ 5 mm
- Working Torque: 25 Nm (18 ft-lb)
- MAX. Torque: 40 Nm (30 ft-lb)
- Free Speed: 10,000 rpm
- Air Consumption: 141 l/min (5 cfm)
- Overall Length: 200 mm (7.87 inch)
- Air Inlet: 1/4" P.T
- Net Weight: 0.79 kg (1.74 lb)
- Sound Level: 85 dB(A)
- Bit Type: Q type
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
Industrial Applications of Onpin OP-301AH
- Rattan Manufacturing: Fastening frames and structural wickerwork components.
- Carpentry & Woodworking: Driving screws for industrial furniture and cabinetry.
- Electric & Motor Assembly: Securing electrical housings, motor casings, and electronic hardware.
- Aluminum Fabrication: Fastening aluminum profiles and structural frames.
- Hardware Industry: Mass assembly of metal parts and industrial hardware fixtures.
