/ Onpin Angle Air Impact Screwdriver OP-301L90 ISO 11148-6 - Max Torque 40Nm, 9000rpm
Onpin Angle Air Impact Screwdriver OP-301L90 ISO 11148-6 - Max Torque 40Nm, 9000rpm
Price:Contact Jade M-Tech
Category: Air Wrench
SKU: OP-301L90
The Onpin OP-301L90 Angle Air Impact Screwdriver features a two-hammer mechanism designed for 4 mm screw size applications in confined spaces. Fully compliant with EN ISO 11148-6:2012 and Machinery Directive 2006/42/EC, this tool offers a free speed of 9000 rpm, maximum torque of 40 Nm, and 3 selectable speed settings. Weighing 1.22 kg with an air consumption of 141 l/min at 90 psi (6.2 bar), it provides a high attack frequency, low counteraction, and a sound level of 83 dB(A) for heavy-productive industries.
OP-301L90 Series Models & Sizes:
- 301L90
- OP-301L90
- 01-103-03
- 02-200-03
- 02-200-04
- 02-200-05
- 02-200-07
- 02-201-05
- 03-700-02
- 03-700-04
- 03-700-07
- 04-700-03
- 04-701-08
- 04-701-09
- 04-701-13
- 04-702-05
- 05-701-06
- 05-702-04
- 06-700-08
- 06-701-09
- 12-702-02
- 13-700-07
- 13-700-08
- 13-701-06
- 15-701-07
- 15-702-02
- 15-702-13
- 17-709-01
- 18-302-02
- 24-702-01
- 25-702-10
- 26-302-03
- 31-706-01
- 35-707-08
- 36-503-05
- 37-503-03
- 38-504-02
- 39-503-02
- 39-702-02
- 39-703-02
- 40-701-02
- 41-703-01
- 43-702-01
- 45-702-02
- 51-403-07
- 51-501-02
- 51-702-14
- 51-704-01
- 52-501-03
- 52-702-05
- 54-701-02
- 64-400-01
- 65-701-01
- 74-702-05
- 74-704-13
- 74-704-14
- 76-705-01
- 78-612-01
- angle air impact screwdriver
- onpin op 301l90 pneumatic screwdriver
- two hammer air impact screwdriver
- 90 degree air screwdriver 4mm
- angle pneumatic screw driver
Show more
Design file download links:
PDF file** If you are using Google Chrome, please copy the download link and paste it into a new tab to download the 3D file (For support, please contact hotline: +84 935 136 236).
Description

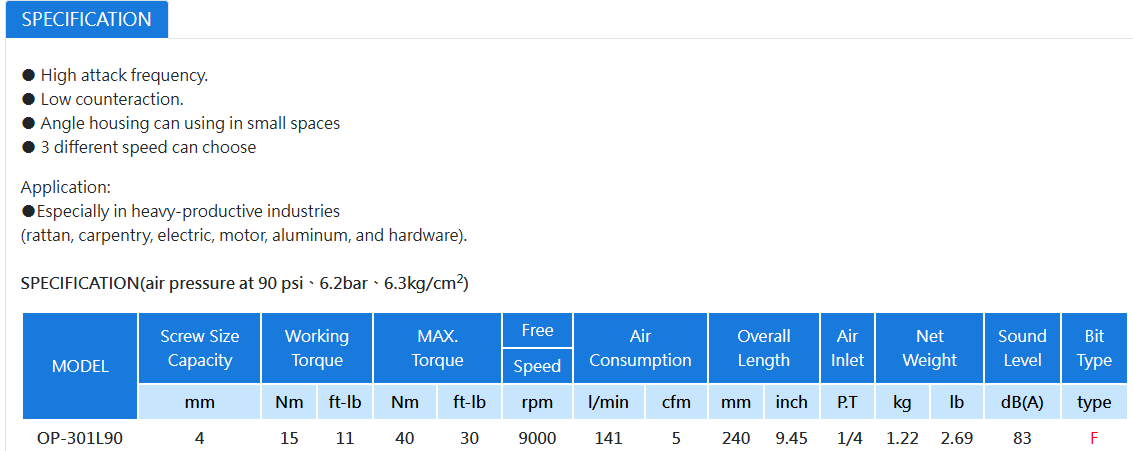

Specification OP-301L90:
Key Features of Onpin OP-301L90
- High attack frequency: Twin-hammer impact mechanism ensures rapid, continuous, and efficient screw driving.
- Low counteraction: Minimizes kickback reaction forces on the operator's hands, improving safety and reducing fatigue.
- Compact angle housing: Allows easy access and operation within tight, restricted, or awkward spaces.
- 3-speed selection: Equipped with a speed switch providing 3 distinct speed settings for optimal control.
Technical Specifications of Onpin OP-301L90
- Screw Size Capacity: 4 mm
- Working Torque: 15 Nm (11 ft-lb)
- MAX. Torque: 40 Nm (30 ft-lb)
- Free Speed: 9000 rpm
- Air Consumption: 141 l/min (5 cfm)
- Overall Length: 240 mm (9.45 inch)
- Air Inlet Size: 1/4" P.T
- Net Weight: 1.22 kg (2.69 lb)
- Sound Level: 83 dB(A)
- Bit Type: Type F
- Standard Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Standard Compliance: Machinery Directive 2006/42/EC, EN ISO 11148-6:2012
Industrial Applications of Onpin OP-301L90
- Rattan & Carpentry: Fastening frames, joints, and wooden components in furniture manufacturing.
- Electric & Motor Industry: Assembly of electric motor housings and precision electrical equipment.
- Aluminum & Hardware Manufacturing: Installing aluminum structures and hardware fittings in narrow spaces.
- Heavy-productive industries: Designed for high-volume, continuous industrial production environments
