/ Onpin Push Start Air Screwdriver OP-320 EN ISO 11148-6 - 10000rpm, 0.67kg
Onpin Push Start Air Screwdriver OP-320 EN ISO 11148-6 - 10000rpm, 0.67kg
Price:Contact Jade M-Tech
Category: Air Wrench
SKU: OP-320
The Onpin OP-320 Push Start Type Air Impact Screwdriver is an industrial pneumatic tool designed for driving 4 mm capacity screws. Certified under EN ISO 11148-6:2012 and Machinery Directive 2006/42/EC, it operates at a standard air pressure of 90 psi (6.2 bar), delivering a free speed of 10000 rpm, working torque of 20 Nm, and maximum torque of 35 Nm. Featuring a net weight of 0.67 kg, low sound level of 80 dB(A), one-hand forward/reverse operation with a self-locking button, and an integrated hook for spring balancers, it ensures low counteraction and high efficiency for heavy-productive applications.
OP-320 Series Models & Sizes:
- 320
- OP-320
- 01-102-03
- 02-200-01
- 02-200-06
- 02-200-07
- 02-201-14
- 03-700-06
- 03-700-07
- 04-700-01
- 04-700-03
- 04-701-08
- 04-702-05
- 06-701-15
- 08-701-09
- 12-701-08
- 13-700-09
- 15-701-07
- 15-702-02
- 18-703-03
- 25-703-05
- 26-703-05
- 28-002-02
- 31-706-01
- 32-710-01
- 35-706-07
- 36-503-05
- 37-503-03
- 38-503-02
- 39-503-02
- 40-701-02
- 41-703-01
- 43-702-01
- 51-403-02
- 51-501-04
- 52-501-03
- 52-701-03
- 52-702-05
- 54-701-01
- 65-701-01
- 74-705-05
- 75-704-08
- 78-610-02
- onpin op 320 air screwdriver
- push start air impact screwdriver
- 4mm pneumatic screwdriver 35nm
- high frequency air screwdriver 10000rpm
- heavy duty air screwdriver op 320
Show more
Design file download links:
PDF file** If you are using Google Chrome, please copy the download link and paste it into a new tab to download the 3D file (For support, please contact hotline: +84 935 136 236).
Description

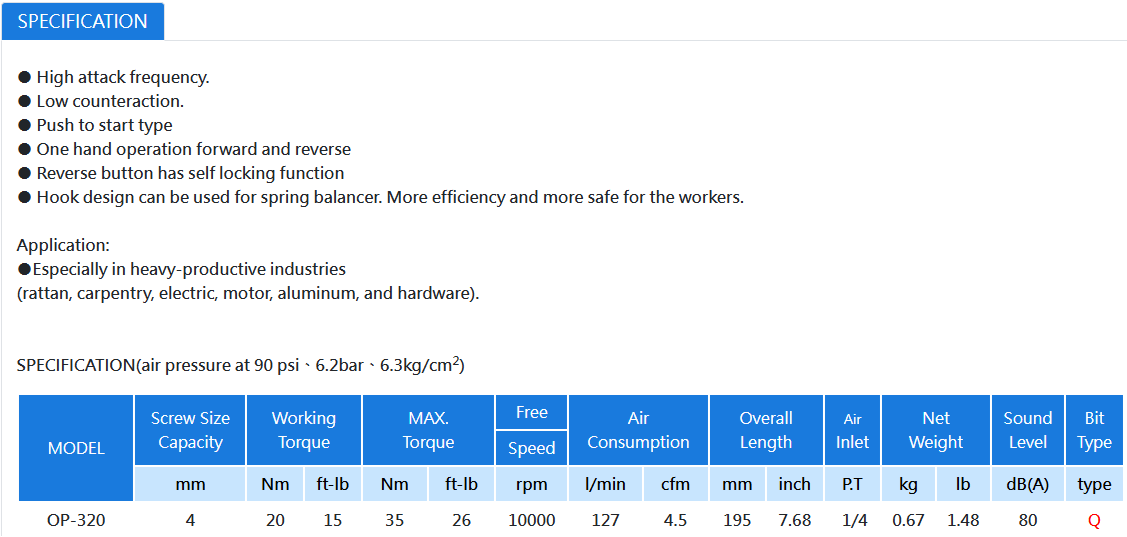

Specification OP-320
Key Features of Onpin OP-320
- Push to start mechanism: Activates immediately when pushed against the fastener, streamilining operations and elevating cycle speed.
- High attack frequency: Provides rapid driving speeds to meet high-volume production demands.
- Low counteraction: Significantly reduces reaction torque transmitted to the operator's wrist, reducing fatigue.
- One-hand forward/reverse switch: Enables seamless direction changes using a single hand.
- Self-locking reverse button: Prevents accidental direction shifts during continuous operation.
- Spring balancer hook design: Integrates easily with tool balancers for enhanced ergonomics and workplace safety.
- Normative compliance: Certified under Machinery Directive 2006/42/EC and standard EN ISO 11148-6:2012.
Technical Specifications of Onpin OP-320
- Screw Size Capacity: 4 - 5 mm
- Working Torque: 20 Nm (15 ft-lb)
- MAX. Torque: 35 Nm (26 ft-lb)
- Free Speed: 10000 rpm
- Air Consumption: 127 l/min (4.5 cfm)
- Overall Length: 195 mm (7.68 inch)
- Air Inlet Size: 1/4" P.T
- Net Weight: 0.67 kg (1.48 lb)
- Sound Level: 80 dB(A)
- Bit Type: Type Q
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
Industrial Applications of Onpin OP-320
- Carpentry & Furniture Manufacturing: Fastening wooden structures, hinges, and hardware fittings.
- Rattan Crafting Industry: Assembling metal fasteners onto rattan frame constructs.
- Electrical & Motor Assembly: Driving screws into motor housings, electrical panels, and internal brackets.
- Aluminum & Hardware Fabrication: Installing aluminum frame profiles and small hardware assemblies.
- Heavy-Productive Industries: High-efficiency utilization across intensive assembly lines in manufacturing environments.
