Onpin OP-301A1 Air Impact Screwdriver - Two Hammer, 12000 RPM, Max Torque 35Nm, 4-5mm
Price:Contact Jade M-Tech
Category: Air Wrench
SKU: OP-301A1
The Onpin OP-301A1 air impact screwdriver features a two-hammer mechanism delivering high attack frequency, low counteraction, and a free speed of up to 12,000 rpm. Designed for 4–5 mm screw capacities, it provides a maximum torque of 35 Nm with an air consumption rate of 127 l/min at 6.2 bar operating pressure. Equipped with three speed settings, rear exhaust, and a hook design for spring balancers, it ensures enhanced worker safety and operational efficiency. Weighing only 0.7 kg with an overall length of 185 mm, it is ideal for heavy-productive industries including electrical, motor, aluminum, and hardware assembly.
OP-301A1 Series Models & Sizes:
- OP-301
- OP-301A
- OP-301A1
- OP-301A2
- OP-301A3
- OP-301A5
- OP-301A7
- air impact screwdriver
- two hammer air screwdriver
- pneumatic screwdriver
- onpin air screwdriver
- industrial pneumatic screwdriver
Show more
Design file download links:
PDF file** If you are using Google Chrome, please copy the download link and paste it into a new tab to download the 3D file (For support, please contact hotline: +84 935 136 236).
Description
Specification
Key Features of Onpin OP-301A1
- Two Hammer Mechanism: Delivers high attack frequency and strong torque output while maintaining low counteraction, reducing operator fatigue during extended shifts.
- 3-Speed Selector: Features three adjustable speed settings to optimize torque control for different fastener sizes and material requirements.
- Rear Exhaust System: Directs exhaust air away from the workpiece and operator, preventing contamination and reducing noise pollution.
- Ergonomic Suspension Hook: Built-in hanger loop designed for integration with spring balancers, improving workplace ergonomics and safety.
- Ultra-Lightweight Design: Weighs only 0.7 kg with an overall length of 185 mm, providing excellent maneuverability in confined spaces.

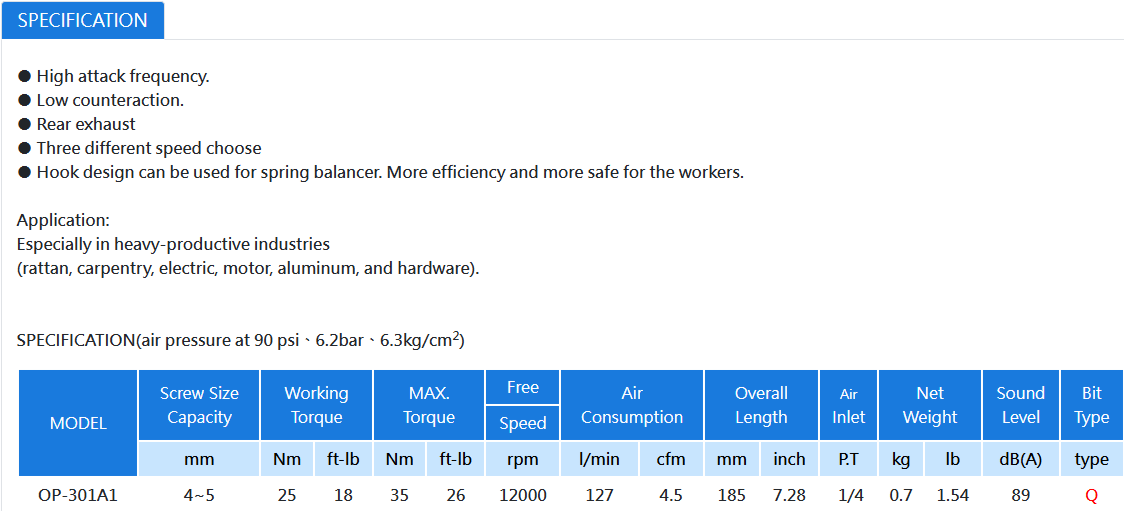

Technical Specifications of Onpin OP-301A1
- Screw Size Capacity: 4 ~ 5 mm
- Working Torque: 25 Nm (18 ft-lb)
- MAX Torque: 35 Nm (26 ft-lb)
- Free Speed: 12,000 rpm
- Air Consumption: 127 l/min (4.5 cfm)
- Overall Length: 185 mm (7.28 in)
- Air Inlet: 1/4" P.T
- Net Weight: 0.7 kg (1.54 lb)
- Sound Level: 89 dB(A)
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Bit Type: Q-type
Industrial Applications of Onpin OP-301A1
- Electrical & Motor Assembly: Fastening housing units and internal components with consistent torque control.
- Aluminum & Hardware Manufacturing: Securing metal frames, hardware fittings, and structural aluminum profiles on high-volume production lines.
- Woodworking & Rattan Furniture: Rapid screw insertion for industrial furniture frames, wooden joints, and wickerwork assemblies.
