Onpin Air Screwdriver OP-306 / OP-306F - Max Torque 200Nm, 8000rpm, 1/4 P.T Air Inlet
The Onpin OP-306 and OP-306F Air Screwdrivers deliver a high maximum torque of 200 Nm (working torque: 45 Nm) and a free speed of 8000 rpm, designed for screw size capacities of up to 6 mm. Featuring a high attack frequency and low counteraction mechanism, these tools support one-hand forward/reverse operation with a self-locking switch and an oil-in-the-front cap design for extended performance life. Operating at a standard pressure of 6.2 bar, each unit weighs 1.06 kg with an overall length of 225 mm, 1/4 P.T air inlet, 90 dB(A) sound level, and choices between bit type Q (OP-306) and type F (OP-306F). They are specifically engineered for heavy-productive industries including rattan, carpentry, electric, motor, aluminum, and hardware fabrication.
- OP-306 Series
- 306 Series
- OP-306
- OP-306F
- 306
- air screwdriver
- pneumatic screwdriver
- Onpin air screwdriver
- impact air screwdriver
- industrial air screwdriver
Design file download links:
PDF fileDescription
Specification
The Onpin OP-306 / OP-306F Air Screwdriver is a heavy-duty pneumatic hand tool engineered for high-precision screw driving and fastening in industrial manufacturing lines. Operating on standard air pressure at 90 psi (6.2 bar), it converts pneumatic energy into rotational force with a maximum torque of 200 Nm while reducing wrist counteraction for operators.
Key Features of Onpin OP-306 / OP-306F
- High-Performance Impact: Features a high attack frequency mechanism to significantly speed up fastening operations on assembly lines.
- Low Counteraction Force: Designed with low counteraction to minimize recoil and operator fatigue during extended production shifts.
- One-Hand Forward/Reverse Control: Enables one hand operation forward and reverse with a self-locking reverse button for seamless workflow adjustment.
- Extended Service Life: Incorporates an oil-in-the-front cap design that maintains proper internal lubrication for prolonged tool durability.
- Versatile Bit Options: Available in two distinct chuck types including Q type (OP-306 model) and F type (OP-306F model) to accommodate different bit standards.

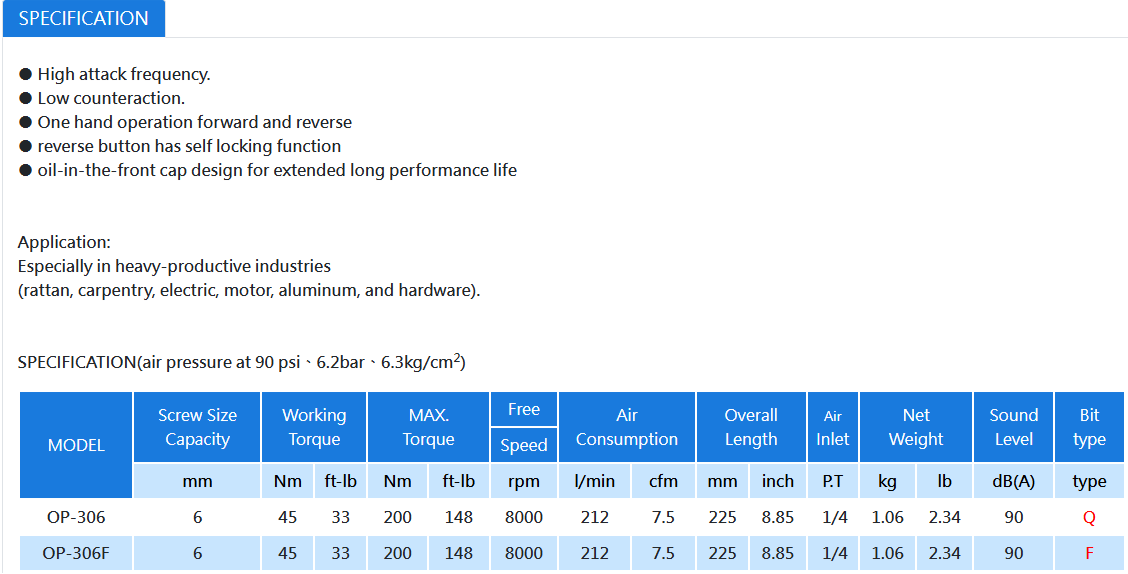

Technical Specifications of Onpin OP-306 / OP-306F
- Brand: Onpin
- Model Numbers: OP-306 & OP-306F (OP-306 Series)
- Screw Size Capacity: 6 mm
- Working Torque: 45 Nm (33 ft-lb)
- MAX. Torque: 200 Nm (148 ft-lb)
- Free Speed: 8,000 rpm
- Air Consumption: 212 l/min (7.5 cfm)
- Overall Length: 225 mm (8.85 inch)
- Air Inlet Size: 1/4 P.T
- Net Weight: 1.06 kg (2.34 lb)
- Sound Level: 90 dB(A)
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Bit Type: Q type (for OP-306) / F type (for OP-306F)
Industrial Applications of Onpin OP-306 / OP-306F
- Furniture & Woodworking: Specially designed for rattan manufacturing and heavy-duty carpentry assembly.
- Electrical & Motor Manufacturing: Precision assembly of electrical equipment, appliances, and electric motor housings.
- Aluminum & Hardware Fabrication: Ideal for aluminum frame structures, metal joinery, and general hardware manufacturing.
