/ Onpin Air Screwdriver OP-100A1 EN ISO 11148-6:2012 - Max Torque 280Nm, 5500rpm, Two Hammer
Onpin Air Screwdriver OP-100A1 EN ISO 11148-6:2012 - Max Torque 280Nm, 5500rpm, Two Hammer
The Onpin OP-100A1 Air Screwdriver is an industrial pneumatic tool engineered for heavy-productive industries with a 8 mm screw capacity. Operating at 90 psi (6.2 bar) air pressure via a Two Hammer Impact mechanism, it delivers a working torque of 75 Nm, a maximum torque of 280 Nm, and a free speed of 5500 rpm. The tool features a forward & reversible knob, a 2-step push start trigger, front-cap oil design for extended service life, and rear exhaust to prevent oil stains on workpieces. Weighing 1.7 kg with an overall length of 265 mm, a 85 dB(A) sound level, and CE / EN ISO 11148-6:2012 compliance, it provides dependable performance for industrial assembly lines.
- OP-100 Series
- 100 Series
- OP-100A Series
- OP-100A1
- 100A1
- air screwdriver
- pneumatic screwdriver
- Onpin air screwdriver
- air impact screwdriver
- two hammer air screwdriver
Design file download links:
PDF fileDescription
Specification
The Onpin OP-100A1 Air Screwdriver is a heavy-duty industrial pneumatic fastening tool featuring a two-hammer impact mechanism designed for 8 mm screw capacity. Powered by standard compressed air at 90 psi (6.2 bar), it converts air power into 75 Nm working torque and 280 Nm maximum torque at 5500 rpm to maximize assembly efficiency.
Key Features of Onpin OP-100A1
- Two Hammer Impact Mechanism: Provides high torque output, fast loading performance, and extended service life for demanding applications.
- 2-Step Trigger & Reversible Knob: Features a 2 steps push start trigger for precise speed control and a Forward & Reversible knob for effortless direction changes.
- Front Cap Oiling System: Engineered with an Oil in the front cap design to maintain continuous lubrication and prolong tool performance life.
- Rear Exhaust Design: Directs exhaust air away to the rear (Rear exhaust), effectively reducing oil stains on workpieces.
- CE & International Compliance: Fully complies with European Machinery Directive 2006/42/EC and EN ISO 11148-6:2012 normative safety standards.

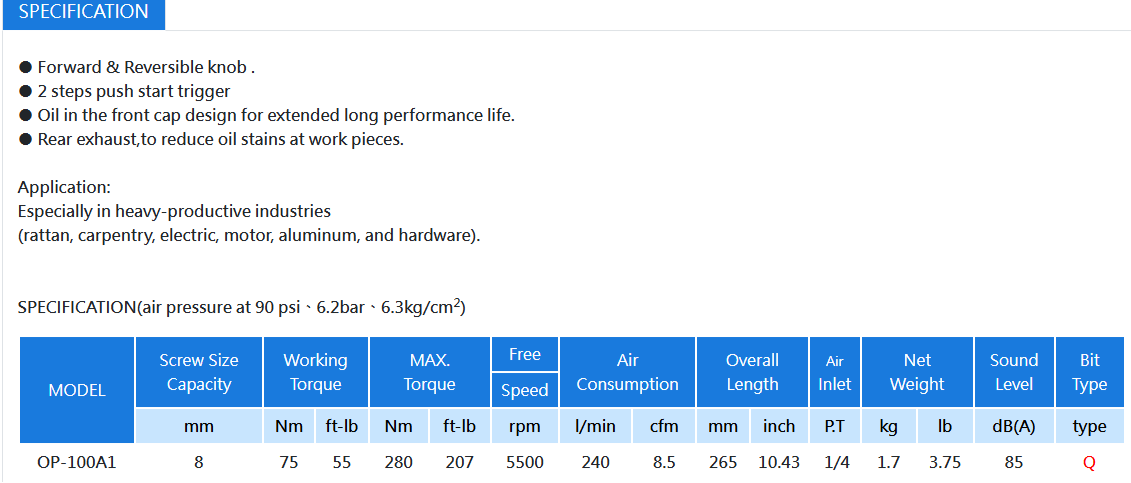

Technical Specifications of Onpin OP-100A1
- Brand: Onpin (Hong Bing Pneumatic Industry Co., Ltd.)
- Model: OP-100A1 (Model: 100A1)
- Impact Mechanism: Two Hammer Impact
- Screw Size Capacity: 8 mm
- Working Torque: 75 Nm (55 ft-lb)
- MAX. Torque: 280 Nm (207 ft-lb)
- Free Speed: 5,500 rpm
- Air Consumption: 240 l/min (8.5 cfm)
- Overall Length: 265 mm (10.43 inch)
- Air Inlet Size: 1/4" P.T
- Net Weight: 1.7 kg (3.75 lb)
- Sound Level: 85 dB(A)
- Bit Type: Type Q
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Normative Standards: EN ISO 11148-6:2012, Machinery Directive 2006/42/EC
Industrial Applications of Onpin OP-100A1
- Woodworking & Rattan Industries: Ideal for heavy-duty screw driving in rattan, carpentry, and furniture assembly.
- Electrical & Motor Manufacturing: Used for fastening electric motor housings, panels, and industrial electrical equipment.
- Aluminum & Hardware Fabrication: Suited for joining aluminum extrusions, hardware components, and heavy structural metal parts.
