/ Onpin OP-306SL / OP-306SLF Air Screwdriver - 200Nm, 8000rpm, 6mm
Onpin OP-306SL / OP-306SLF Air Screwdriver - 200Nm, 8000rpm, 6mm
The Onpin OP-306SL / OP-306SLF air screwdriver operates at a standard air pressure of 90 psi (6.2 bar), specifically designed for heavy-productive industries such as electric, motor, aluminum, hardware, rattan, and carpentry. The tool delivers a maximum torque of 200 Nm (148 ft-lb), a working torque of 50 Nm, and a free speed of 8,000 rpm with a 6 mm screw size capacity. Featuring one-hand operation with a forward/reverse switch, side exhaust, quick chuck (Type Q or F), and a 360-degree rotating handle exhaust, it ensures high speed and torque efficiency. The unit has an overall length of 184 mm, a net weight of 1.2 kg, air consumption of 226 l/min (8 cfm), and a 1/4" P.T air inlet.
- Onpin OP-306SL
- OP-306SLF
- air screwdriver
- pneumatic screwdriver
- industrial air screwdriver
- air impact screwdriver
- pneumatic screw driving tool
Design file download links:
PDF fileDescription

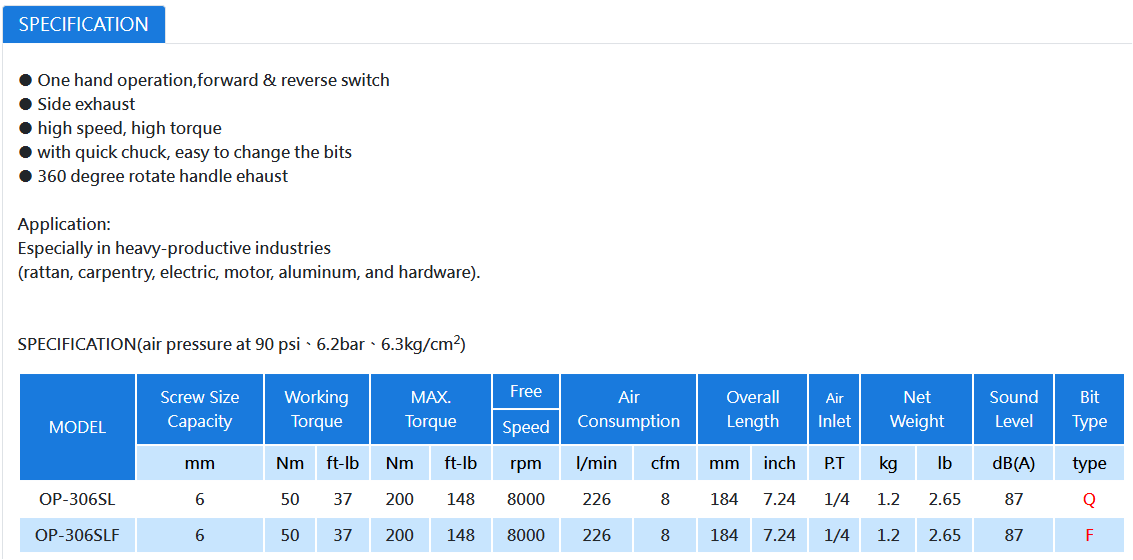

Specification OP-306SL , OP-306SLF:
The Onpin OP-306SL / OP-306SLF Air Screwdriver is an industrial pneumatic fastening tool operating at a standard air pressure of 90 psi / 6.2 bar / 6.3 kg/cm². Powered by compressed air, it generates high rotation speed and powerful torque for efficient and precise screw driving with minimal counteraction.
Key Features of Onpin OP-306SL / OP-306SLF
- One-Hand Operation & Forward/Reverse Switch: Ergonomic switch design enables convenient one-handed directional control.
- Dual Exhaust Design: Features side exhaust and a 360 degree rotate handle exhaust, directing air away from the operator and keeping the workspace clean.
- High Speed & High Torque: Delivers a free speed of 8,000 rpm and a maximum torque of 200 Nm for heavy-duty industrial applications.
- Quick Chuck Mechanism: Equipped with a quick chuck design for fast and effortless bit replacement.
- Bit Type Options: Available in two variants—Type Q (model OP-306SL) and Type F (model OP-306SLF)—to match different bit standards.
Technical Specifications of Onpin OP-306SL / OP-306SLF
- Model: OP-306SL (Bit Type Q) / OP-306SLF (Bit Type F)
- Screw Size Capacity: 6 mm
- Working Torque: 50 Nm (37 ft-lb)
- MAX. Torque: 200 Nm (148 ft-lb)
- Free Speed: 8,000 rpm
- Air Consumption: 226 l/min (8 cfm)
- Overall Length: 184 mm (7.24 inch)
- Air Inlet: 1/4" P.T
- Net Weight: 1.2 kg (2.65 lb)
- Sound Level: 87 dB(A)
- Operating Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
Industrial Applications of Onpin OP-306SL / OP-306SLF
- Electric & Electronics Assembly: Fastening enclosures, control panels, and internal electrical assemblies.
- Motor & Hardware Manufacturing: Integration into production lines for engine components and hardware parts.
- Carpentry, Aluminum & Furniture Industries: High-efficiency screw driving in rattan products, woodworking, and aluminum frame fabrication.
