Onpin OP-301L Air Screwdriver - 4-5mm Capacity, 13000rpm, 35Nm Max Torque
The Onpin OP-301L Air Screwdriver is designed for heavy-productive industrial applications, including carpentry, electric motors, aluminum, and rattan manufacturing. Operating at a standard air pressure of 90 psi (6.2 bar), it delivers a free speed of 13,000 rpm and a maximum torque of 35 Nm (26 ft-lb) for 4~5 mm screw sizes. Featuring a lightweight 0.9 kg body, 1/4" P.T air inlet, type Q bit holder, and handle exhaust, it offers convenient one-hand operation with a forward/reverse switch. This tool ensures high efficiency and durable performance across automated and manual assembly lines.
- OP-301L
- OP-301
- OP-403LN
- 12.102.04
- 12.200.04
- 12.201.02
- 12.201.03
- 12.201.08
- 13.700.07
- 14.700.03
- 14.700.07
- 14.701.01
- 14.701.05
- 15.701.06
- 23.700.06
- 25.701.07
- 25.702.02
- 27.602.01
- 28.603.03
- 34.705.01
- 35.706.02
- 36.303.05
- 36.902.03
- 40.904.01
- 45.706.08
- 46.503.09
- 47.503.04
- 48.503.04
- 49.503.02
- 50.701.02
- 51.703.01
- 53.702.01
- 61.403.01
- 61.501.02
- 62.501.03
- 62.702.05
- 64.701.02
- 75.701.01
- 84.705.05
- 85.604.01
- 89.609.08
- industrial air screwdriver
- pneumatic screwdriver 13000rpm
- air impact screwdriver
- inline air screwdriver
- Onpin pneumatic tools
Design file download links:
PDF fileDescription

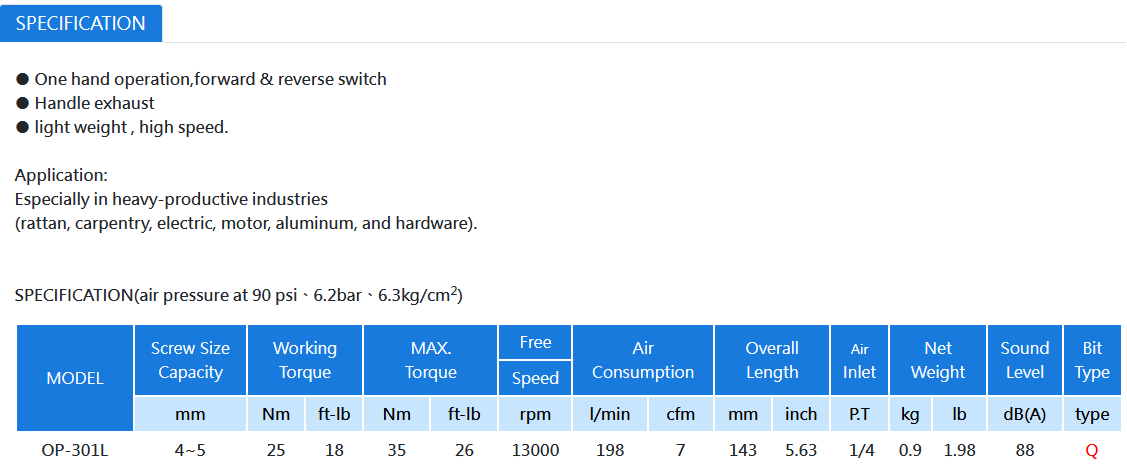

Specification OP-301L:
The Onpin OP-301L is an industrial-grade inline air screwdriver designed for high-efficiency screw fastening and unfastening operations. Powered by a standard compressed air pressure of 90 psi (6.2 bar / 6.3 kg/cm²), it converts pneumatic energy into high rotational torque for quick and accurate assembly.
Key Features of Onpin OP-301L
- One-Hand Operation: Integrated with a convenient forward & reverse switch for effortless single-handed directional changes.
- Handle Exhaust System: Directs exhaust air away through the handle base to keep the working area clean and protect the operator.
- Lightweight & High Speed: Engineered with a compact light weight, high speed design to maximize productivity while minimizing operator fatigue.
Technical Specifications of Onpin OP-301L
- Brand: Onpin
- Model: OP-301L
- Screw Size Capacity: 4~5 mm
- Working Torque: 25 Nm / 18 ft-lb
- MAX. Torque: 35 Nm / 26 ft-lb
- Free Speed: 13,000 rpm
- Air Consumption: 198 l/min / 7 cfm
- Overall Length: 143 mm / 5.63 inch
- Air Inlet: 1/4" P.T
- Net Weight: 0.9 kg / 1.98 lb
- Sound Level: 88 dB(A)
- Bit Type: Type Q
- Standard Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
Industrial Applications of Onpin OP-301L
- Rattan Industry: Fastening frame structures and securing joints.
- Carpentry & Woodworking: Assembling wooden furniture, fixtures, and cabinet hardware.
- Electric & Motor Manufacturing: Fastening motor casings, housings, and electrical components.
- Aluminum & Hardware Processing: Installing aluminum window/door frames and heavy-duty metal hardware parts.
