Onpin OP-406LN Air Screwdriver - 150Nm, 8000rpm, 6mm
The Onpin OP-406LN air screwdriver operates at a standard air pressure of 90 psi (6.2 bar / 6.3 kg/cm²), specifically designed for heavy-productive industries including rattan, carpentry, electric, motor, aluminum, and hardware. The tool delivers a maximum torque of 150 Nm (111 ft-lb), a working torque of 50 Nm (37 ft-lb), and a free speed of 8,000 rpm with a 6 mm screw size capacity. Featuring one-hand operation with a forward & reverse switch, handle exhaust, and a quick chuck (Bit Type Q) for easy bit replacement, it ensures reliable fastening performance. The unit has an overall length of 165 mm (6.5 inch), a net weight of 1.2 kg (2.65 lb), air consumption of 212 l/min (7.5 cfm), sound level of 87 dB(A), and a 1/4" P.T air inlet.
- Onpin OP series
- OP-406LN
- air screwdriver
- pneumatic screwdriver
- industrial air screwdriver
- pneumatic screw driver tool
- air impact screwdriver
Design file download links:
PDF fileDescription

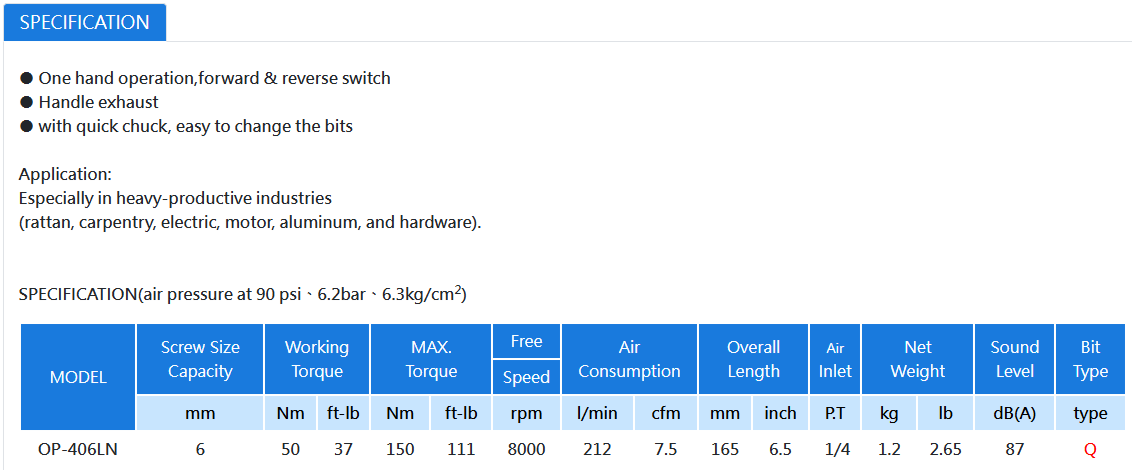

Specification OP-406LN:
The Onpin OP-406LN Air Screwdriver is an industrial pneumatic fastening tool operating at a standard air pressure of 90 psi / 6.2 bar / 6.3 kg/cm². Powered by compressed air, it generates high rotation speed and strong torque for quick, accurate screw driving and maximized working efficiency.
Key Features of Onpin OP-406LN
- One Hand Operation & Forward/Reverse Switch: Integrated forward & reverse switch design allows convenient one-handed directional control.
- Handle Exhaust System: Features handle exhaust to direct air flow away from the operator and keep the work area clean.
- High Speed & High Torque: Delivers a free speed of 8,000 rpm and a maximum torque of 150 Nm (111 ft-lb) for heavy-duty applications.
- Quick Chuck Mechanism: Equipped with a quick chuck design (Bit Type Q) for quick and easy bit replacement.
- Compact & Lightweight Design: Overall length of 165 mm (6.5 inch) and net weight of 1.2 kg (2.65 lb) reduce operator fatigue during long working hours.
Technical Specifications of Onpin OP-406LN
- Model: OP-406LN
- Screw Size Capacity: 6 mm
- Working Torque: 50 Nm (37 ft-lb)
- MAX. Torque: 150 Nm (111 ft-lb)
- Free Speed: 8,000 rpm
- Air Consumption: 212 l/min (7.5 cfm)
- Overall Length: 165 mm (6.5 inch)
- Air Inlet: 1/4" P.T
- Net Weight: 1.2 kg (2.65 lb)
- Sound Level: 87 dB(A)
- Bit Type: Type Q
- Operating Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
Industrial Applications of Onpin OP-406LN
- Electric & Electronics Assembly: Fastening threaded components in electrical equipment assembly.
- Motor & Hardware Manufacturing: Integration into assembly lines for motor parts and hardware fittings.
- Carpentry, Aluminum & Furniture Industries: High-efficiency screw driving in rattan goods, woodworking, and aluminum frame fabrication.
