Onpin OP-100LA1 Air Screwdriver - Bit Type Q, Capacity 8mm, 300Nm

Specification OP-100LA1:

The Onpin OP-100LA1 Air Screwdriver is a heavy-duty industrial pneumatic fastening tool operating under a rated air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). It converts compressed air power into high-torque rotation, reaching a free speed of 4,800 rpm and a maximum torque output of 300 Nm for efficient assembly operations.

Key Features of Onpin OP-100LA1

1. One-hand operation: Equipped with a forward & reverse switch for seamless, single-handed direction control.
2. Alloy steel cylinder: Built with an alloy steel material cylinder to endure rigorous continuous industrial use.
3. Oil-in-the-front cap design: Features front-cap lubrication capability for reduced wear and extended long performance life.
4. Screw-fixed body structure: The front cap and body are securely fixed by screws to prevent loosening during long working hours.
5. Side exhaust system: Directs exhaust air sideways, away from the operator and work surface.

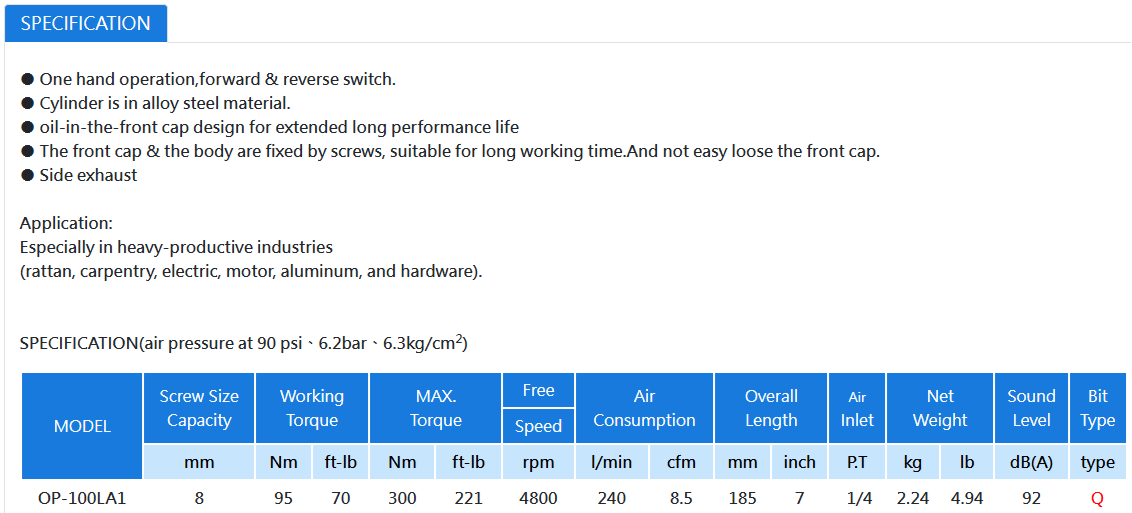

Technical Specifications of Onpin OP-100LA1

1. Model: OP-100LA1
2. Screw Size Capacity: 8 mm
3. Working Torque: 95 Nm (70 ft-lb)
4. MAX. Torque: 300 Nm (221 ft-lb)
5. Free Speed: 4,800 rpm
6. Air Consumption: 240 l/min (8.5 cfm)
7. Overall Length: 185 mm (7 inch)
8. Air Inlet: 1/4 P.T
9. Net Weight: 2.24 kg (4.94 lb)
10. Sound Level: 92 dB(A)
11. Bit Type: Type Q
12. Operating Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²

Industrial Applications of Onpin OP-100LA1

1. Woodworking & Rattan Industries: Applied for structural joint fastening in rattan crafts and carpentry manufacturing.
2. Electrical & Motor Manufacturing: Ideal for continuous screw driving in electric appliance lines and motor production.
3. Hardware & Aluminum Processing: Designed for heavy fastening in aluminum frame assembly and industrial hardware components.
