/ Onpin Air Screwdriver OP-310LQ / OP-310LF - Max Torque 240Nm, 7700RPM, Capacity 6-8mm
Onpin Air Screwdriver OP-310LQ / OP-310LF - Max Torque 240Nm, 7700RPM, Capacity 6-8mm
The Onpin OP-310LQ / OP-310LF Air Screwdriver is engineered for heavy-duty industrial applications including hardware, carpentry, electric, and motor assembly. It delivers a maximum torque of 240 Nm and a free speed of 7,700 rpm, efficiently handling screw sizes ranging from 6 to 8 mm. Featuring an alloy steel motor set, a 4-stage air regulator knob, and a one-hand forward/reverse switch, this tool ensures high durability and continuous operation. Operating at standard 90 psi (6.2 bar) air pressure with an air consumption of 240 l/min, it weighs just 1.38 kg for optimal ergonomics.
- OP-310
- OP-310L
- OP-310LQ
- OP-310LF
- onpin air screwdriver
- pneumatic impact screwdriver
- air screwdriver 240nm
- industrial air screwdriver
- air torque screwdriver 6-8mm
Design file download links:
PDF fileDescription

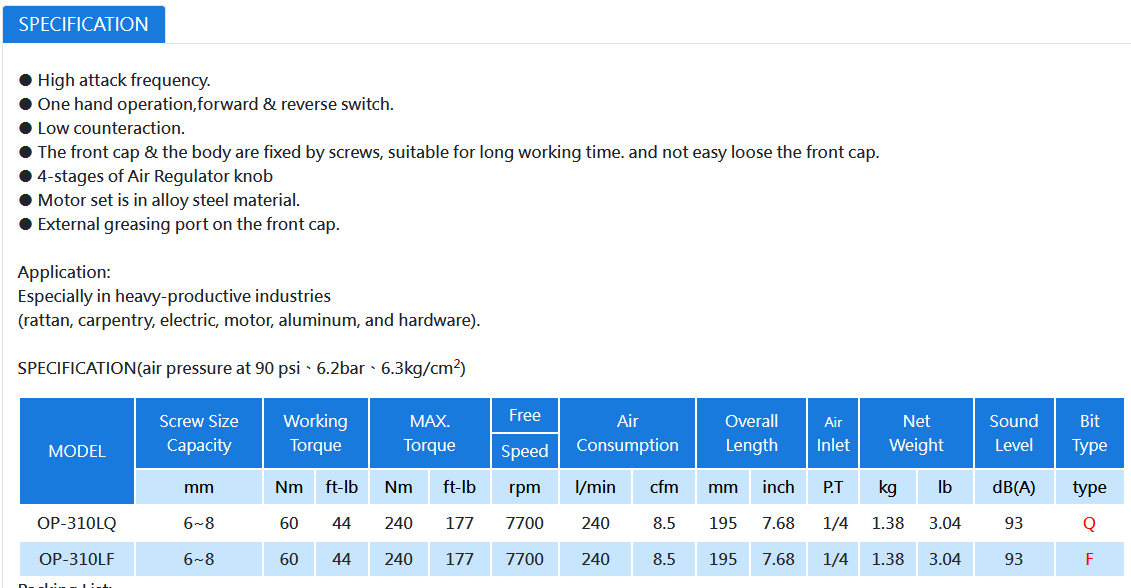

Specification OP-310LQ , OP-310LF:
The Onpin OP-310LQ / OP-310LF Air Screwdriver is a heavy-duty industrial pneumatic fastening tool operating at a standard air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). It converts compressed air into mechanical energy via an alloy steel motor set, utilizing a high-frequency impact mechanism to deliver robust torque output for fast and precise screw driving in demanding production line environments.
Key Features of Onpin OP-310LQ / OP-310LF
- High Attack Frequency & Low Counteraction: Designed with a high attack frequency for rapid fastening, combined with low counteraction to minimize recoil impact on the operator.
- One-Hand Operation: Features an integrated forward & reverse switch for effortless directional control using one hand operation.
- Heavy-Duty Construction: Engineered with a motor set in alloy steel material for extended durability; the front cap and body are securely fixed by screws to sustain long working hours without loosening.
- 4-Stage Air Regulator: Equipped with a 4-stages Air Regulator knob to allow precise air volume and power adjustment.
- External Maintenance: Includes an external greasing port on the front cap for quick and hassle-free lubrication maintenance.
- Versatile Bit Options: Available in two bit chuck configurations: Bit Type Q (OP-310LQ) and Bit Type F (OP-310LF).
Technical Specifications of Onpin OP-310LQ / OP-310LF
- Model: OP-310LQ (Bit Type Q) / OP-310LF (Bit Type F)
- Screw Size Capacity: 6 ~ 8 mm
- Working Torque: 60 Nm (44 ft-lb)
- MAX. Torque: 240 Nm (177 ft-lb)
- Free Speed: 7,700 rpm
- Air Consumption: 240 l/min (8.5 cfm)
- Overall Length: 195 mm (7.68 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 1.38 kg (3.04 lb)
- Sound Level: 93 dB(A)
- Operating Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
Industrial Applications of Onpin OP-310LQ / OP-310LF
- Woodworking & Furniture Manufacturing: Ideal for fastening applications in rattan production and carpentry workshops.
- Electrical & Motor Assembly Lines: Used for repetitive screw driving in electric device manufacturing and motor assembly.
- Hardware & Aluminum Fabrication: Suited for continuous fastening tasks in hardware part production and aluminum frame assembly.
