/ Onpin Air Screwdriver OP-328LQ / OP-328LF - Max 240Nm, 8000RPM, 6-8mm
Onpin Air Screwdriver OP-328LQ / OP-328LF - Max 240Nm, 8000RPM, 6-8mm
The Onpin OP-328LQ / OP-328LF Air Screwdriver is engineered for heavy-productive industries, including hardware, carpentry, motor, and aluminum manufacturing. Delivering a maximum torque of 240 Nm and a free speed of 8000 rpm, it efficiently handles screw capacities from 6 to 8 mm. Featuring a lightweight 1.24 kg design, a 360-degree rotating handle exhaust, one-hand forward/reverse operation, and a spring balancer hook, it maximizes operator efficiency and safety. The tool operates standardly at 90 psi (6.2 bar) air pressure with an air consumption rate of 254 l/min.
- OP-328
- OP-328L
- OP-328LQ
- OP-328LF
- onpin air screwdriver
- pneumatic impact screwdriver 240nm
- heavy duty air screwdriver 8000rpm
- industrial air impact screwdriver 6-8mm
- pneumatic screwdriver 1/4 pt
Design file download links:
PDF fileDescription
Specification OP-328LQ , OP-328LF:
The Onpin OP-328LQ / OP-328LF Air Screwdriver is a heavy-duty industrial pneumatic fastening tool operating at a standard air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). It converts compressed air into mechanical power through an alloy steel motor set, driving a high-frequency impact mechanism to deliver up to 240 Nm of torque output for fast and precise screw driving in high-demand production lines.
Key Features of Onpin OP-328LQ / OP-328LF
- High attack frequency: Provides rapid impact efficiency to significantly decrease fastening cycle times on assembly lines.
- One-hand operation: Built with an intuitive forward & reverse switch allowing operators to change rotation direction effortlessly with one hand.
- Alloy steel motor set: Constructed with premium alloy steel material to ensure exceptional durability and resistance against continuous heavy wear.
- 360 degree rotate handle exhaust: Directs exhaust air away from the operator and the workpiece for enhanced working comfort and safety.
- Spring balancer hook design: Features an integrated hook for easy mounting on spring balancers, reducing operator fatigue and increasing overall workplace efficiency.
- Flexible bit options: Available in two bit chuck configurations: Bit Type Q (OP-328LQ) and Bit Type F (OP-328LF).

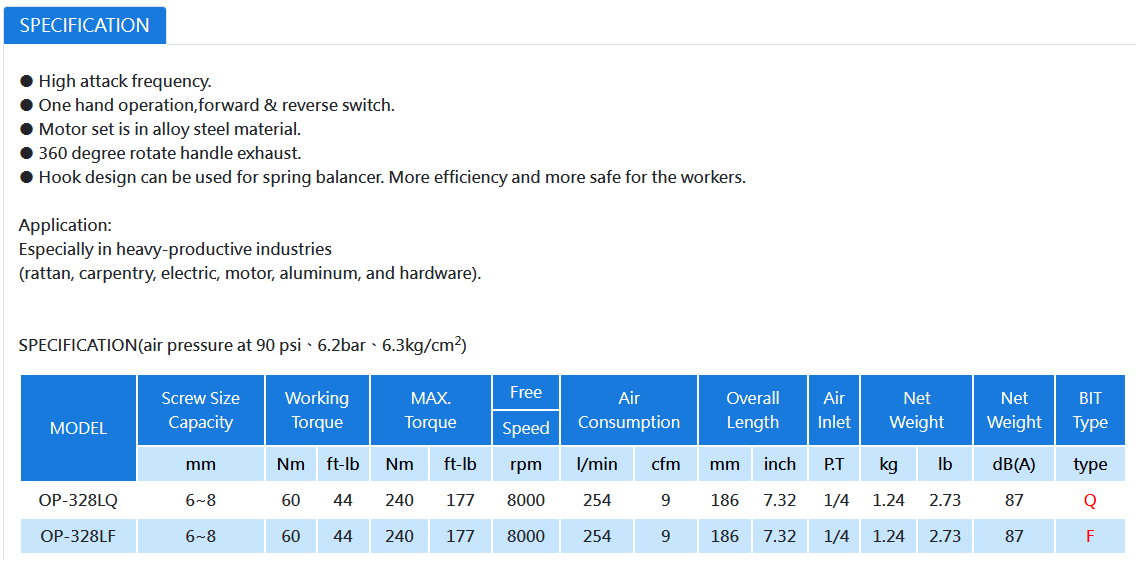

Technical Specifications of Onpin OP-328LQ / OP-328LF
- Model: OP-328LQ (Bit Type Q) / OP-328LF (Bit Type F)
- Screw Size Capacity: 6 ~ 8 mm
- Working Torque: 60 Nm (44 ft-lb)
- MAX. Torque: 240 Nm (177 ft-lb)
- Free Speed: 8,000 rpm
- Air Consumption: 254 l/min (9 cfm)
- Overall Length: 186 mm (7.32 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 1.24 kg (2.73 lb)
- Sound Level: 87 dB(A)
- Operating Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
Industrial Applications of Onpin OP-328LQ / OP-328LF
- Woodworking & Furniture Manufacturing: Ideal for structural fastening in rattan weaving and carpentry applications.
- Electrical & Motor Assembly: Specialized for repetitive screw driving in electric appliance lines and motor manufacturing.
- Hardware & Aluminum Fabrication: Well-suited for heavy fastening in aluminum frame processing and hardware component production.
