/ Onpin Air Screwdriver OP-601A - Screw Size 4-5mm, Max Torque 35Nm, Free Speed 13000rpm
Onpin Air Screwdriver OP-601A - Screw Size 4-5mm, Max Torque 35Nm, Free Speed 13000rpm
The Onpin OP-601A Air Screwdriver is engineered for heavy-productive industries including hardware, motor, aluminum, electric, carpentry, and rattan manufacturing. Featuring a compact 155 mm length and a lightweight 0.86 kg body, it incorporates a quick-change chuck (Type Q) and handle exhaust for smooth operation. Powered by 90 psi (6.2 bar) air pressure, it delivers a high free speed of 13,000 rpm, a maximum torque of 35 Nm, and capacity for 4~5 mm screws. The tool operates with a 1/4" P.T air inlet, consumes 170 l/min of air, and maintains a low sound level of 82 dB(A).
- OP-601A
- 12.213.14
- 13.311.18
- 14.311.13
- 14.811.15
- 14.811.18
- 15.811.14
- 15.812.15
- 15.813.15
- 15.813.16
- 17.812.21
- 19.812.15
- 21.812.12
- 23.811.17
- 24.813.12
- 26.812.18
- 26.813.13
- 28.815.12
- 31.813.12
- 35.813.23
- 36.612.13
- 42.814.12
- 45.817.19
- 47.614.14
- 48.614.13
- 49.614.12
- 49.561.41
- 51.812.13
- 52.814.12
- 54.813.12
- 62.513.19
- 62.612.13
- 62.813.13
- 63.612.14
- 63.812.13
- 63.812.28
- 63.813.16
- 65.812.13
- 85.817.16
- 86.715.12
- 89.719.19
- air impact screwdriver
- inline pneumatic screwdriver
- Onpin air screwdriver
- industrial pneumatic tool
- high speed air screwdriver
Design file download links:
PDF fileDescription

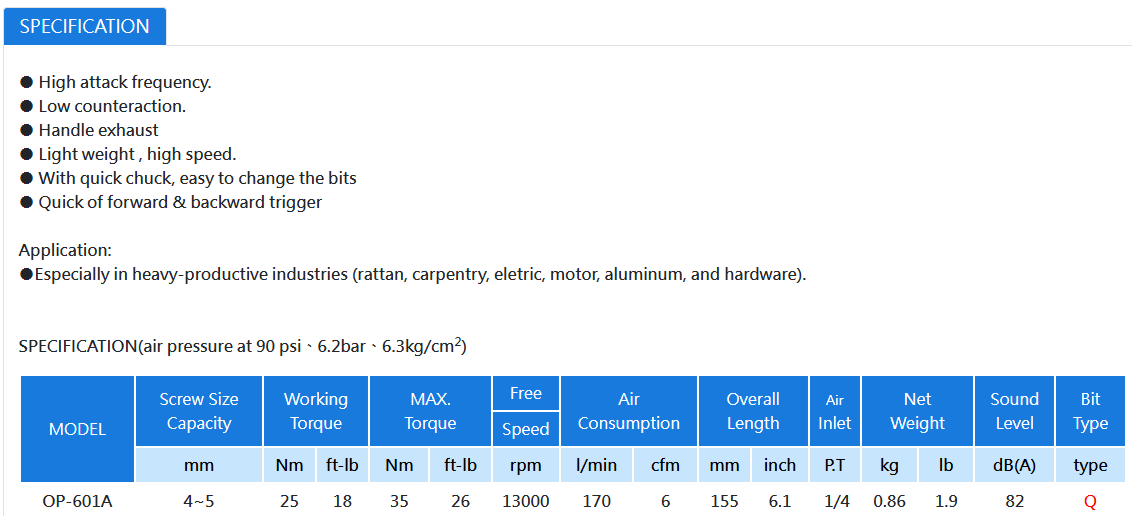

Specification OP-601A:
The Onpin OP-601A Air Screwdriver is an industrial pneumatic fastening tool powered by compressed air at a standard operating pressure of 90 psi (6.2 bar). It operates via a high-frequency impact mechanism designed for rapid driving and removal of threaded fasteners while delivering low counteraction to the operator.
Key Features of Onpin OP-601A
- High Attack Frequency & Low Counteraction: Maximizes driving speed while minimizing kickback torque and operator fatigue during continuous duty cycles.
- Handle Exhaust System: Directs working air exhaust away from the workpiece to keep the assembly area clean.
- Quick-Change Chuck (Type Q): Allows fast, tool-free bit replacements to streamline workflow transitions.
- Instant Reversing Trigger: Features a quick forward/backward switch for seamless directional changes.
- Ultra-Compact Design: Weighs only 0.86 kg with an overall length of 155 mm for easy maneuverability in confined spaces.
Technical Specifications of Onpin OP-601A
- Screw Size Capacity: 4~5 mm
- Working Torque: 25 Nm (18 ft-lb)
- MAX. Torque: 35 Nm (26 ft-lb)
- Free Speed: 13,000 rpm
- Air Consumption: 170 l/min (6 cfm)
- Overall Length: 155 mm (6.1 inch)
- Air Inlet: 1/4" P.T
- Net Weight: 0.86 kg (1.9 lb)
- Sound Level: 82 dB(A)
- Bit Type: Type Q
- Operating Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
Industrial Applications of Onpin OP-601A
- Electrical & Electronics Assembly: Fastening housing screws, enclosures, and internal electrical components.
- Motor & Hardware Manufacturing: Integration into assembly lines for light-to-medium mechanical components.
- Carpentry, Aluminum & Rattan Industries: High-speed screw driving in aluminum frame fabrication, woodworking, and rattan furniture production.
