/ Air Screwdriver Onpin OP-302L90 - Auto Clutch, Max Torque 2.5Nm, 1650rpm
Air Screwdriver Onpin OP-302L90 - Auto Clutch, Max Torque 2.5Nm, 1650rpm
The Onpin OP-302L90 Air Screwdriver is designed to release or fasten high-precise 5mm screws in industries such as toy, electric, carpentry, and plastic manufacturing. Featuring a torque regulator, it operates at a max torque of 2.5 Nm and a free speed of 1650 rpm, with an automatic clutch mechanism to prevent workpiece damage. It boasts a compact structure with a length of 235mm, weight of 0.76kg, one-hand forward/reverse operation with a self-locking switch, and a 360-degree adjustable exhaust bushing.
- OP-302L90
- OP-302L90 1/4#
- 12.104.12
- 13.300.14
- 18.402.12
- 13.300.19
- 13.302.14
- 14.700.12
- 14.700.17
- 14.700.15
- 15.701.12
- 15.701.15
- 16.701.19
- 13.300.16
- 25.702.12
- 17.701.24
- 26.702.14
- 21.701.12
- 22.702.12
- 26.701.15
- 26.702.13
- 76.701.12
- 26.702.20
- 26.702.27
- 27.701.15
- 27.702.12
- 28.709.12
- 16.701.17
- 32.502.12
- 17.701.19
- 36.702.19
- 37.404.14
- 42.706.12
- 46.708.12
- 47.502.13
- 48.502.13
- 49.504.14
- 21.701.12
- 49.701.20
- 49.704.12
- 58.704.17
- 59.702.13
- 61.404.15
- 61.702.14
- 62.602.12
- 62.700.12
- 63.803.12
- 63.800.12
- 63.803.14
- 49.402.13
- 84.502.12
- 85.705.17
- 85.706.17
- 86.608.17
- 87.605.12
- 89.609.12
- 92.722.12
- 92.723.12
- onpin air screwdriver
- adjustable clutch air screwdriver
- pneumatic screwdriver torque control
- inline pneumatic screwdriver
- industrial air torque screwdriver
Design file download links:
PDF fileDescription

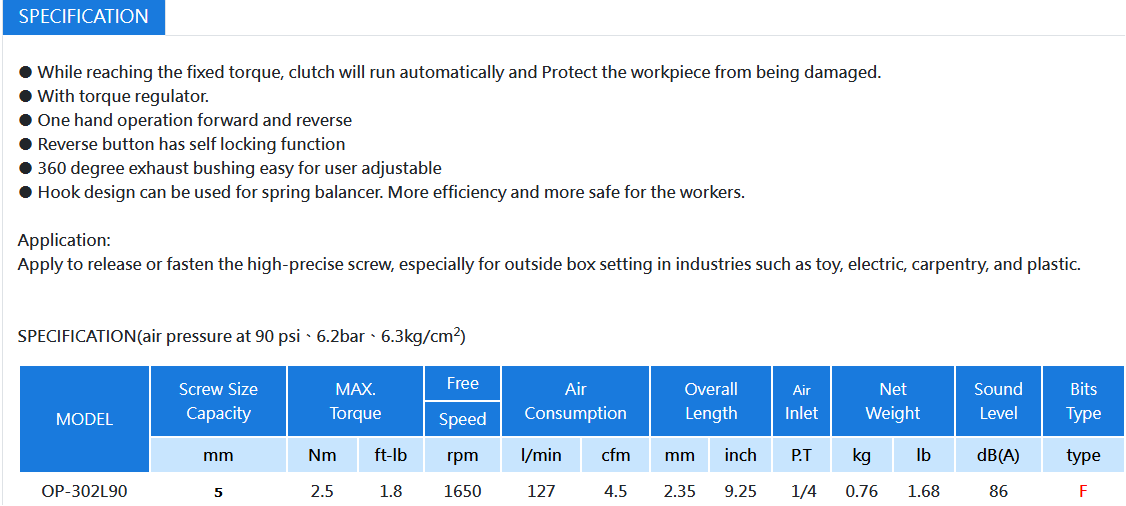

Specification OP-302L90:
The Onpin OP-302L90 is an inline pneumatic screwdriver designed for high-precision screw fastening and releasing in industrial assembly lines. Operating on an air supply of 90 psi (6.2 bar), this tool incorporates an automatic clutch mechanism to ensure accurate torque delivery while protecting the workpiece from damage.
Key Features of Onpin OP-302L90
- Automatic Clutch Run: Automatically disengages once the preset torque is reached, preventing thread stripping and workpiece damage.
- Integrated Torque Regulator: Allows operators to adjust torque settings easily for various assembly requirements.
- One-Hand Forward/Reverse Operation: Built-in reverse button features a self-locking function for quick and safe directional control.
- 360-Degree Exhaust Bushing: Fully adjustable exhaust directing air away from the user for maximum comfort.
- Spring Balancer Hook: Built-in hook design compatible with spring balancers, improving ergonomics and reducing operator fatigue.
Technical Specifications of Onpin OP-302L90
- Brand: Onpin
- Model: OP-302L90
- Screw Size Capacity: 5 mm
- MAX. Torque: 2.5 Nm / 1.8 ft-lb
- Free Speed: 1650 rpm
- Air Consumption: 127 l/min / 4.5 cfm
- Overall Length: 235 mm / 9.25 inch
- Air Inlet: 1/4" P.T
- Net Weight: 0.76 kg / 1.68 lb
- Sound Level: 86 dB(A)
- Bits Type: Type F
- Standard Operating Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
Industrial Applications of Onpin OP-302L90
- Electrical & Electronic Assembly: Fastening delicate components and enclosures with controlled precision.
- Carpentry & Woodworking: Installing small hardware fasteners into wooden assemblies.
- Toy & Plastic Industries: Outside box setting and securing precise fasteners without cracking plastic parts.
