Onpin OP-403LN Air Screwdriver - 4mm Capacity, 11500 RPM, 30Nm Max Torque
The Onpin OP-403LN air screwdriver is designed for heavy-productive industries including carpentry, electric, motor, aluminum, and hardware applications. It features a 4mm screw capacity, delivering a free speed of 11,500 RPM, a maximum torque of 30 Nm, and air consumption of 170 l/min at 90 psi. Equipped with a built-in comfort grip, 360-degree handle exhaust, one-hand forward/reverse switch, and a spring balancer hook, it ensures maximum operator safety and efficiency.
- Onpin OP Series
- Onpin OP-302
- Onpin OP-403
- OP-302L90
- OP-403LN
- Onpin air screwdriver
- pneumatic screwdriver industrial
- heavy duty air screwdriver
- industrial pneumatic torque tool
- Onpin pneumatic tools supplier
Design file download links:
PDF fileDescription
Specification OP-403LN:
The Onpin OP-403LN is an industrial-grade inline air screwdriver designed for high-efficiency screw fastening and unfastening applications. Powered by a standard compressed air pressure of 90 psi (6.2 bar / 6.3 kg/cm²), it utilizes a two-hammer impact structure to deliver consistent torque performance.
Key Features of Onpin OP-403LN
- Built-in Comfort Grip: Ergonomically engineered handle ensures a firm hold and significantly reduces operator fatigue during extended operation.
- 360-Degree Handle Exhaust: Exhaust cover can be rotated 360 degrees to direct exhaust air away from the operator.
- Spring Balancer Hook Design: Features an integrated hanging hook optimized for spring balancers, enhancing workstation safety and operating efficiency.
- One-Hand Forward & Reverse Control: Easy-to-access switch lever allows effortless one-handed directional shifting.

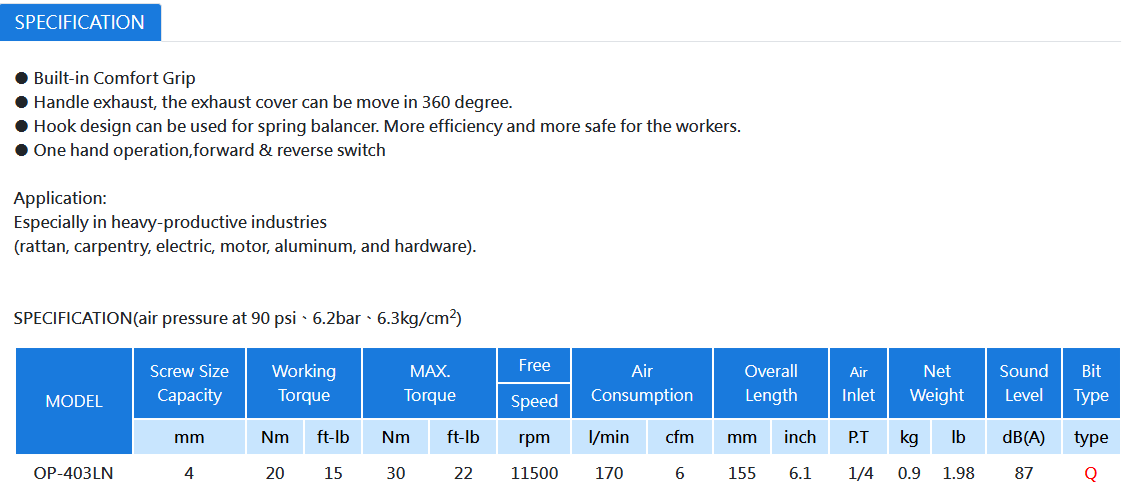

Technical Specifications of Onpin OP-403LN
- Brand: Onpin
- Model: OP-403LN
- Screw Size Capacity: 4 mm
- Working Torque: 20 Nm / 15 ft-lb
- MAX. Torque: 30 Nm / 22 ft-lb
- Free Speed: 11,500 rpm
- Air Consumption: 170 l/min / 6 cfm
- Overall Length: 155 mm / 6.1 inch
- Air Inlet: 1/4" P.T
- Net Weight: 0.9 kg / 1.98 lb
- Sound Level: 87 dB(A)
- Bit Type: Type Q
- Standard Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
Industrial Applications of Onpin OP-403LN
- Rattan Industry: Securing fasteners and frame connectors.
- Carpentry & Woodworking: Fastening small screws on wooden furniture and fixtures.
- Electric & Motor Manufacturing: Assembling motor housings, electric components, and appliance casings.
- Aluminum & Hardware Processing: Joining aluminum structures and heavy-duty metal hardware parts.
