Onpin OP-5C5415 Air Screwdriver - Auto Clutch 4Nm, 1500RPM, 5mm Capacity
The Onpin OP-5C5415 air screwdriver is designed for high-precision screw releasing and fastening in electronics, toys, carpentry, and plastics manufacturing. It features an automatic running clutch to protect workpieces from damage and an adjustable torque regulator delivering up to 4 Nm. Operating at 90 psi (6.2 bar), it features a free speed of 1500 rpm, 5 mm screw capacity, and air consumption of 212 l/min. Weighing 1 kg with an overall length of 190 mm, its built-in hook design supports spring balancer integration for maximum operating efficiency.
- Onpin OP-5C
- OP-5C5415
- pneumatic screwdriver
- air screwdriver 4Nm
- auto clutch air screwdriver
- Onpin air screwdriver
- industrial pneumatic screwdriver
Design file download links:
PDF fileDescription

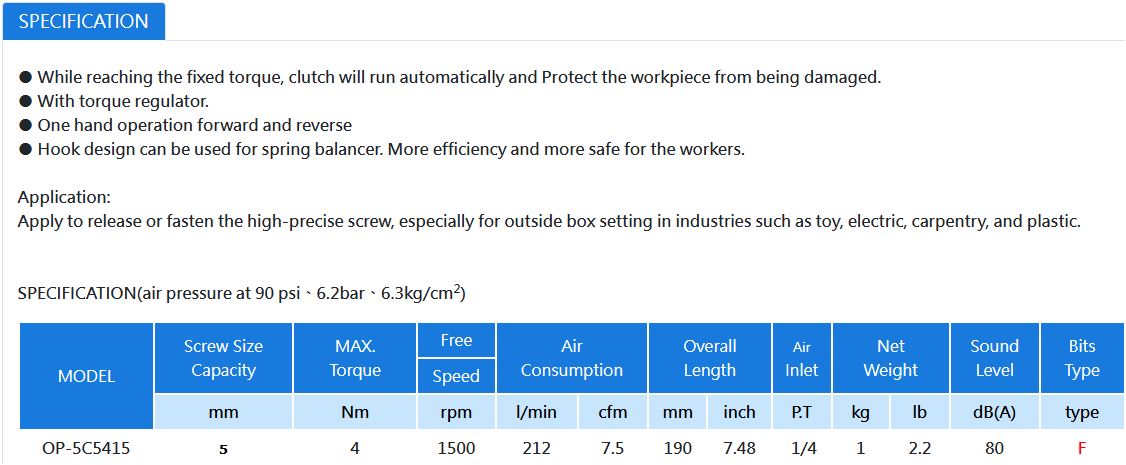

Specification OP-5C5415:
The Onpin OP-5C5415 air screwdriver is a precision pneumatic fastening tool operating at an air pressure of 90 psi (6.2 bar), featuring an automatic shut-off clutch system. It is engineered to streamline high-speed fastening cycles, prevent workpiece damage, and guarantee consistent torque accuracy across industrial assembly line operations.
Key Features of Onpin OP-5C5415
- Auto Shut-off Clutch Mechanism: Disengages air supply immediately upon reaching preset torque, preventing thread stripping and material cracking.
- Adjustable Torque Regulator: Allows precise torque adjustments up to 4 Nm to meet various component assembly specs.
- High Free Speed: Delivers a no-load speed of 1500 rpm for maximized cycle time efficiency on continuous production lines.
- One-Handed Reversible Control: Features an intuitive forward/reverse switch designed for effortless single-handed operation.
- Suspension Hook Design: Built-in top hook enables direct integration with spring balancers to eliminate operator fatigue.
- Low Noise Emission: Operates at a quiet noise output of 80 dB(A), enhancing ergonomics in shop floor environments.
Technical Specifications of Onpin OP-5C5415
- Brand: Onpin
- Model: OP-5C5415
- Screw Capacity: 5 mm
- MAX Torque: 4 Nm
- Free Speed: 1500 rpm
- Air Consumption: 212 l/min (7.5 cfm)
- Overall Length: 190 mm (7.48 in)
- Air Inlet: 1/4 P.T
- Bits Type: type F
- Net Weight: 1 kg (2.2 lb)
- Operating Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Sound Level: 80 dB(A)
Industrial Applications of Onpin OP-5C5415
- Electronics Assembly: Precision screw driving for PCB boards and sensitive device casings.
- Plastics & Toys Manufacturing: Fastening delicate plastic housings without causing stress cracks or overtightening.
- Woodworking & Furniture: Securing hardware and thin wooden components.
- Home Appliance Production: High-volume assembly lines for residential appliances and light mechanical assemblies.
