/ Air Angle Nutrunner Wrench Onpin OP-AN711044 Series 1/2" - M8, 17~30 Nm, 450 rpm
Air Angle Nutrunner Wrench Onpin OP-AN711044 Series 1/2" - M8, 17~30 Nm, 450 rpm
The Onpin OP-AN711044 air angle nutrunner wrench is a specialized tool engineered with low air consumption, high torque, and energy-saving performance. It features an adjustable torque design along with a start lever that automatically stops all parts from working once the target torque is reached. Operating at an air pressure of 90 psi (6.2 bar), the tool supports an M8 bolt capacity, delivering a torque range of 17~30 Nm and a free speed of 450 rpm. It is specifically designed to release or fasten heavy nuts, making it ideal for industrial assembly lines such as automotive, bicycle, and electric vehicle manufacturing.
- OP-AN711044
- AN711044
- 01-103-09
- 02-200-03
- 02-201-01
- 02-202-03
- 03-700-04
- 03-700-05
- 04-700-03
- 04-700-07
- 04-701-02
- 04-702-17
- 04-702-18
- 05-702-03
- 06-700-07
- 06-701-02
- 06-701-21
- 06-702-08
- 08-700-07
- 08-703-01
- 09-701-01
- 09-702-01
- 09-702-05
- 09-703-02
- 10-701-02
- 10-701-04
- 13-700-03
- 13-701-20
- 15-700-02
- 15-701-04
- 15-701-14
- 15-702-03
- 15-702-10
- 15-702-16
- 15-703-01
- 15-703-02
- 15-703-10
- 16-700-09
- 16-701-11
- 16-701-21
- 17-707-01
- 18-704-03
- 21-700-01
- 21-702-01
- 24-302-01
- 25-704-09
- 26-703-05
- 32-713-08
- 35-707-18
- 36-703-08
- 37-703-04
- 38-703-03
- 39-701-08
- 39-703-10
- 39-703-11
- 45-703-05
- 48-704-09
- 48-705-06
- 49-702-23
- 49-702-25
- 51-401-05
- 51-702-09
- 51-702-10
- 51-703-26
- 52-301-01
- 52-600-01
- 52-701-28
- 52-701-29
- 52-702-48
- 52-702-54
- 52-702-55
- 52-702-56
- 52-703-04
- 52-703-05
- 55-701-01
- 56-700-01
- 63-701-01
- 74-703-09
- 74-704-29
- 74-709-06
- 74-709-07
- 75-707-03
- 76-711-02
- 78-607-05
- 78-705-01
- air angle nutrunner wrench
- pneumatic angle nutrunner
- air angle wrench op-an711044
- onpin angle nutrunner
- air shut off nutrunner
Design file download links:
PDF fileDescription
Specification
What is Onpin OP-AN711044?
The OP-AN711044 air angle nutrunner wrench is a specialized pneumatic tool engineered with low air consumption, high torque, and energy-saving performance. It features an adjustable torque design along with a start lever that automatically stops all parts from working once the target torque is reached.
Key Features of Onpin OP-AN711044
- Air angle nutrunner wrench featuring low air consumption, high torque, and energy saving.
- Designed with an adjustable torque mechanism.
- Equipped with a start lever to automatically halt all operations upon reaching the specified torque.

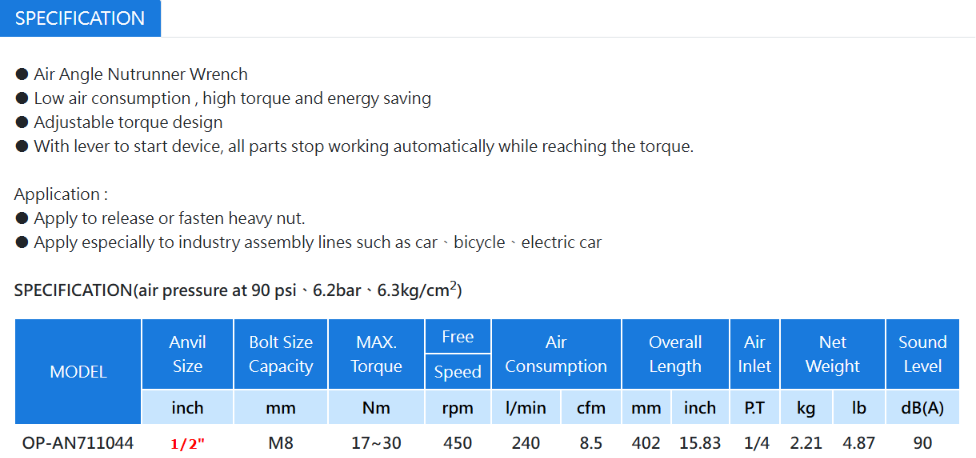

Technical Specifications of Onpin OP-AN711044
- Model: OP-AN711044
- Anvil Size: 1/2"
- Bolt Size Capacity: M8
- MAX. Torque: 17~30 Nm
- Free Speed: 450 rpm
- Air Consumption: 240 l/min (8.5 cfm)
- Overall Length: 402 mm (15.83 inch)
- Air Inlet P.T: 1/4"
- Net Weight: 2.21 kg (4.87 lb)
- Sound Level: 90 dB(A)
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
Industrial Applications of Onpin OP-AN711044
- Applied to release or fasten heavy nuts.
- Specially suited for industrial assembly lines such as cars, bicycles, and electric cars.
