Torque Control Air Wrench Onpin OP-5SLB15 Series 3/8" - M4, 1.2-2.4 Nm, 1450 rpm
The Onpin OP-5SLB15 torque control air wrench operates at 90 psi (6.2 bar) air pressure, featuring a torque regulator and an automatic clutch mechanism that runs upon reaching the fixed torque to safeguard the workpiece from damage. It supports M4 bolt capacity, delivering a maximum torque of 1.2-2.4 Nm, a free speed of 1450 rpm, and a net weight of 1.22 kg. Designed with a self-locking reverse button, convenient one-hand operation, and a spring balancer-compatible hook, this tool enhances both operational efficiency and worker safety.
- OP-5SLB15
- 5SLB15
- 01-103-07
- 02-200-04
- 02-201-16
- 02-203-06
- 03-700-02
- 03-700-04
- 03-700-09
- 04-700-01
- 04-700-05
- 04-700-06
- 04-700-07
- 04-701-09
- 04-701-11
- 04-702-11
- 05-701-05
- 05-701-10
- 05-702-03
- 05-702-08
- 06-701-24
- 06-702-26
- 08-701-04
- 08-702-03
- 08-703-01
- 10-701-01
- 11-701-01
- 11-702-02
- 12-700-05
- 12-701-04
- 12-701-09
- 13-700-07
- 13-700-08
- 15-701-04
- 15-701-05
- 15-701-10
- 15-702-07
- 15-702-09
- 15-702-13
- 15-702-18
- 16-700-08
- 16-701-10
- 17-707-01
- 18-703-02
- 24-302-01
- 24-703-03
- 25-704-09
- 26-703-05
- 26-902-02
- 31-707-03
- 32-708-02
- 35-705-03
- 36-702-01
- 37-502-03
- 38-703-02
- 39-702-02
- 39-702-05
- 39-703-03
- 39-703-04
- 43-703-07
- 48-703-11
- 49-702-07
- 49-702-08
- 51-309-03
- 51-401-05
- 51-401-06
- 51-402-03
- 51-603-02
- 51-702-17
- 51-702-18
- 51-705-02
- 51-705-03
- 52-300-01
- 52-301-01
- 52-302-01
- 52-701-19
- 52-701-23
- 52-702-06
- 52-702-18
- 52-702-35
- 52-702-52
- 52-702-53
- 56-702-01
- 64-400-01
- 67-701-02
- 74-703-02
- 74-704-14
- 74-708-07
- 76-705-02
- 78-614-03
- torque control air wrench
- air shut off screwdriver
- pneumatic clutch screwdriver
- air wrench op-5slb15
- onpin air screwdriver
Design file download links:
PDF fileDescription

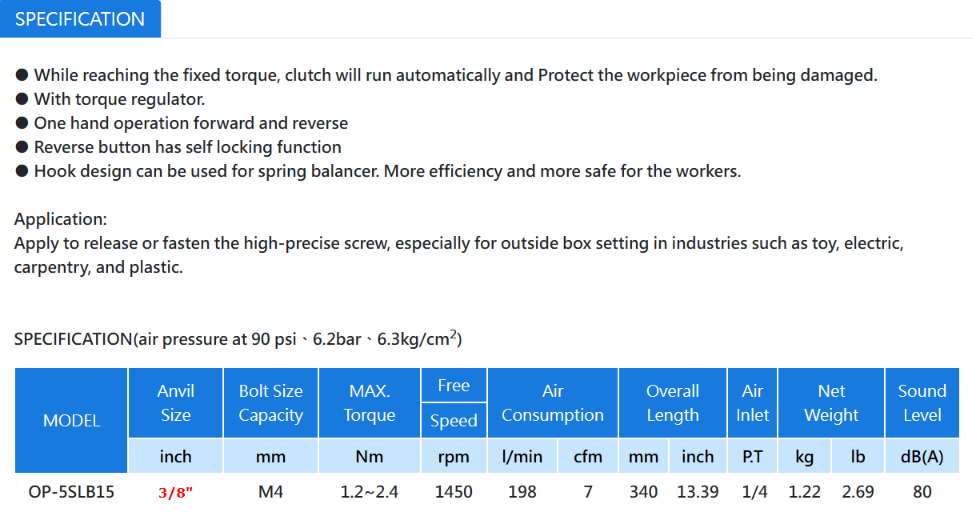

Specification
What is Onpin OP-5SLB15?
The OP-5SLB15 torque control air wrench is a specialized pneumatic tool designed to release or fasten high-precision screws. It integrates a torque regulator and an automatic clutch mechanism that runs upon reaching the fixed torque to protect the workpiece from being damaged during operation.
Key Features of Onpin OP-5SLB15
- Automatically runs the clutch upon reaching the fixed torque to safeguard the workpiece from damage.
- Equipped with an integrated torque regulator for precise fastening control.
- Designed for convenient one-hand operation in both forward and reverse directions.
- Reverse button features a built-in self-locking function for enhanced safety.
- Hook design compatible with spring balancers to deliver higher work efficiency and better safety for operators.
Technical Specifications of Onpin OP-5SLB15
- Model: OP-5SLB15
- Anvil Size: 3/8"
- Bolt Size Capacity: M4
- MAX. Torque: 1.2~2.4 Nm
- Free Speed: 1450 rpm
- Air Consumption: 198 l/min (7 cfm)
- Overall Length: 340 mm (13.39 inch)
- Air Inlet P.T: 1/4"
- Net Weight: 1.22 kg (2.69 lb)
- Sound Level: 80 dB(A)
- Operating Air Pressure: 90 psi (6.2 bar)
Industrial Applications of Onpin OP-5SLB15
- Applied for releasing or fastening high-precision screws.
- Particularly suitable for outside box setting operations.
- Widely utilized in industries such as toy manufacturing, electrical equipment, carpentry, and plastics.
