/ Adjustable Clutch Air Wrench Onpin OP-5CLB15 Series 3/8" - M5, 4 Nm, 1450 rpm
Adjustable Clutch Air Wrench Onpin OP-5CLB15 Series 3/8" - M5, 4 Nm, 1450 rpm
The Onpin OP-5CLB15 adjustable clutch air wrench operates at an air pressure of 90 psi (6.2 bar), featuring an automatic clutch mechanism that engages upon reaching the fixed torque to protect the workpiece from damage. It supports M5 bolt capacity, delivering a maximum torque of 4 Nm, a free speed of 1450 rpm, and a net weight of 1.25 kg. Designed with a torque regulator, a self-locking reverse button, and a spring balancer-compatible hook, this tool ensures enhanced work efficiency and worker safety.
- OP-5CLB15
- 5CLB15
- 01-103-07
- 02-200-04
- 02-201-16
- 02-203-06
- 03-700-02
- 03-700-04
- 04-700-01
- 04-700-06
- 04-701-09
- 04-701-11
- 04-702-11
- 05-701-05
- 05-701-10
- 05-702-03
- 06-702-21
- 08-701-04
- 08-703-01
- 10-701-01
- 11-701-01
- 12-700-05
- 12-701-04
- 13-700-07
- 13-700-08
- 15-701-04
- 15-701-05
- 15-701-10
- 15-702-05
- 15-702-07
- 15-702-13
- 16-700-08
- 16-701-10
- 17-707-01
- 18-703-02
- 19-702-08
- 24-302-01
- 25-704-09
- 26-703-05
- 26-902-02
- 31-707-03
- 35-705-04
- 36-702-01
- 37-502-03
- 38-703-02
- 39-702-02
- 39-702-05
- 39-703-03
- 39-703-04
- 48-703-11
- 49-702-07
- 49-702-08
- 51-309-03
- 51-401-05
- 51-402-03
- 51-603-02
- 51-703-11
- 51-707-03
- 52-301-01
- 52-701-19
- 52-701-23
- 52-702-15
- 52-702-18
- 52-702-35
- 52-702-38
- 52-702-52
- 52-702-53
- 64-400-01
- 67-701-02
- 74-702-07
- 74-703-02
- 74-704-14
- 74-706-09
- 76-705-02
- 78-614-04
- adjustable clutch air wrench
- air shut off screwdriver
- pneumatic clutch screwdriver
- air wrench op-5clb15
- onpin air screwdriver
Design file download links:
PDF fileDescription
Specification
What is Onpin OP-5CLB15?
The OP-5CLB15 adjustable clutch air wrench is a specialized pneumatic tool designed to release or fasten high-precision screws. It integrates an automatic clutch mechanism that runs upon reaching a fixed torque to protect the workpiece from being damaged during operation.
Key Features of Onpin OP-5CLB15
- Automatically runs the clutch upon reaching the fixed torque to safeguard the workpiece from damage.
- Equipped with an integrated torque regulator for precise fastening control.
- Designed for convenient one-hand operation in both forward and reverse directions.
- Reverse button features a built-in self-locking function for enhanced safety.
- Hook design compatible with spring balancers to deliver higher work efficiency and better safety for operators.

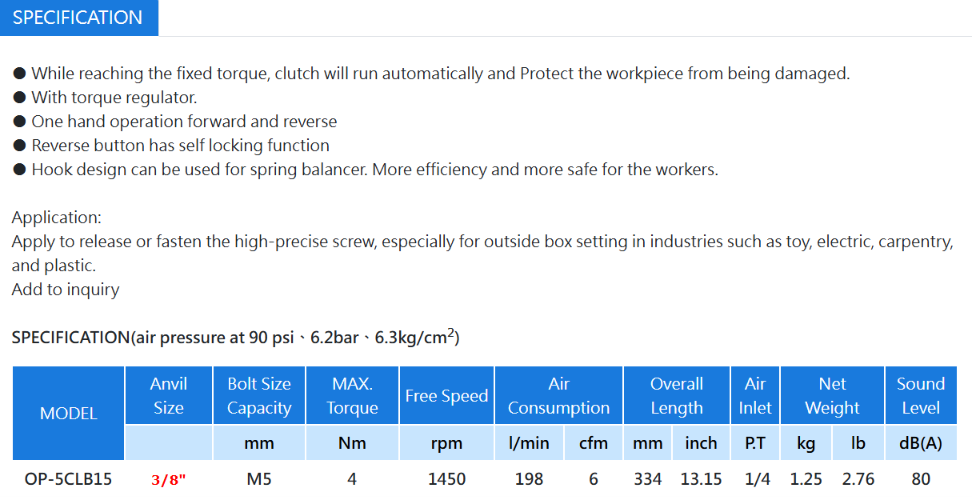

Technical Specifications of Onpin OP-5CLB15
- Model: OP-5CLB15
- Anvil Size: 3/8"
- Bolt Size Capacity: M5
- MAX. Torque: 4 Nm
- Free Speed: 1450 rpm
- Air Consumption: 198 l/min (6 cfm)
- Overall Length: 334 mm (13.15 inch)
- Air Inlet P.T: 1/4"
- Net Weight: 1.25 kg (2.76 lb)
- Sound Level: 80 dB(A)
- Operating Air Pressure: 90 psi (6.2 bar)
Industrial Applications of Onpin OP-5CLB15
- Applied for releasing or fastening high-precision screws.
- Particularly suitable for outside box setting operations.
- Widely utilized in industries such as toy manufacturing, electrical equipment, carpentry, and plastics
