/ Air Impact Wrench Onpin OP-328LB3 Series 3/8" - M12, 110-240 Nm, 8000 rpm
Air Impact Wrench Onpin OP-328LB3 Series 3/8" - M12, 110-240 Nm, 8000 rpm
The Onpin OP-328LB3 pneumatic impact wrench operates at an air pressure of 6.2 bar (90 psi) and features a high attack frequency with a durable alloy steel motor set. It supports M12 bolt capacity, delivering a working torque of 110 Nm, a maximum torque of 240 Nm, and a free speed of 8000 rpm. Designed with a net weight of 1.24 kg, an overall length of 183 mm, a 360-degree rotate handle exhaust, and a spring balancer-compatible hook, this tool enhances both work efficiency and worker safety.
- OP-328LB3
- 328LB3
- 01-104-07
- 02-200-04
- 02-200-10
- 02-201-17
- 02-202-03
- 02-202-04
- 02-203-03
- 03-700-07
- 04-700-03
- 04-701-07
- 04-703-04
- 05-700-01
- 06-700-03
- 06-702-03
- 06-702-12
- 12-700-05
- 13-701-07
- 14-701-01
- 14-702-06
- 15-702-04
- 17-705-02
- 18-603-04
- 24-702-06
- 25-704-14
- 26-302-06
- 31-703-01
- 35-708-11
- 36-703-01
- 37-703-01
- 38-704-02
- 39-701-06
- 40-702-02
- 41-703-03
- 43-702-05
- 45-503-02
- 51-701-12
- 51-702-16
- 52-702-19
- 54-701-05
- 74-706-08
- 75-605-12
- 79-608-11
- pneumatic impact wrench
- air impact wrench 3/8
- two hammer impact wrench
- air wrench op-328lb3
- onpin air impact wrench
Design file download links:
PDF fileDescription
Specification
What is Onpin OP-328LB3?
The OP-328LB3 pneumatic impact wrench is a specialized industrial tool powered by compressed air, featuring a dual-hammer mechanism designed to deliver stable and powerful torque for heavy-duty assembly lines. It converts compressed air pressure into continuous mechanical impacts, allowing technicians to fasten and loosen threaded fasteners with high precision and speed.
Key Features of Onpin OP-328LB3
- High attack frequency to accelerate fastener processing.
- One-hand operation design equipped with an accessible forward & reverse switch.
- Motor assembly constructed from durable alloy steel material.
- 360-degree rotate handle exhaust for enhanced operator convenience.
- Hook design compatible with spring balancers to ensure higher efficiency and worker safety.

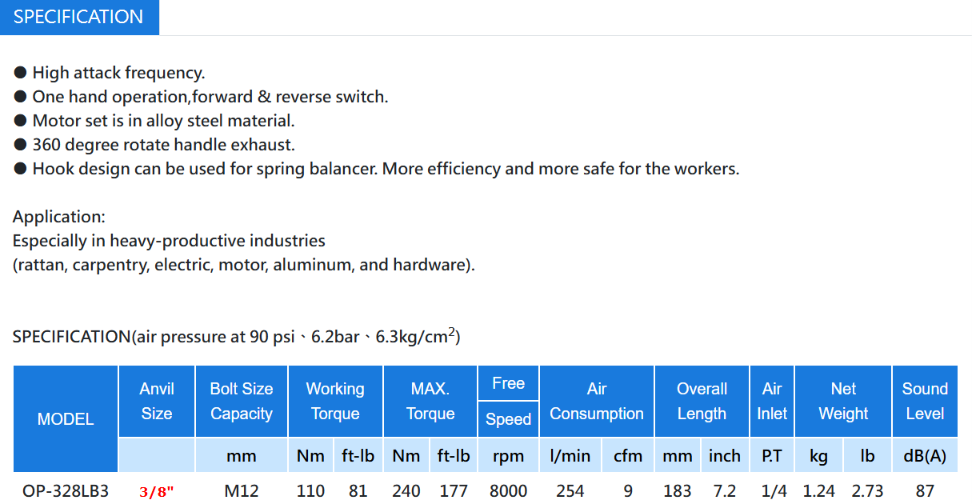

Technical Specifications of Onpin OP-328LB3
- Model: OP-328LB3
- Anvil Size: 3/8"
- Bolt Size Capacity: M12
- Working Torque: 110 Nm (81 ft-lb)
- MAX. Torque: 240 Nm (177 ft-lb)
- Free Speed: 8000 rpm
- Air Consumption: 254 l/min (9 cfm)
- Overall Length: 183 mm (7.2 inch)
- Air Inlet P.T: 1/4"
- Net Weight: 1.24 kg (2.73 lb)
- Sound Level: 87 dB(A)
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
Industrial Applications of Onpin OP-328LB3
- Heavy-productive manufacturing industries including rattan and carpentry workshops.
- Electric and motor equipment assembly.
- Aluminum structure fabrication and mechanical hardware manufacturing.
