/ Onpin OP-306SL1 (3/8") Two Hammer Impact Wrench - Working Torque 80Nm, Free Speed 8000rpm, Bolt Capacity M10
Onpin OP-306SL1 (3/8") Two Hammer Impact Wrench - Working Torque 80Nm, Free Speed 8000rpm, Bolt Capacity M10
The Onpin OP-306SL1 (3/8") Two Hammer Impact Wrench delivers high attack frequency, low counteraction, and high-speed high-torque performance at a free speed of 8000 rpm. It provides a working torque of 80 Nm and a maximum torque of 200 Nm, making it highly efficient for M10 bolt capacity applications. Featuring a 360-degree rotating handle exhaust system, the tool ensures enhanced comfort and reliability during continuous usage. It is specially engineered for heavy-productive industries including carpentry, electric, motor, aluminum, and hardware sectors.
- OP-306SL1
- 306SL1
- 01-104-01
- 02-200-04
- 02-200-10
- 02-201-17
- 02-202-03
- 02-202-04
- 02-203-02
- 02-203-03
- 03-700-07
- 04-700-03
- 04-701-07
- 04-702-07
- 05-700-01
- 06-700-03
- 06-702-03
- 06-702-12
- 12-700-05
- 13-701-07
- 14-701-01
- 14-701-02
- 15-702-04
- 17-705-02
- 18-603-04
- 24-702-06
- 25-704-14
- 26-302-06
- 31-703-01
- 35-708-04
- 36-503-14
- 37-503-06
- 38-504-03
- 39-504-01
- 40-701-03
- 41-703-02
- 43-702-03
- 45-503-02
- 51-502-01
- 51-701-12
- 52-501-02
- 52-702-06
- 54-701-03
- 74-706-03
- 75-605-03
- 79-610-03
- Onpin impact wrench 3/8
- two hammer air wrench OP-306SL1
- pneumatic impact wrench Onpin
- Onpin spare parts list
- 3/8 inch air screwdriver
Design file download links:
PDF fileDescription

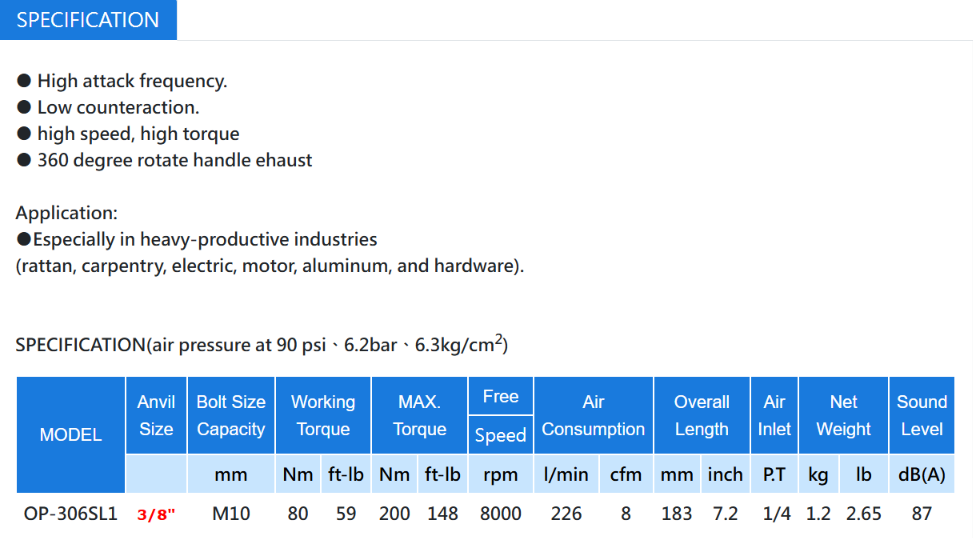

Specification
What is Onpin OP-306SL1?
The Onpin OP-306SL1 is a pneumatic impact wrench featuring a Two Hammer Impact Wrench mechanism, specifically engineered for heavy-duty fastener tightening and loosening applications. It operates on compressed air to deliver a high attack frequency, high rotational speed, and strong torque output with minimal counteraction.
Key Features of Onpin OP-306SL1
- Engineered with a High attack frequency and Low counteraction profile for smooth handling.
- Delivers exceptional high speed, high torque performance to maximize assembly line efficiency.
- Features a convenient 360 degree rotate handle exhaust system for directional airflow management.
Technical Specifications of Onpin OP-306SL1
- Model: OP-306SL1
- Anvil Size: 3/8"
- Bolt Size Capacity: M10
- Working Torque: 80 Nm (59 ft-lb)
- MAX. Torque: 200 Nm (148 ft-lb)
- Free Speed: 8000 rpm
- Air Consumption: 226 l/min (8 cfm)
- Overall Length: 183 mm (7.2 inch)
- Air Inlet: 1/4" P.T
- Net Weight: 1.2 kg (2.65 lb)
- Sound Level: 87 dB(A)
Industrial Applications of Onpin OP-306SL1
- Specially deployed in heavy-productive industries.
- Widely utilized across rattan, carpentry, electric, motor, aluminum, and hardware manufacturing sectors.
