OP-311LH3 3/8 Inch Angle Pneumatic Impact Wrench – Two Hammer, 90 Nm Max Torque

Specification

OP-311LH3 Product Description

The OP-311LH3 is an angle pneumatic impact wrench equipped with a 3/8-inch square drive and a two-hammer impact mechanism. It is designed for fast bolt tightening and removal in confined areas where a conventional straight impact wrench is difficult to use. With a maximum torque of 90 Nm and M10 bolt capacity, it is suitable for industrial assembly lines and high-productivity manufacturing environments.

Features and Characteristics

1. Two-hammer impact mechanism provides high impact frequency and stable torque delivery.
2. Low reaction force improves tool control and reduces operator fatigue.
3. Angle-head housing provides convenient access to restricted working spaces.
4. Forward and reverse directions can be controlled with one hand.
5. Self-locking reverse button helps prevent unintended direction changes.
6. Integrated hook allows the tool to be used with a spring balancer for improved safety and efficiency.
7. Long, compact body design allows the drive head to reach deep or obstructed fastening positions.

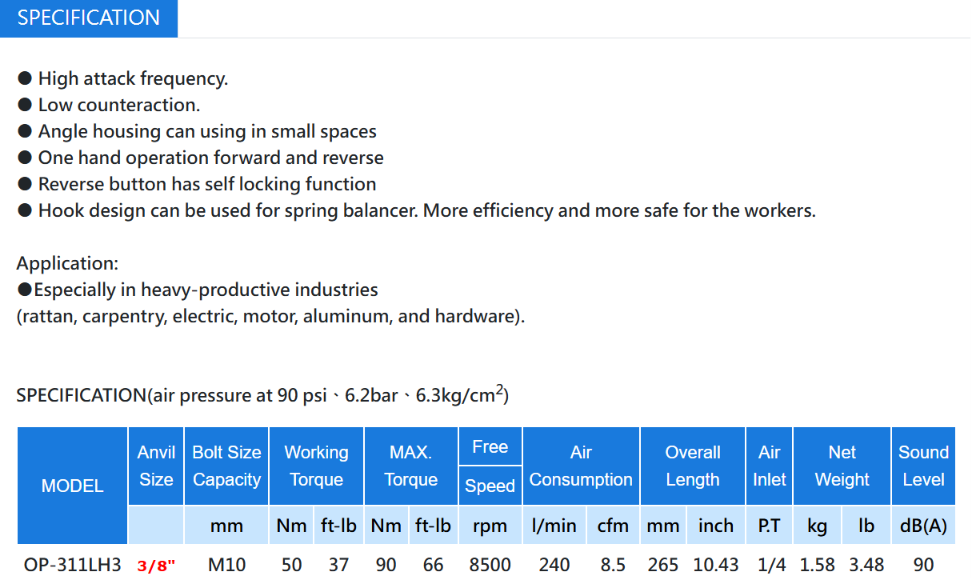

Technical Specifications

1. Model: OP-311LH3
2. Product series: OP-311LH Series
3. Impact mechanism: Two Hammer
4. Anvil size: 3/8 inch
5. Bolt size capacity: M10
6. Working torque: 50 Nm / 37 ft-lb
7. Maximum torque: 90 Nm / 66 ft-lb
8. Free speed: 8,500 RPM
9. Air consumption: 240 l/min / 8.5 CFM
10. Operating pressure: 90 PSI / 6.2 bar / 6.3 kg/cm²
11. Air inlet: PT 1/4 inch
12. Overall length: 265 mm / 10.43 inches
13. Net weight: 1.58 kg / 3.48 lb
14. Sound level: 90 dB(A)

Product Advantages

1. Angle-head design reaches confined and difficult fastening areas.
2. Maximum torque of 90 Nm provides dependable performance for M10 bolts.
3. High 8,500 RPM speed supports faster assembly operations.
4. One-hand forward and reverse control improves working efficiency.
5. Low counter-reaction helps reduce fatigue during extended operation.
6. Spring-balancer hook supports safer and more comfortable production-line use.
7. Durable two-hammer mechanism is suitable for frequent industrial operation.

Applications

The OP-311LH3 angle pneumatic impact wrench is suitable for:

1. Mechanical and industrial assembly lines.
2. Motor and machinery production or maintenance.
3. Electrical, aluminum and metalworking industries.
4. Carpentry, furniture and rattan manufacturing.
5. Hardware and M10 bolt assembly.
6. Fastening operations inside machinery and other restricted spaces.
