Onpin OP-310LH3 3/8 Inch Angle Pneumatic Impact Wrench – 130 Nm Maximum Torque

Specification Onpin OP-310LH3 3/8 Inch Angle Pneumatic Impact Wrench

The OP-310LH3 is an angle pneumatic impact wrench equipped with a 3/8-inch square drive for tightening and loosening bolts in confined or difficult-to-reach areas. Its high impact frequency, low counter-reaction, and maximum torque of 130 Nm make it suitable for industrial assembly lines and demanding mechanical fastening operations.

Features and Characteristics Onpin OP-310LH3 3/8 Inch Angle Pneumatic Impact Wrench

1. High impact frequency supports fast tightening and bolt removal.
2. Low counter-reaction improves control and helps reduce operator fatigue.
3. Angle-head housing allows convenient operation in restricted spaces.
4. The 3/8-inch square drive is compatible with commonly used pneumatic sockets.
5. The OP-310LH range is available with 3/8-inch and 1/2-inch anvil options.
6. The 240 mm overall length provides better access inside machinery and equipment.
7. Durable construction is suitable for frequent industrial operation.

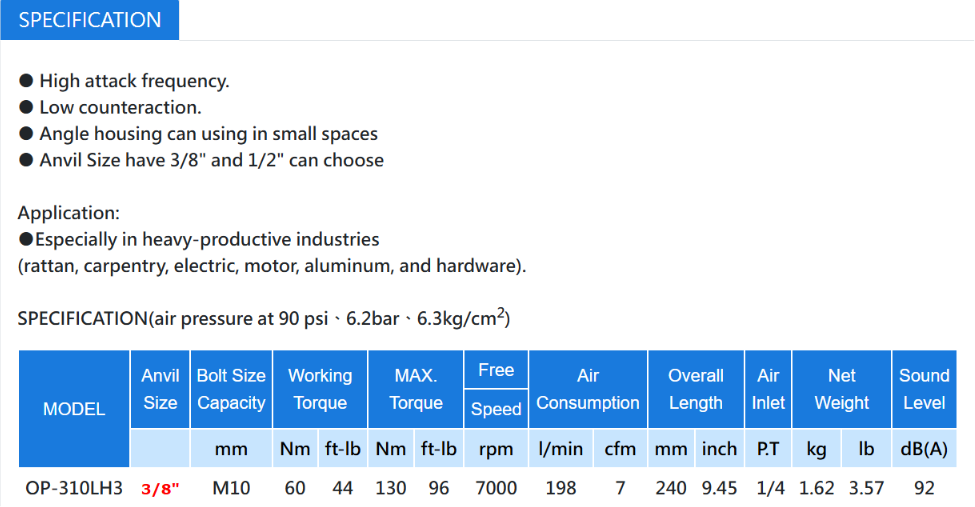

Technical Specifications Onpin OP-310LH3 3/8 Inch Angle Pneumatic Impact Wrench

1. Model: OP-310LH3
2. Product series: OP-310LH Series
3. Product type: Angle pneumatic impact wrench
4. Anvil size: 3/8 inch
5. Bolt size capacity: M10
6. Working torque: 60 Nm / 44 ft-lb
7. Maximum torque: 130 Nm / 96 ft-lb
8. Free speed: 7,000 RPM
9. Air consumption: 198 l/min / 7 CFM
10. Operating pressure: 90 PSI / 6.2 bar / 6.3 kg/cm²
11. Air inlet: PT 1/4 inch
12. Overall length: 240 mm / 9.45 inches
13. Net weight: 1.62 kg / 3.57 lb
14. Sound level: 92 dB(A)

Product Advantages Onpin OP-310LH3 3/8 Inch Angle Pneumatic Impact Wrench

1. Angle-head design reaches confined and obstructed fastening positions.
2. Maximum torque of 130 Nm provides reliable performance for M10 bolts.
3. A free speed of 7,000 RPM supports faster assembly cycles.
4. Low counter-reaction improves comfort and tool stability.
5. The 1.62 kg body is relatively compact and easy to handle.
6. Pneumatic operation delivers stable performance for continuous production.
7. A 1/2-inch drive version is also available for different socket requirements.

Applications Onpin OP-310LH3 3/8 Inch Angle Pneumatic Impact Wrench

The OP-310LH3 angle pneumatic impact wrench is suitable for:

1. Mechanical and industrial assembly lines.
2. Motor and machinery production or maintenance.
3. Electrical, aluminum, and metalworking industries.
4. Carpentry, furniture, and rattan manufacturing.
5. Hardware assembly and M10 bolt fastening.
6. Fastening operations inside machinery and other confined working areas.
