OP-100LH 1/2 Inch Two Hammer Pneumatic Impact Wrench – 110 Nm Air Nutrunner

Specification

OP-100LH Product Description

The OP-100LH is an angle-type pneumatic impact wrench equipped with a 1/2-inch square drive and a reliable two-hammer impact mechanism. It provides efficient tightening and loosening performance while allowing operators to reach confined areas where a conventional air impact wrench may be difficult to use.

Features and Characteristics

1. Forward and reverse control knob for quick tightening and loosening operations.
2. Angled housing design for convenient operation in restricted spaces.
3. Two-hammer impact mechanism provides stable and powerful torque output.
4. Front cap oiling design supports easy lubrication and extends service life.
5. Rear exhaust directs discharged air and oil away from the workpiece.
6. Durable construction suitable for frequent use in industrial production environments.

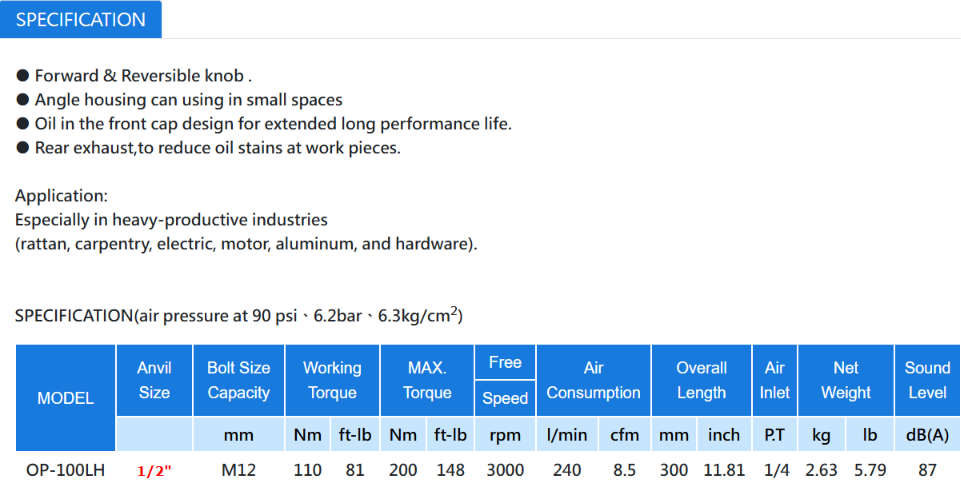

Technical Specifications

1. Model: OP-100LH
2. Anvil size: 1/2 inch
3. Bolt size capacity: M12
4. Working torque: 110 Nm / 81 ft-lb
5. Maximum torque: 200 Nm / 148 ft-lb
6. Free speed: 3,000 RPM
7. Air consumption: 240 l/min / 8.5 CFM
8. Operating pressure: 90 PSI / 6.2 bar
9. Air inlet: PT 1/4 inch
10. Overall length: 300 mm / 11.81 inches
11. Net weight: 2.63 kg / 5.79 lb
12. Sound level: 87 dB(A)

Advantages

1. Compact angle design provides easier access to hard-to-reach areas.
2. Maximum torque of 200 Nm delivers reliable performance for M12 bolts.
3. Quick forward and reverse operation improves working efficiency.
4. Convenient lubrication design reduces internal wear and supports longer tool life.
5. Rear exhaust helps protect workpieces from oil stains and discharged air.

Applications

The OP-100LH pneumatic impact wrench is suitable for:

1. Industrial production and assembly lines.
2. Machinery and motor maintenance.
3. Electrical, mechanical and aluminum industries.
4. Carpentry, furniture production and hardware assembly.
5. Fastening operations in confined or restricted working spaces.
