Two Hammer Impact Wrench Hong Bing Onpin OP-130LH4 1/2" - M14-M16 Capacity, 220Nm Working Torque
Price:Contact Jade M-Tech
Category: Air Wrench
SKU: OP-130LH4
The Hong Bing OP-130LH4 1/2" angle head pneumatic impact wrench utilizes a dual-hammer mechanism to deliver high torque with low reaction force, perfect for confined spaces. It handles bolt capacities from M14 to M16, providing a working torque of 220 Nm at a free speed of 4000 rpm. Engineered for heavy industrial production, automotive maintenance, and assembly lines requiring robust fastening performance.
OP-130LH4 Series Models & Sizes:
- OP-130LH4
- 01-105-01
- 02-200-02
- 02-200-05
- 02-200-06
- 02-201-01
- 02-201-05
- 03-700-04
- 03-700-06
- 04-704-03
- 05-700-01
- 05-701-04
- 05-702-04
- 06-700-06
- 06-702-03
- 09-701-03
- 09-702-03
- 12-701-06
- 13-401-01
- 13-701-11
- 13-701-13
- 13-701-14
- 13-701-18
- 13-710-01
- 14-702-04
- 15-703-02
- 15-703-04
- 15-703-05
- 15-703-06
- 17-707-01
- 18-603-02
- 18-704-02
- 24-703-02
- 25-702-11
- 30-307-02
- 30-308-02
- 30-701-02
- 35-710-02
- 36-505-02
- 37-506-01
- 38-506-01
- 39-703-07
- 39-704-02
- 40-703-02
- 41-705-03
- 43-703-06
- 51-403-05
- 51-403-06
- 51-703-06
- 52-701-05
- 52-704-03
- 52-704-05
- 54-702-04
- 56-703-01
- 64-400-01
- 74-704-12
- 74-705-02
- 74-708-03
- 76-715-02
- 78-607-02
- 78-613-01
- pneumatic impact wrench
- angle impact wrench
- two hammer impact wrench
- 1/2 inch air wrench
- air impact gun
Show more
Design file download links:
PDF file** If you are using Google Chrome, please copy the download link and paste it into a new tab to download the 3D file (For support, please contact hotline: +84 935 136 236).
Description
Specification
Overview: What is the Two Hammer Impact Wrench OP-130LH4 Hong Bing?
The OP-130LH4 is an industrial pneumatic impact wrench utilizing a dual-hammer mechanism, powered by compressed air to deliver high-torque fastening and unfastening performance for threaded fasteners.
Key Features and Characteristics of Two Hammer Impact Wrench OP-130LH4 Hong Bing
- Features an angle head design making it ideal for operation in confined spaces.
- Delivers high torque output combined with low reaction force for enhanced operator control.
- Designed with a convenient forward/reverse switch knob.
- Includes a front housing equipped with an oil port to facilitate easy maintenance.
- Equipped with a side exhaust configuration.

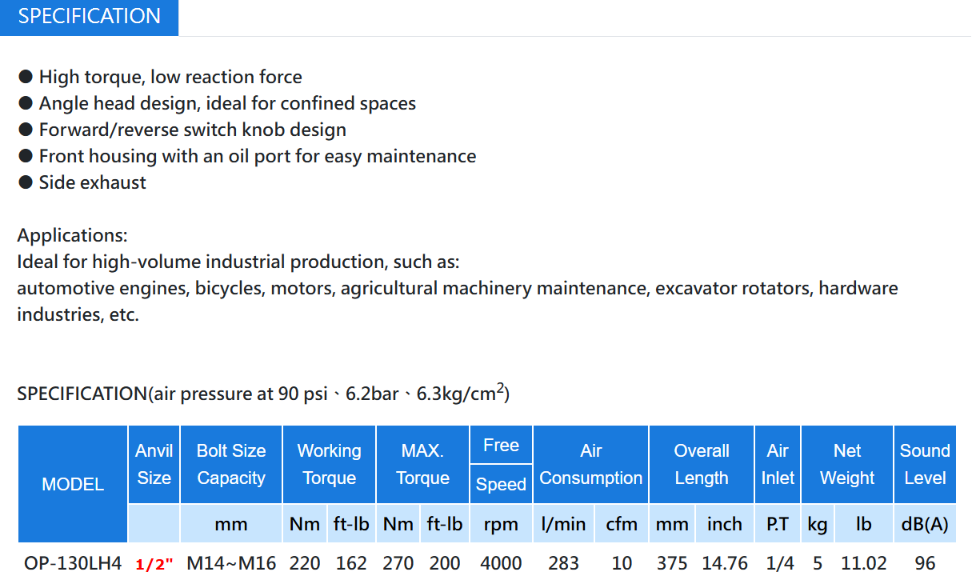

Main Technical Specifications of Two Hammer Impact Wrench OP-130LH4 Hong Bing
- Model: OP-130LH4
- Manufacturer: Hong Bing Pneumatic Industry Co., Ltd. (onpin)
- Anvil Size: 1/2"
- Bolt Size Capacity: M14–M16
- Working Torque: 220 Nm (162 ft-lb)
- MAX. Torque: 270 Nm (200 ft-lb)
- Free Speed: 4000 rpm
- Air Consumption: 283 l/min (10 cfm)
- Overall Length: 375 mm (14.76 inch)
- Air Inlet Size: 1/4" P.T
- Net Weight: 5 kg (11.02 lb)
- Sound Level: 96 dB(A)
- Standard Working Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
Practical Applications of Two Hammer Impact Wrench OP-130LH4 Hong Bing
- Suited for high-volume industrial production environments.
- Applied in automotive engine assembly, bicycle manufacturing, and motor maintenance.
- Utilized in agricultural machinery maintenance and excavator rotator servicing.
- Deployed across various hardware industries requiring heavy-duty mechanical fastening.
