OP-310LH4 1/2 Inch Angle Pneumatic Impact Wrench – 130 Nm Maximum Torque

Specification

The OP-310LH4 is an angle pneumatic impact wrench equipped with a 1/2-inch square drive, designed for tightening and loosening bolts in confined or difficult-to-reach areas. It operates with compressed air and features high impact frequency, low counter-reaction, and a maximum torque of 130 Nm, making it suitable for industrial assembly lines and demanding fastening applications.

Features and Characteristics

1. High impact frequency supports fast tightening and bolt removal.
2. Low counter-reaction improves tool control and reduces operator fatigue.
3. Angle-head housing provides convenient access to restricted working spaces.
4. The 1/2-inch square drive is compatible with commonly used pneumatic sockets.
5. The OP-310LH range is available with 3/8-inch and 1/2-inch anvil options.
6. The 240 mm overall length helps the tool reach fastening points inside machinery.
7. Durable construction is suitable for frequent industrial operation.

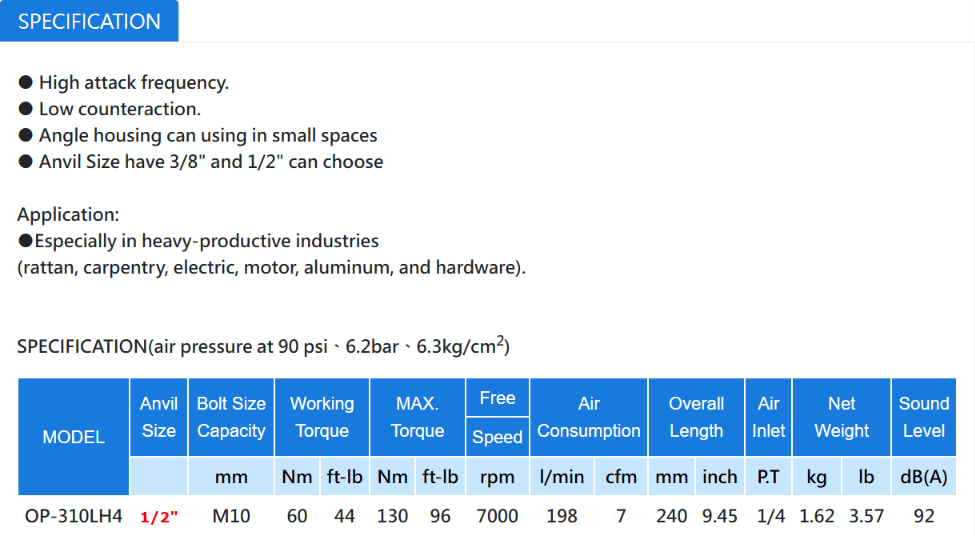

Technical Specifications

1. Model: OP-310LH4
2. Product series: OP-310LH Series
3. Product type: Angle pneumatic impact wrench
4. Anvil size: 1/2 inch
5. Bolt size capacity: M10
6. Working torque: 60 Nm / 44 ft-lb
7. Maximum torque: 130 Nm / 96 ft-lb
8. Free speed: 7,000 RPM
9. Air consumption: 198 l/min / 7 CFM
10. Operating pressure: 90 PSI / 6.2 bar / 6.3 kg/cm²
11. Air inlet: PT 1/4 inch
12. Overall length: 240 mm / 9.45 inches
13. Net weight: 1.62 kg / 3.57 lb
14. Sound level: 92 dB(A)

Product Advantages

1. Angle-head design reaches confined and obstructed fastening positions.
2. Maximum torque of 130 Nm provides reliable performance for M10 bolts.
3. The 1/2-inch drive offers broad compatibility with industrial sockets.
4. A free speed of 7,000 RPM supports faster assembly cycles.
5. Low counter-reaction improves comfort and operating stability.
6. The compact 1.62 kg body is easy to handle during extended use.
7. Pneumatic operation provides dependable performance for continuous production.

Applications

The OP-310LH4 angle pneumatic impact wrench is suitable for:

1. Mechanical and industrial assembly lines.
2. Motor and machinery production or maintenance.
3. Electrical, aluminum, and metalworking industries.
4. Carpentry, furniture, and rattan manufacturing.
5. Hardware assembly and M10 bolt fastening.
6. Fastening operations inside machinery and other confined working areas.
