Air Impact Wrench Onpin OP-100LB Series 1/2" - M16, 270-440 Nm, 5000 rpm
The Onpin OP-100LB pneumatic impact wrench operates at an air pressure of 6.2 bar (90 psi) and features an alloy steel cylinder along with a convenient side exhaust design. It supports M16 bolt capacity, delivering a working torque of 270 Nm, a maximum torque of 440 Nm, and a free speed of 5000 rpm. Designed with an oil-in-the-front-cap mechanism for extended performance life and securely fastened components, this tool is ideal for heavy-duty long-term industrial operations.
- OP-100LB
- 100LB
- 01-103-05
- 02-200-05
- 02-200-06
- 02-201-02
- 02-203-01
- 04-703-02
- 05-700-01
- 05-701-02
- 05-701-08
- 06-702-03
- 12-701-06
- 13-702-02
- 14-701-03
- 14-702-01
- 15-702-10
- 17-704-02
- 18-707-01
- 24-704-01
- 25-702-11
- 30-306-01
- 30-307-03
- 31-703-01
- 35-709-02
- 36-505-01
- 37-505-01
- 38-505-03
- 40-703-01
- 41-705-04
- 43-703-05
- 51-402-02
- 51-405-01
- 51-503-02
- 52-700-01
- 52-704-02
- 52-704-04
- 54-702-03
- 74-707-12
- 75-607-01
- 77-606-01
- 79-606-01
- pneumatic impact wrench
- air impact wrench 1/2
- two hammer impact wrench
- air wrench op-100lb
- onpin air impact wrench
Design file download links:
PDF fileDescription
Specification
What is Onpin OP-100LB?
The OP-100LB pneumatic impact wrench is a specialized industrial tool powered by compressed air, featuring a dual-hammer mechanism designed to deliver stable and powerful torque for heavy-duty assembly lines. It converts compressed air pressure into continuous mechanical impacts, allowing technicians to fasten and loosen threaded fasteners with high precision and speed.
Key Features of Onpin OP-100LB
- One-hand operation design equipped with an accessible forward & reverse switch.
- Cylinder constructed from durable alloy steel material.
- Oil-in-the-front-cap design engineered for extended long performance life.
- Front cap and body securely fixed with screws, suitable for long working hours and designed to prevent loosening.
- Side exhaust system.

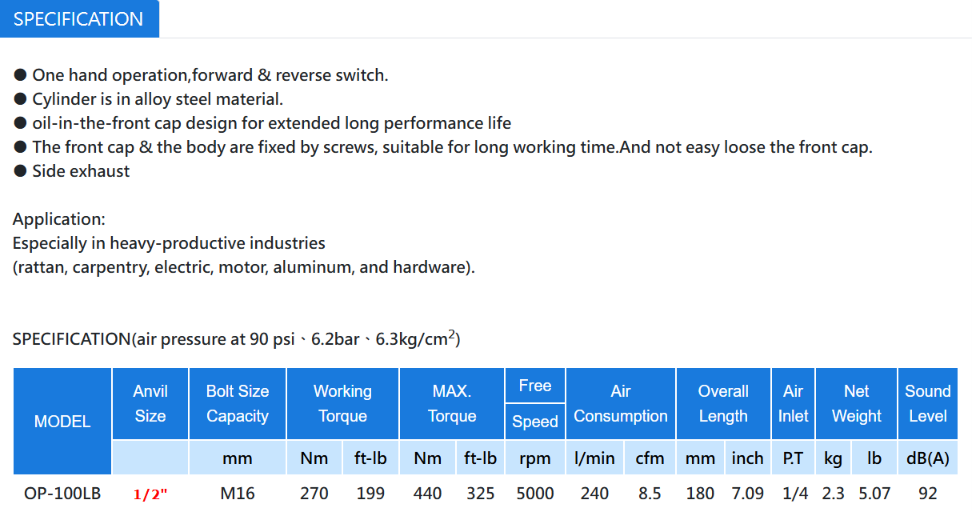

Technical Specifications of Onpin OP-100LB
- Model: OP-100LB
- Anvil Size: 1/2"
- Bolt Size Capacity: M16
- Working Torque: 270 Nm (199 ft-lb)
- MAX. Torque: 440 Nm (325 ft-lb)
- Free Speed: 5000 rpm
- Air Consumption: 240 l/min (8.5 cfm)
- Overall Length: 180 mm (7.09 inch)
- Air Inlet P.T: 1/4"
- Net Weight: 2.3 kg (5.07 lb)
- Sound Level: 92 dB(A)
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
Industrial Applications of Onpin OP-100LB
- Heavy-productive manufacturing industries including rattan and carpentry workshops.
- Electric and motor equipment assembly.
- Aluminum structure fabrication and mechanical hardware manufacturing.
