Adjustable Clutch Air Wrench Onpin OP-5CLB08 Series 3/8" - M5, 5 Nm, 800 rpm
The Onpin OP-5CLB08 adjustable clutch air wrench operates at an air pressure of 6.2 bar (90 psi) and features a torque regulator alongside an automatic clutch mechanism that engages upon reaching the preset torque to protect the workpiece from damage. It supports M5 bolt capacity, delivering a maximum torque of 5 Nm and a free speed of 800 rpm. Designed with one-hand forward and reverse operation, a self-locking reverse button, and a spring balancer-compatible hook, this tool ensures enhanced work efficiency and worker safety.
- OP-5CLB08
- 5CLB08
- 01-103-07
- 02-200-04
- 02-201-16
- 02-203-06
- 03-700-02
- 03-700-04
- 04-700-01
- 04-700-06
- 04-701-09
- 04-701-11
- 04-702-11
- 05-701-05
- 05-701-10
- 05-702-03
- 06-702-21
- 08-701-04
- 08-703-01
- 10-701-01
- 11-701-01
- 12-700-05
- 12-701-04
- 13-700-07
- 13-700-08
- 15-701-04
- 15-701-05
- 15-701-07
- 15-701-10
- 15-702-05
- 15-702-07
- 15-702-13
- 16-700-06
- 16-700-07
- 16-701-09
- 17-707-01
- 18-703-02
- 24-302-01
- 25-704-09
- 26-703-05
- 26-902-02
- 31-707-03
- 35-705-04
- 36-702-01
- 37-502-03
- 38-703-02
- 39-702-02
- 39-702-05
- 39-703-03
- 39-703-04
- 48-703-11
- 49-702-05
- 49-702-06
- 51-309-03
- 51-401-05
- 51-402-03
- 51-803-02
- 51-703-11
- 51-707-03
- 52-301-01
- 52-701-19
- 52-701-23
- 52-702-15
- 52-702-18
- 52-702-35
- 52-702-38
- 52-702-52
- 52-702-53
- 64-400-01
- 67-701-02
- 74-702-07
- 74-703-02
- 74-704-14
- 74-706-09
- 76-705-02
- 78-634-04
- adjustable clutch air wrench
- air shut off screwdriver
- pneumatic clutch screwdriver
- air wrench op-5clb08
- onpin air screwdriver
Design file download links:
PDF fileDescription

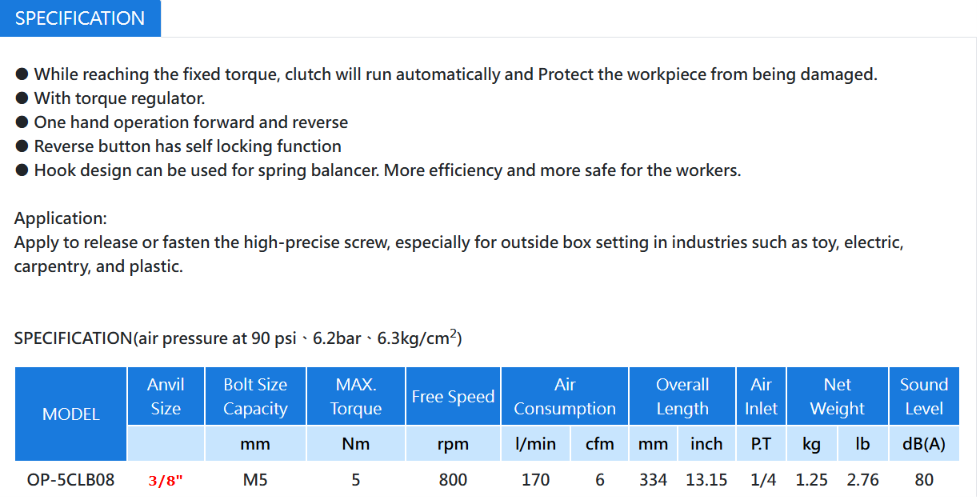

Specification
What is Onpin OP-5CLB08?
The OP-5CLB08 adjustable clutch air wrench is a specialized pneumatic tool featuring a torque regulator and an automatic clutch mechanism that runs upon reaching the preset torque to protect the workpiece from damage. It converts compressed air energy to efficiently and safely release or fasten high-precision screws in industrial assembly environments.
Key Features of Onpin OP-5CLB08
- Automatically engages the clutch upon reaching the fixed torque to safeguard the workpiece from damage.
- Equipped with an integrated torque regulator.
- Supports convenient one-hand operation for forward and reverse directions.
- Reverse button features a self-locking function.
- Hook design compatible with spring balancers to enhance work efficiency and worker safety.
Technical Specifications of Onpin OP-5CLB08
- Model: OP-5CLB08
- Anvil Size: 3/8"
- Bolt Size Capacity: M5
- MAX. Torque: 5 Nm
- Free Speed: 800 rpm
- Air Consumption: 170 l/min (6 cfm)
- Overall Length: 334 mm (13.15 inch)
- Air Inlet P.T: 1/4"
- Net Weight: 1.25 kg (2.76 lb)
- Sound Level: 80 dB(A)
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
Industrial Applications of Onpin OP-5CLB08
- Applied for releasing or fastening high-precision screws.
- Particularly suitable for outside box setting operations.
- Utilized in industries such as toy manufacturing, electrical equipment, carpentry, and plastics.
