Torque Control Air Wrench Onpin OP-5SLB03 Series 3/8" - M6, 4.0-10 Nm, 340 rpm
The Onpin OP-5SLB03 torque control air wrench operates at an air pressure of 90 psi (6.2 bar), featuring a torque regulator and an automatic clutch mechanism that runs upon reaching the fixed torque to safeguard the workpiece from damage. It supports M6 bolt capacity, delivering a maximum torque of 4.0-10 Nm, a free speed of 340 rpm, and a net weight of 1.3 kg. Designed with a self-locking reverse button, convenient one-hand operation, and a spring balancer-compatible hook, this tool enhances both operational efficiency and worker safety.
- OP-5SLB03
- 5SLB03
- 01-103-07
- 02-200-04
- 02-201-16
- 02-203-06
- 03-700-02
- 03-700-04
- 03-700-08
- 03-700-09
- 04-700-01
- 04-700-05
- 04-700-06
- 04-700-07
- 04-701-02
- 04-701-09
- 04-702-11
- 05-701-05
- 05-701-10
- 05-702-03
- 06-701-24
- 06-702-26
- 08-701-04
- 08-702-03
- 08-703-01
- 09-702-02
- 11-701-01
- 11-702-02
- 12-700-05
- 12-701-04
- 12-701-09
- 12-702-07
- 13-700-07
- 13-700-08
- 15-701-04
- 15-701-05
- 15-701-10
- 15-701-13
- 15-702-07
- 15-702-09
- 15-702-10
- 15-702-13
- 16-700-08
- 16-700-10
- 16-701-10
- 17-707-01
- 18-703-02
- 24-302-01
- 24-703-03
- 25-704-09
- 26-703-05
- 26-002-02
- 31-707-03
- 32-708-02
- 35-705-03
- 36-702-01
- 37-502-03
- 38-703-02
- 39-702-02
- 39-702-06
- 39-703-08
- 43-703-07
- 48-702-02
- 48-703-11
- 49-702-07
- 49-702-08
- 49-702-14
- 51-309-03
- 51-401-05
- 51-401-06
- 51-402-03
- 51-605-04
- 51-702-17
- 51-702-18
- 51-703-22
- 51-703-23
- 52-300-01
- 52-301-01
- 52-302-01
- 52-701-19
- 52-702-18
- 52-702-35
- 52-702-47
- 52-702-52
- 52-702-53
- 56-702-01
- 61-400-01
- 67-701-02
- 74-703-02
- 74-704-14
- 74-707-38
- 75-603-03
- 76-705-02
- 78-614-03
- torque control air wrench
- air shut off screwdriver
- pneumatic clutch screwdriver
- air wrench op-5slb03
- onpin air screwdriver
Description
Specification
What is Onpin OP-5SLB03?
The OP-5SLB03 torque control air wrench is a specialized pneumatic tool designed to release or fasten high-precision screws. It integrates a torque regulator and an automatic clutch mechanism that runs upon reaching the fixed torque to protect the workpiece from being damaged during operation.
Key Features of Onpin OP-5SLB03
- Automatically runs the clutch upon reaching the fixed torque to safeguard the workpiece from damage.
- Equipped with an integrated torque regulator for precise fastening control.
- Designed for convenient one-hand operation in both forward and reverse directions.
- Reverse button features a built-in self-locking function for enhanced safety.
- Hook design compatible with spring balancers to deliver higher work efficiency and better safety for operators.

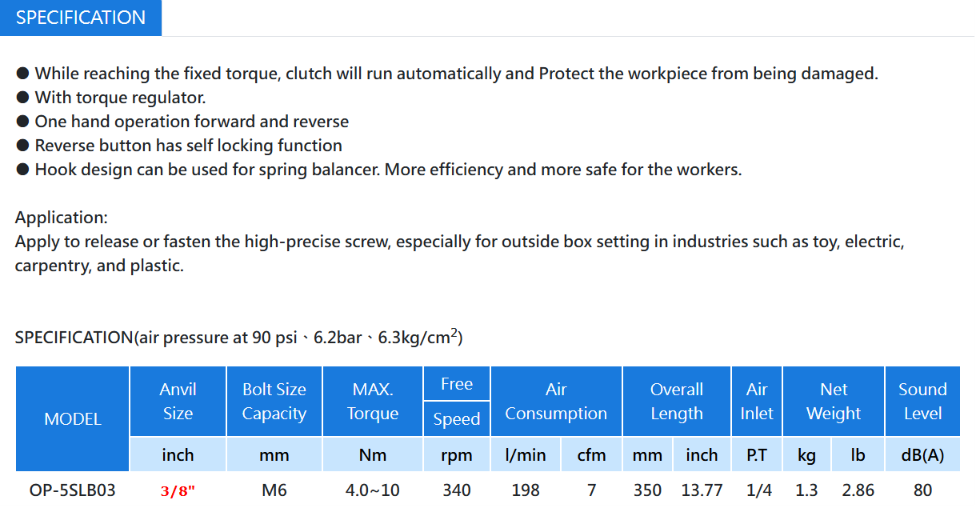

Technical Specifications of Onpin OP-5SLB03
- Model: OP-5SLB03
- Anvil Size: 3/8"
- Bolt Size Capacity: M6
- MAX. Torque: 4.0~10 Nm
- Free Speed: 340 rpm
- Air Consumption: 198 l/min (7 cfm)
- Overall Length: 350 mm (13.77 inch)
- Air Inlet P.T: 1/4"
- Net Weight: 1.3 kg (2.86 lb)
- Sound Level: 80 dB(A)
- Operating Air Pressure: 90 psi (6.2 bar)
Industrial Applications of Onpin OP-5SLB03
- Applied for releasing or fastening high-precision screws.
- Particularly suitable for outside box setting operations.
- Widely utilized in industries such as toy manufacturing, electrical equipment, carpentry, and plastics
