/ Onpin Air Angle Nutrunner Wrench OP-AN711004 - 1/2 Inch Anvil, 33-60Nm Torque
Onpin Air Angle Nutrunner Wrench OP-AN711004 - 1/2 Inch Anvil, 33-60Nm Torque
The Onpin OP-AN711004 Air Angle Nutrunner Wrench is designed to efficiently release or fasten heavy nuts across industrial assembly lines, including automobile, bicycle, and electric vehicle production. Featuring a 1/2" anvil size and M10 bolt capacity, it delivers an adjustable maximum torque range of 33 to 60 Nm at a free speed of 80 rpm. Equipped with a lever start mechanism, the tool automatically stops operating upon reaching the preset torque, providing energy savings with an air consumption rate of 240 l/min at 90 psi (6.2 bar) operating pressure. This model features an overall length of 415 mm, a net weight of 2.3 kg, a 1/4" P.T air inlet, and operates at a sound level of 90 dB(A).
- OP-AN Series
- OP-AN711004
- air angle nutrunner wrench
- pneumatic angle wrench
- air nutrunner 1/2 inch
- Onpin pneumatic angle tool
- adjustable torque air wrench
Design file download links:
PDF fileDescription

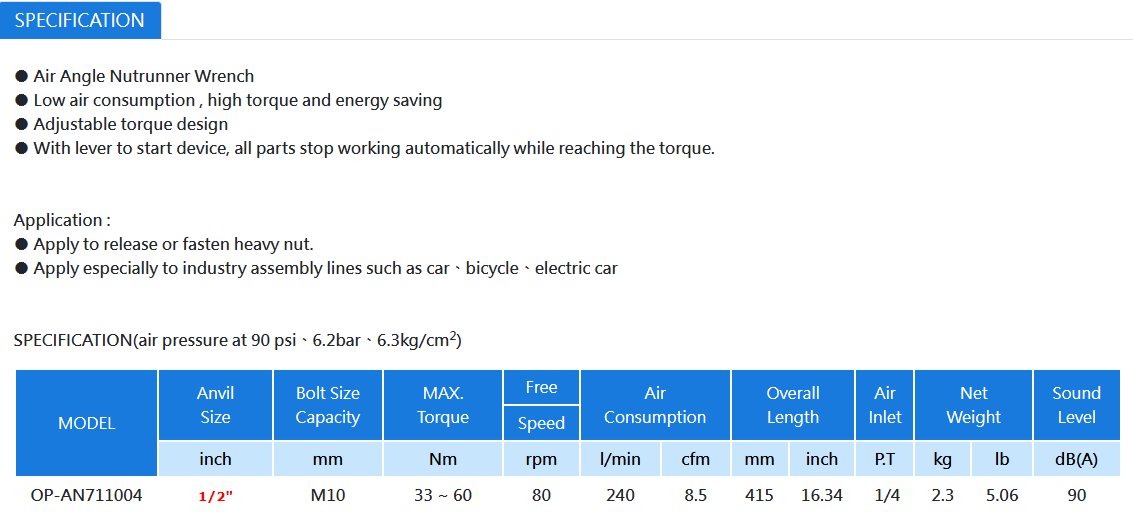

Specification
Key Features of Onpin OP-AN711004
- Adjustable Torque Design: Enables precise torque management ranging from 33 to 60 Nm, ensuring secure fastening without damaging threads.
- Automatic Shut-Off Mechanism: Features a lever to start device, where all parts automatically stop working upon reaching the targeted torque.
- Energy-Saving Operation: High-efficiency performance with low air consumption (240 l/min / 8.5 cfm) to reduce overall compressed air system costs.
- Ergonomic Angle Structure: Angle-head configuration with an overall length of 415 mm allows smooth access to narrow and hard-to-reach spaces.
Technical Specifications of Onpin OP-AN711004
- Brand: Onpin
- Model: OP-AN711004
- Anvil Size: 1/2"
- Bolt Size Capacity: M10
- MAX. Torque: 33 ~ 60 Nm
- Free Speed: 80 rpm
- Air Consumption: 240 l/min (8.5 cfm)
- Overall Length: 415 mm (16.34 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 2.3 kg (5.06 lb)
- Sound Level: 90 dB(A)
- Standard Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
Industrial Applications of Onpin OP-AN711004
- Designed specifically to release or fasten heavy nuts requiring controlled torque accuracy.
- Widely used on industrial assembly lines, such as car, bicycle, and electric car manufacturing plants
