Air Angle Nutrunner Wrench Onpin OP-AN711024 Series 1/2" - M8~M10, 28~43 Nm, 280 rpm
The Onpin OP-AN711024 air angle nutrunner wrench is a specialized pneumatic tool engineered with low air consumption, high torque, and energy-saving performance. It features an adjustable torque design along with a start lever that automatically stops all parts from working once the target torque is reached. Operating at an air pressure of 90 psi (6.2 bar), the tool supports an M8~M10 bolt capacity, delivering a maximum torque of 28~43 Nm and a free speed of 280 rpm. It is specifically designed to release or fasten heavy nuts, making it ideal for industrial assembly lines such as automotive, bicycle, and electric vehicle manufacturing.
- OP-AN711024
- AN711024
- 01-103-09
- 02-200-03
- 02-201-01
- 02-202-03
- 03-700-04
- 03-700-05
- 04-700-03
- 04-700-07
- 04-701-02
- 04-702-17
- 04-702-18
- 05-702-03
- 06-700-07
- 06-701-02
- 06-701-21
- 06-702-08
- 08-700-07
- 08-703-01
- 09-701-01
- 09-702-01
- 09-702-05
- 09-703-02
- 10-701-02
- 10-701-04
- 13-700-03
- 13-701-20
- 15-700-02
- 15-701-04
- 15-701-14
- 15-702-03
- 15-702-10
- 15-702-16
- 15-703-01
- 15-703-02
- 15-703-10
- 16-701-11
- 16-701-12
- 17-707-01
- 18-704-03
- 21-700-01
- 21-702-01
- 24-302-01
- 25-704-09
- 26-703-05
- 32-713-08
- 35-707-18
- 36-703-08
- 37-703-04
- 38-703-03
- 39-701-08
- 39-703-10
- 39-703-11
- 39-704-08
- 45-703-05
- 48-704-09
- 48-705-06
- 49-702-23
- 49-702-24
- 51-401-05
- 51-702-09
- 51-702-10
- 51-703-26
- 52-301-01
- 52-600-01
- 52-701-20
- 52-701-28
- 52-702-18
- 52-702-48
- 52-702-54
- 52-702-55
- 52-702-56
- 52-703-04
- 52-703-05
- 55-701-01
- 56-700-01
- 63-701-01
- 74-703-09
- 74-704-29
- 74-709-06
- 74-709-07
- 75-707-03
- 76-711-02
- 78-607-05
- 78-705-01
- air angle nutrunner wrench
- pneumatic angle nutrunner
- air angle wrench op-an711024
- onpin angle nutrunner
- air shut off nutrunner
Design file download links:
PDF fileDescription

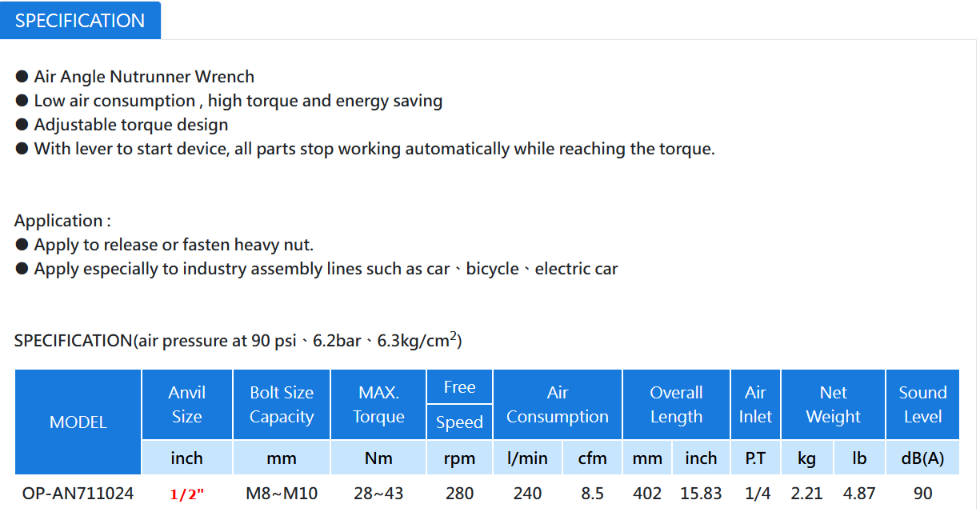

Specification
What is Onpin OP-AN711024?
The Onpin OP-AN711024 air angle nutrunner wrench is a specialized pneumatic tool engineered with low air consumption, high torque, and energy-saving performance. It features an adjustable torque design along with a start lever that automatically stops all parts from working once the target torque is reached.
Key Features of Onpin OP-AN711024
- Air angle nutrunner wrench featuring low air consumption, high torque, and energy saving.
- Designed with an adjustable torque mechanism.
- Equipped with a start lever to automatically halt all operations upon reaching the specified torque.
Technical Specifications of Onpin OP-AN711024
- Model: OP-AN711024
- Anvil Size: 1/2"
- Bolt Size Capacity: M8~M10
- MAX. Torque: 28~43 Nm
- Free Speed: 280 rpm
- Air Consumption: 240 l/min (8.5 cfm)
- Overall Length: 402 mm (15.83 inch)
- Air Inlet P.T: 1/4"
- Net Weight: 2.21 kg (4.87 lb)
- Sound Level: 90 dB(A)
- Operating Air Pressure: 90 psi (6.2 bar)
Industrial Applications of Onpin OP-AN711024
- Applied to release or fasten heavy nuts.
- Specially suited for industrial assembly lines such as cars, bicycles, and electric cars.
