Onpin Air Impact Wrench OP-310DB3 ISO 11148-6 - 3/8 Inch Drive, Max Torque 300Nm

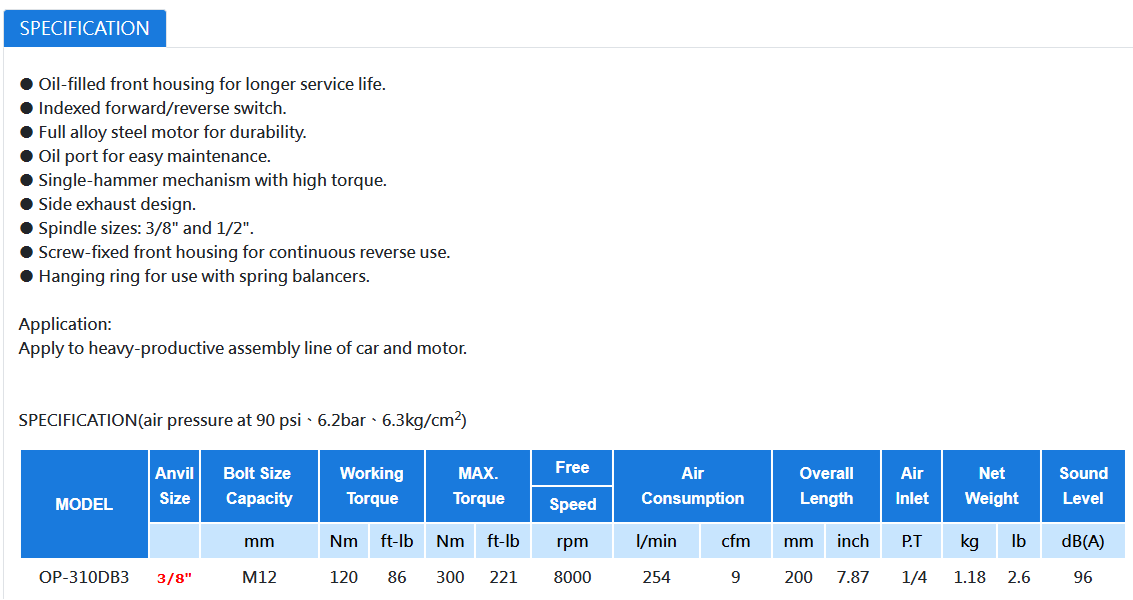

Specification OP-310DB3:

Key Features of Onpin OP-310DB3

1. Single-hammer mechanism: Provides instantaneous high torque output, achieving a maximum torque of 300 Nm (221 ft-lb).
2. Full alloy steel motor: Engineered for superior durability and extended tool lifespan under heavy industrial usage.
3. Oil-filled front housing: Reduces component wear; features a screw-fixed front housing design for continuous reverse operation.
4. Indexed forward/reverse switch: Ensures precise and effortless direction changing during operation.
5. Dedicated oil port: Allows convenient routine maintenance and lubrication directly into the tool.
6. Side exhaust design: Safely directs exhaust air away from the operator and immediate workspace.
7. Integrated hanging ring: Designed for seamless setup with spring balancers to reduce operator fatigue.

Technical Specifications of Onpin OP-310DB3

1. Brand: Onpin
2. Model: OP-310DB3 (Part of the OP-308 Series)
3. Standard Compliance: EN ISO 11148-6:2012 / 2006/42/EC
4. Anvil Size: 3/8" (3/8 inch)
5. Bolt Size Capacity: M12
6. Working Torque: 120 Nm (86 ft-lb)
7. MAX. Torque: 300 Nm (221 ft-lb)
8. Free Speed: 8000 rpm
9. Air Consumption: 254 l/min (9 cfm)
10. Standard Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
11. Air Inlet: 1/4" P.T
12. Overall Length: 200 mm (7.87 inch)
13. Net Weight: 1.18 kg (2.6 lb)
14. Sound Level: 96 dB(A)

Industrial Applications of Onpin OP-310DB3

1. Automotive & Motorcycle Assembly: Applied in heavy-productive assembly lines for fastening M12 structural bolts.
2. Industrial Manufacturing: Integrated into machinery fabrication workstations and automated production setups.
3. MRO Facilities: Ideal for industrial repair and overhaul tasks requiring a compact 1.18 kg tool with up to 300 Nm torque output.
