Onpin Air Impact Wrench OP-308DW ISO 11148-6 - 1/2 Inch Drive, 200Nm Max Torque

Specification OP-308DW:

Key Features of Onpin OP-308DW

1. Single Hammer Mechanism: Delivers an instant maximum torque output of 200 Nm for efficient industrial fastening operations.
2. Oil-Filled Front Housing: Effectively reduces friction wear and significantly extends tool service life during continuous heavy usage.
3. One-Handed Forward/Reverse Switch: Features a self-locking reverse button for convenient, safe, and swift directional control.
4. Multi-Step Air Regulator: Built-in multi-step adjustment knob allows operators to precisely control the output torque.
5. Rear Exhaust Design: Directs exhaust air away from the user, reducing noise levels and minimizing air turbulence in the workspace.
6. Integrated Hanger Ring: Specifically designed for use with spring balancers to reduce operator fatigue and prevent accidental tool drops.

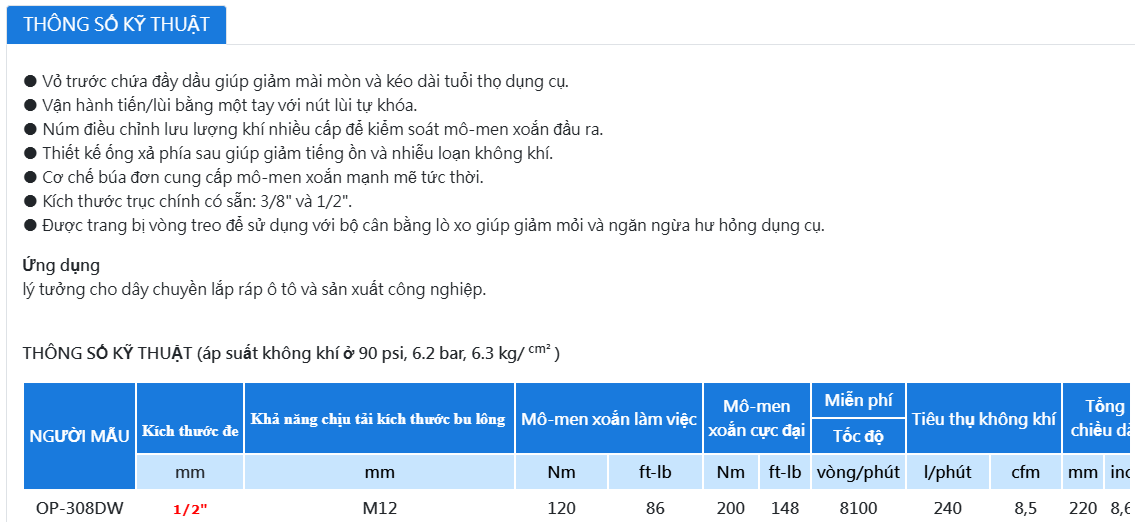

Technical Specifications of Onpin OP-308DW

1. Brand: Onpin
2. Model: OP-308DW (Part of the OP-308 Series)
3. Standard: EN ISO 11148-6:2012
4. Anvil Size: 1/2" (1/2 inch)
5. Capacity Bolt Size: M12
6. Working Torque: 120 Nm (86 ft-lb)
7. Max Torque: 200 Nm (148 ft-lb)
8. Free Speed: 8100 rpm
9. Air Consumption: 240 l/min (8.5 cfm)
10. Standard Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
11. Overall Length: 220 mm (8.6 in)

Industrial Applications of Onpin OP-308DW

1. Automotive Assembly Lines: Ideal for high-speed fastening of M12 structural bolts, chassis components, and sub-assemblies.
2. Industrial Manufacturing: Widely integrated into automated production lines, machinery fabrication workstations, and OEM assembly setup.
3. MRO & Equipment Overhaul: Perfectly suited for industrial maintenance facilities requiring heavy-duty, long-lasting pneumatic tools with consistent torque output.
