Onpin Air Impact Wrench OP-310LD3/LD4 EN ISO 11148-6 - Max Torque 270Nm, 8000rpm

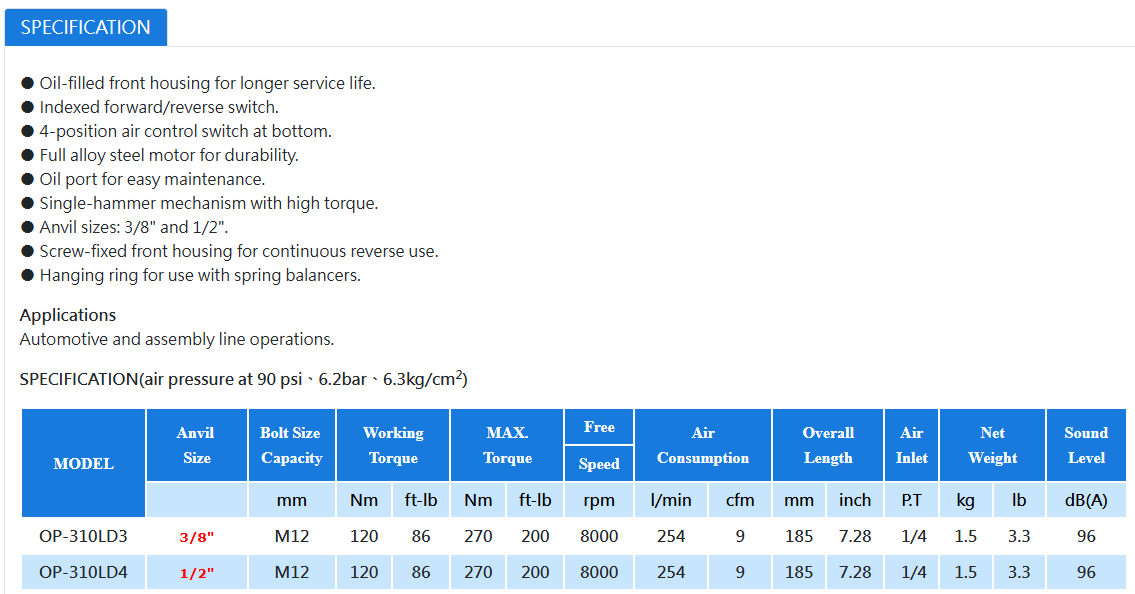

Specification OP-310LD3

Key Features of Onpin OP-310LD3 / OP-310LD4

1. Oil-filled front housing: Provides continuous lubrication to internal components, extending overall service life.
2. Full alloy steel motor: Delivers high structural strength and ultimate resistance against heavy workload wear.
3. Single-hammer mechanism: Generates high initial torque efficient for fast fastening operations.
4. 4-position air control switch: Located at the bottom to allow precise airflow adjustment for various torque requirements.
5. Indexed forward/reverse switch: Enables quick, reliable switching between tightening and loosening directions.
6. Convenient oil port: Designed for quick and easy daily maintenance access.
7. Screw-fixed front housing: Ensures structural stability during continuous reverse use.
8. Integrated hanging ring: Perfectly compatible with spring balancers to enhance ergonomics on production lines.

Technical Specifications of Onpin OP-310LD3 / OP-310LD4

1. Brand: Onpin (Hong Bing Pneumatic Industry Co., Ltd.)
2. Anvil Size: 3/8" (Model OP-310LD3) and 1/2" (Model OP-310LD4)
3. Bolt Size Capacity: M12
4. Working Torque: 120 Nm (86 ft-lb)
5. MAX. Torque: 270 Nm (200 ft-lb)
6. Free Speed: 8,000 rpm
7. Air Consumption: 254 l/min (9 cfm)
8. Overall Length: 185 mm (7.28 inch)
9. Air Inlet: 1/4" P.T
10. Net Weight: 1.5 kg (3.3 lb)
11. Sound Level: 96 dB(A)
12. Operating Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²

Industrial Applications of Onpin OP-310LD3 / OP-310LD4

1. Automotive industry: Ideal for automotive manufacturing, engine service, and repair workshop tasks.
2. Industrial assembly lines: Designed for continuous fastening operations in machinery assembly and manufacturing plants.
3. Mechanical repair workshops: Efficiently handles repetitive M12 bolt disassembly and assembly operations.
