/ Onpin Air Impact Wrench OP-601DB / OP-601D ISO 11148-6 - Max Torque 270Nm, 8500rpm
Onpin Air Impact Wrench OP-601DB / OP-601D ISO 11148-6 - Max Torque 270Nm, 8500rpm
Price:Contact Jade M-Tech
Category: Air Wrench
SKU: OP-601DB
The Onpin OP-601DB (3/8" anvil) and OP-601D (1/2" anvil) Air Impact Wrenches are compact industrial fastening tools engineered for automotive and assembly line operations. Compliant with EN ISO 11148-6:2012 standards and Machinery Directive 2006/42/EC, this series delivers a maximum torque of 270 Nm, a free speed of 8500 rpm, and M12 bolt capacity. Featuring a 155 mm overall length and a 1.54 kg net weight, it incorporates an oil-filled front housing, one-hand rocker switch forward/reverse operation, 4-position air control knob at the bottom, side exhaust, and a hanging ring for spring balancers.
OP-601DB Series Models & Sizes:
- 601DB
- OP-601DB
- OP-601D
- 01-104-01
- 02-200-04
- 02-201-05
- 02-203-03
- 03-300-02
- 03-700-04
- 04-700-03
- 04-702-04
- 04-702-08
- 05-702-04
- 05-701-09
- 06-701-09
- 06-701-21
- 12-700-05
- 13-401-01
- 13-700-09
- 14-701-01
- 15-702-04
- 17-704-01
- 20-702-01
- 25-702-12
- 31-703-01
- 35-706-05
- 36-503-13
- 37-503-05
- 38-504-04
- 39-504-02
- 41-704-01
- 42-703-02
- 45-704-01
- 51-402-09
- 51-503-05
- 74-707-03
- 75-605-01
- 79-609-04
- onpin air impact wrench
- pneumatic impact wrench op 601db
- 3/8 inch air wrench onpin
- industrial pneumatic impact wrench
- compact pneumatic bolt wrench
Show more
Design file download links:
PDF file** If you are using Google Chrome, please copy the download link and paste it into a new tab to download the 3D file (For support, please contact hotline: +84 935 136 236).
Description

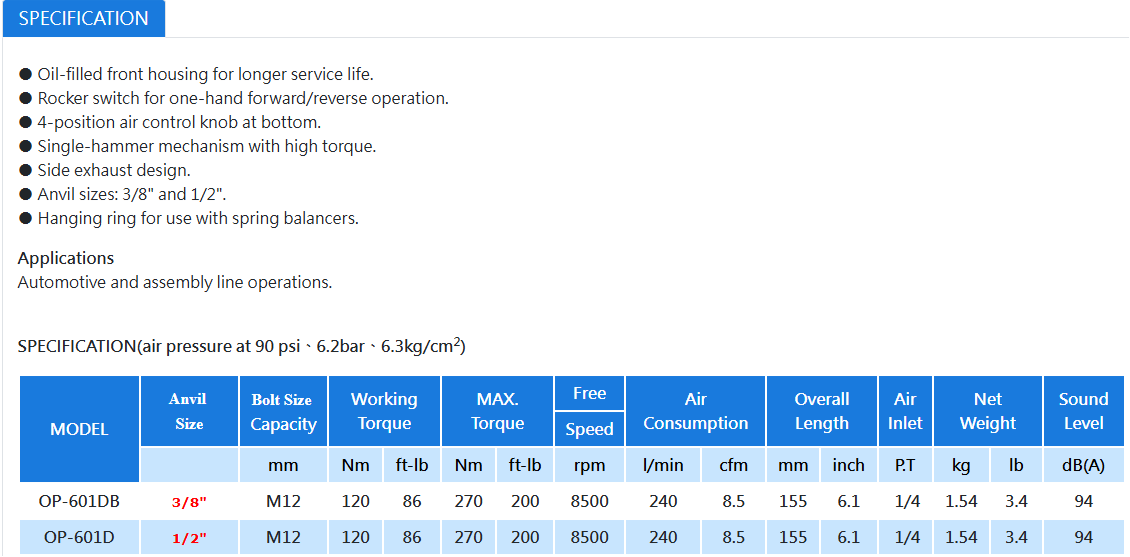

Specification OP-601DB:
Key Features of Onpin OP-601DB / OP-601D
- Oil-filled front housing: Provides continuous lubrication to internal impact mechanisms, ensuring an extended service life.
- Single-hammer mechanism with high torque: Maximizes impact energy output while maintaining a compact structural profile.
- Rocker switch: Enables convenient, one-handed forward and reverse directional control.
- 4-position air control knob at bottom: Allows operators to easily adjust airflow and power settings directly on the tool.
- Side exhaust design: Directs exhaust air away from the working area to maintain clean operating conditions.
- Hanging ring for spring balancers: Integrated top ring allows effortless pairing with spring balancers to reduce operator strain.
Technical Specifications of Onpin OP-601DB / OP-601D
- Anvil Size: 3/8" for OP-601DB and 1/2" for OP-601D
- Bolt Size Capacity: M12
- Working Torque: 120 Nm (86 ft-lb)
- MAX. Torque: 270 Nm (200 ft-lb)
- Free Speed: 8500 rpm
- Air Consumption: 240 l/min (8.5 cfm)
- Overall Length: 155 mm (6.1 inch)
- Air Inlet: 1/4" P.T
- Net Weight: 1.54 kg (3.4 lb)
- Sound Level: 94 dB(A)
- Standard Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
Industrial Applications of Onpin OP-601DB / OP-601D
- Automotive operations: Ideal for vehicle maintenance service shops, chassis bolting, and general automotive assembly work.
- Assembly line operations: Suited for industrial manufacturing plants requiring reliable, high-speed threaded fastener installation
