/ Onpin Air Impact Wrench OP-601D / OP-601DB ISO 11148-6 - Max Torque 270Nm, 8500rpm
Onpin Air Impact Wrench OP-601D / OP-601DB ISO 11148-6 - Max Torque 270Nm, 8500rpm
The Onpin OP-601D (1/2" anvil) and OP-601DB (3/8" anvil) Air Impact Wrenches are specialized industrial fastening tools designed for assembly line and automotive operations. Manufactured in compliance with EN ISO 11148-6:2012 and Machinery Directive 2006/42/EC, the tool delivers a maximum torque of 270 Nm, a free speed of 8500 rpm, and M12 bolt capacity at 90 psi (6.2 bar) operating pressure. Featuring an overall length of 155 mm and a net weight of 1.54 kg, it incorporates an oil-filled front housing, one-hand rocker switch forward/reverse operation, a 4-position air control knob at the bottom, side exhaust, and a hanging ring for spring balancers.
- 601D
- 601DB
- OP-601D
- OP-601DB
- 01-104-01
- 02-200-06
- 02-201-05
- 02-203-03
- 03-300-02
- 03-700-04
- 04-700-03
- 04-702-04
- 04-702-08
- 05-702-04
- 06-701-09
- 06-701-21
- 12-701-08
- 13-101-01
- 13-401-01
- 13-700-00
- 13-700-09
- 14-701-01
- 15-702-04
- 17-704-01
- 20-702-01
- 25-702-12
- 31-703-01
- 35-706-05
- 36-503-13
- 37-503-05
- 38-504-04
- 39-504-02
- 41-704-01
- 42-703-02
- 45-704-01
- 51-102-00
- 51-102-09
- 51-503-05
- 74-707-05
- 75-605-01
- 79-609-04
- onpin air impact wrench
- pneumatic impact wrench op 601d
- 1/2 inch air wrench onpin
- industrial pneumatic impact wrench
- compact pneumatic bolt wrench
Design file download links:
PDF fileDescription

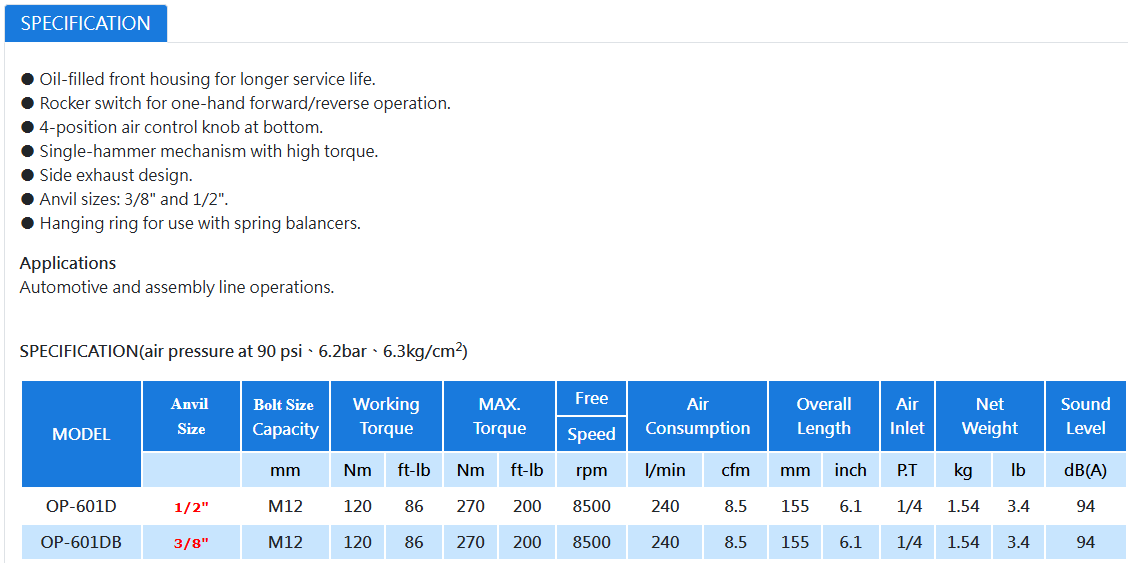

Specification OP-601D:
Key Features of Onpin OP-601D / OP-601DB
- Oil-filled front housing: Delivers continuous lubrication to the internal impact mechanism, ensuring longer service life.
- Single-hammer mechanism: Delivers high torque output within a compact frame.
- Rocker switch: Provides effortless, one-handed forward and reverse directional switching.
- 4-position air control knob at bottom: Enables precise adjustment of airflow and torque output directly at the base.
- Side exhaust design: Directs exhaust air away from the operator and immediate work area.
- Integrated hanging ring: Designed for easy integration with spring balancers to reduce operator fatigue.
Technical Specifications of Onpin OP-601D / OP-601DB
- Anvil Size: 1/2" for OP-601D and 3/8" for OP-601DB
- Bolt Size Capacity: M12
- Working Torque: 120 Nm (86 ft-lb)
- MAX. Torque: 270 Nm (200 ft-lb)
- Free Speed: 8500 rpm
- Air Consumption: 240 l/min (8.5 cfm)
- Overall Length: 155 mm (6.1 inch)
- Air Inlet Size: 1/4" P.T
- Net Weight: 1.54 kg (3.4 lb)
- Sound Level: 94 dB(A)
- Standard Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Compliance Standards: Machinery Directive 2006/42/EC, EN ISO 11148-6:2012
Industrial Applications of Onpin OP-601D / OP-601DB
- Automotive operations: Ideal for automotive service stations, chassis maintenance, and component disassembly.
- Assembly line operations: Applied in industrial manufacturing plants requiring fast, reliable threaded fastener installations
