/ Onpin Air Impact Wrench OP-605D4 ISO 11148-6 - Max Torque 300Nm, 9500rpm
Onpin Air Impact Wrench OP-605D4 ISO 11148-6 - Max Torque 300Nm, 9500rpm
Price:Contact Jade M-Tech
Category: Air Wrench
SKU: OP-605D4
The Onpin OP-605D4 (1/2" anvil) and OP-605D3 (3/8" anvil) Air Impact Wrenches are professional pneumatic bolt fastening tools engineered for assembly line and automotive operations. Certified to EN ISO 11148-6:2012 and Machinery Directive 2006/42/EC, the unit handles M12 bolt capacity with a maximum torque of 300 Nm, 9500 rpm free speed, and a quiet 82 dB(A) sound level at 90 psi (6.2 bar) operating pressure. Built with an overall length of 155 mm and weighing only 1.42 kg, it features an oil-filled front housing, one-hand rocker switch forward/reverse operation, bottom exhaust design, and a hanging ring for spring balancers.
OP-605D4 Series Models & Sizes:
- 605D4
- 605D3
- OP-605D4
- OP-605D3
- 01-104-01
- 02-200-06
- 02-201-05
- 02-203-03
- 03-300-02
- 03-700-04
- 04-700-03
- 04-702-04
- 04-702-08
- 09-702-04
- 12-701-06
- 13-401-01
- 13-700-09
- 14-701-01
- 15-702-01
- 15-702-04
- 17-704-01
- 20-702-01
- 25-702-12
- 26-501-02
- 31-703-01
- 35-706-06
- 36-503-13
- 37-503-05
- 38-504-04
- 39-504-02
- 41-704-01
- 42-703-02
- 51-102-09
- 51-402-00
- 51-503-05
- 70-609-07
- 74-707-05
- 75-605-01
- onpin air impact wrench
- pneumatic impact wrench op 605d4
- 1/2 inch air wrench onpin
- industrial pneumatic impact wrench
- compact pneumatic bolt wrench
Show more
Design file download links:
PDF file** If you are using Google Chrome, please copy the download link and paste it into a new tab to download the 3D file (For support, please contact hotline: +84 935 136 236).
Description

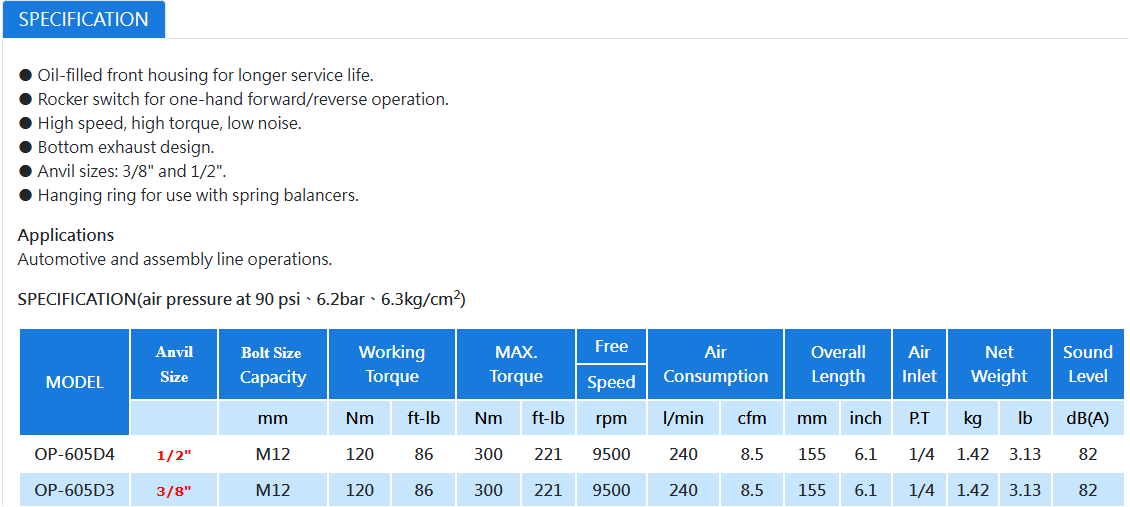

Specification OP-605D4:
Key Features of Onpin OP-605D4 / OP-605D3
- Oil-filled front housing: Provides continuous lubrication to internal mechanical parts, extending tool service life.
- Rocker switch: Designed for effortless, one-handed forward and reverse directional control.
- High performance: Combines high speed and high torque delivery while maintaining a low sound level of 82 dB(A).
- Bottom exhaust design: Directs exhaust air downward away from the operator and work surface.
- Integrated hanging ring: Features a built-in ring for seamless setup with spring balancers.
Technical Specifications of Onpin OP-605D4 / OP-605D3
- Anvil Size: 1/2" for OP-605D4 and 3/8" for OP-605D3
- Bolt Size Capacity: M12
- Working Torque: 120 Nm (86 ft-lb)
- MAX. Torque: 300 Nm (221 ft-lb)
- Free Speed: 9500 rpm
- Air Consumption: 240 l/min (8.5 cfm)
- Overall Length: 155 mm (6.1 inch)
- Air Inlet Size: 1/4" P.T
- Net Weight: 1.42 kg (3.13 lb)
- Sound Level: 82 dB(A)
- Standard Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Standard Compliance: Machinery Directive 2006/42/EC, EN ISO 11148-6:2012
Industrial Applications of Onpin OP-605D4 / OP-605D3
- Automotive operations: Ideal for automotive maintenance workshops, chassis assembly, and mechanical repair.
- Assembly line operations: Widely applied in continuous industrial manufacturing and automated component fastening assembly lines.
