/ Onpin Air Impact Wrench OP-605D3 / OP-605D4 ISO 11148-6 - Max Torque 300Nm, 9500rpm
Onpin Air Impact Wrench OP-605D3 / OP-605D4 ISO 11148-6 - Max Torque 300Nm, 9500rpm
The Onpin OP-605D3 (3/8" anvil) and OP-605D4 (1/2" anvil) Air Impact Wrenches are high-performance pneumatic bolt fastening tools engineered for assembly line and automotive operations. Compliant with EN ISO 11148-6:2012 standards and Machinery Directive 2006/42/EC, this series delivers M12 bolt capacity, a free speed of 9500 rpm, a maximum torque of 300 Nm, and low noise operation at 82 dB(A) under 90 psi (6.2 bar) air pressure. Featuring a compact length of 155 mm and a net weight of 1.42 kg, it incorporates an oil-filled front housing, one-hand rocker switch forward/reverse control, bottom exhaust design, and a hanging ring for spring balancers.
- 605D3
- 605D4
- OP-605D3
- OP-605D4
- 01-104-01
- 02-200-06
- 02-201-05
- 02-203-03
- 03-300-02
- 03-700-04
- 04-700-03
- 04-702-04
- 04-702-08
- 05-702-04
- 06-701-09
- 06-701-21
- 12-701-08
- 13-101-01
- 13-401-01
- 13-700-00
- 13-700-09
- 14-701-01
- 15-702-04
- 17-704-01
- 20-702-01
- 25-702-12
- 31-703-01
- 35-706-05
- 36-503-13
- 37-503-05
- 38-504-04
- 39-504-02
- 41-704-01
- 42-703-02
- 45-704-01
- 51-102-00
- 51-102-09
- 51-503-05
- 74-707-05
- 75-605-01
- 79-609-04
- onpin air impact wrench
- pneumatic impact wrench op 605d4
- 3/8 inch air wrench onpin
- industrial pneumatic impact wrench
- compact pneumatic bolt wrench
Design file download links:
PDF fileDescription

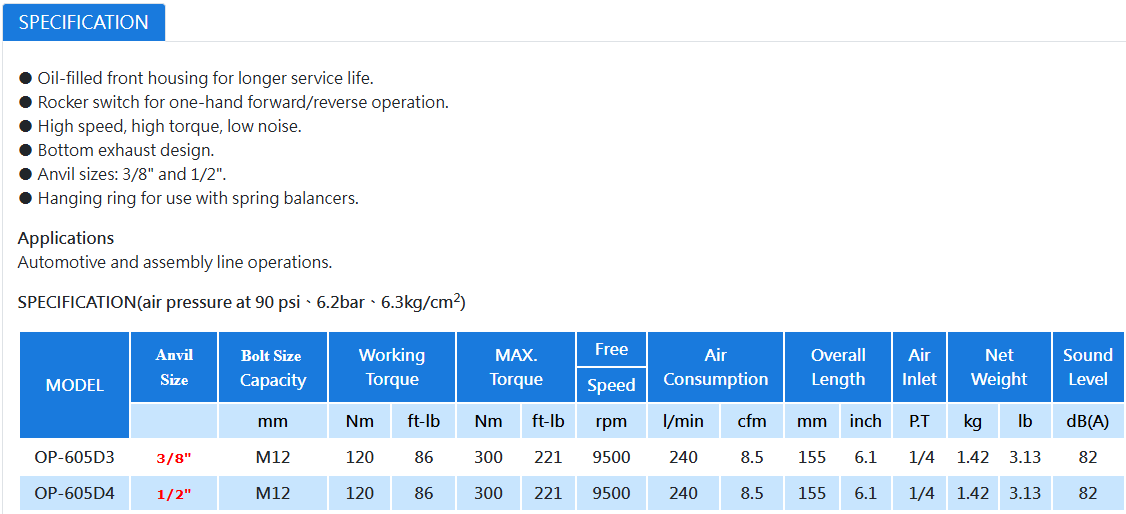

Specification OP-605D3:
Key Features of Onpin OP-605D3 / OP-605D4
- Oil-filled front housing: Provides continuous lubrication to internal components for longer service life.
- Rocker switch: Enables convenient, one-hand forward/reverse directional operation.
- High performance: Combines high speed and high torque output with a low noise level of 82 dB(A).
- Bottom exhaust design: Directs exhaust air downward away from the operator and work area.
- Hanging ring: Built-in ring designed for seamless integration with spring balancers.
Technical Specifications of Onpin OP-605D3 / OP-605D4
- Anvil Size: 3/8" for OP-605D3 and 1/2" for OP-605D4
- Bolt Size Capacity: M12
- Working Torque: 120 Nm (86 ft-lb)
- MAX. Torque: 300 Nm (221 ft-lb)
- Free Speed: 9500 rpm
- Air Consumption: 240 l/min (8.5 cfm)
- Overall Length: 155 mm (6.1 inch)
- Air Inlet Size: 1/4" P.T
- Net Weight: 1.42 kg (3.13 lb)
- Sound Level: 82 dB(A)
- Standard Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Compliance Standards: Machinery Directive 2006/42/EC, EN ISO 11148-6:2012
Industrial Applications of Onpin OP-605D3 / OP-605D4
- Automotive operations: Ideal for automotive service stations, chassis maintenance, and assembly repair.
- Assembly line operations: Suitable for continuous industrial assembly lines and mechanical production facilities.
