Torque Control Air Wrench Onpin OP-5SLB08 Series 3/8" - M5, 2.2-4.3 Nm, 800 rpm
The Onpin OP-5SLB08 torque control air wrench operates at an air pressure of 90 psi (6.2 bar), featuring a torque regulator and an automatic clutch mechanism that runs upon reaching the fixed torque to safeguard the workpiece from damage. It supports M5 bolt capacity, delivering a maximum torque of 2.2-4.3 Nm, a free speed of 800 rpm, and a net weight of 1.22 kg. Designed with a self-locking reverse button, convenient one-hand operation, and a spring balancer-compatible hook, this tool enhances both operational efficiency and worker safety.
- OP-5SLB08
- 5SLB08
- 01-103-07
- 02-200-04
- 02-201-16
- 02-203-06
- 03-700-02
- 03-700-04
- 03-700-09
- 04-700-01
- 04-700-05
- 04-700-06
- 04-700-07
- 04-701-09
- 04-701-11
- 04-702-11
- 05-701-05
- 05-701-10
- 05-702-03
- 06-701-24
- 06-702-25
- 08-701-04
- 08-702-03
- 08-703-01
- 10-701-01
- 11-701-01
- 11-702-02
- 12-700-05
- 12-701-04
- 12-701-09
- 13-700-07
- 13-700-08
- 15-701-04
- 15-701-05
- 15-701-10
- 15-702-07
- 15-702-09
- 15-702-13
- 15-702-18
- 16-700-06
- 16-700-07
- 16-701-09
- 17-707-01
- 18-703-02
- 24-302-01
- 24-703-03
- 25-704-09
- 26-703-05
- 26-902-02
- 31-707-03
- 32-708-02
- 35-705-03
- 36-702-01
- 37-502-03
- 38-703-02
- 39-702-02
- 39-702-05
- 39-703-03
- 39-703-04
- 43-703-07
- 48-703-11
- 49-702-05
- 49-702-06
- 51-309-03
- 51-401-05
- 51-401-06
- 51-402-03
- 51-603-02
- 51-702-17
- 51-702-18
- 51-705-02
- 51-705-03
- 52-300-01
- 52-301-01
- 52-302-01
- 52-701-19
- 52-701-23
- 52-702-06
- 52-702-18
- 52-702-35
- 52-702-52
- 52-702-53
- 56-702-01
- 64-400-01
- 67-701-02
- 74-703-02
- 74-704-14
- 74-708-07
- 76-705-02
- 78-614-03
- torque control air wrench
- air shut off screwdriver
- pneumatic clutch screwdriver
- air wrench op-5slb08
- onpin air screwdriver
Design file download links:
PDF fileDescription
Specification
What is Onpin OP-5SLB08?
The OP-5SLB08 torque control air wrench is a specialized pneumatic tool featuring a torque regulator and an automatic clutch mechanism that runs upon reaching the fixed torque to safeguard the workpiece from damage. It converts compressed air energy to efficiently and safely release or fasten high-precision screws in industrial assembly environments.
Key Features of Onpin OP-5SLB08
- Automatically runs the clutch upon reaching the fixed torque to safeguard the workpiece from damage.
- Equipped with an integrated torque regulator for precise fastening control.
- Designed for convenient one-hand operation in both forward and reverse directions.
- Reverse button features a built-in self-locking function for enhanced safety.
- Hook design compatible with spring balancers to deliver higher work efficiency and better safety for operators.

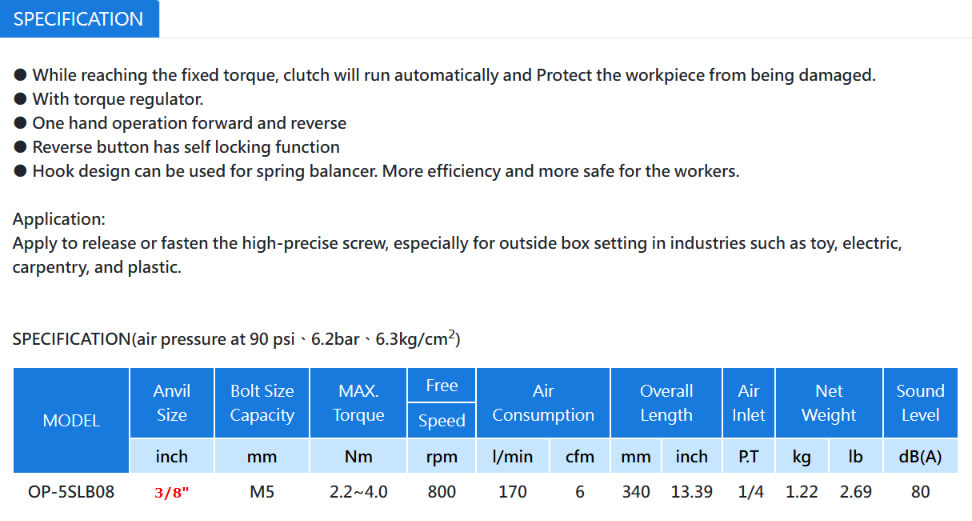

Technical Specifications of Onpin OP-5SLB08
- Model: OP-5SLB08
- Anvil Size: 3/8"
- Bolt Size Capacity: M5
- MAX. Torque: 2.2~4.3 Nm
- Free Speed: 800 rpm
- Air Consumption: 170 l/min (6 cfm)
- Overall Length: 340 mm (13.39 inch)
- Air Inlet P.T: 1/4"
- Net Weight: 1.22 kg (2.69 lb)
- Sound Level: 80 dB(A)
- Operating Air Pressure: 90 psi (6.2 bar)
Industrial Applications of Onpin OP-5SLB08
- Applied for releasing or fastening high-precision screws.
- Particularly suitable for outside box setting operations.
- Widely utilized in industries such as toy manufacturing, electrical equipment, carpentry, and plastics.
