/ Onpin OP-301LB3 (3/8") Two Hammer Impact Wrench - Working Torque 27Nm, Free Speed 13000rpm, Bolt Capacity M8
Onpin OP-301LB3 (3/8") Two Hammer Impact Wrench - Working Torque 27Nm, Free Speed 13000rpm, Bolt Capacity M8
The Onpin OP-301LB3 (3/8") Two Hammer Impact Wrench is a lightweight, high-speed pneumatic tool engineered for heavy-productive industrial applications. It delivers a reliable working torque of 27 Nm (max torque 35 Nm), a free speed of 13000 rpm, and one-hand operation for maximum efficiency. Operating at a standard air pressure of 90 psi (6.2 bar), this compact tool ensures superior fastening performance and professional reliability.
- OP-301LB3
- 301LB3
- 01-102-03
- 02-200-04
- 02-201-02
- 02-201-03
- 02-201-08
- 04-700-03
- 04-701-07
- 04-702-01
- 04-702-05
- 05-701-06
- 12-700-05
- 13-700-06
- 15-701-07
- 15-702-02
- 17-602-01
- 18-603-03
- 24-705-01
- 25-706-02
- 26-303-05
- 26-902-03
- 30-004-01
- 35-706-08
- 36-503-09
- 37-503-04
- 38-503-04
- 39-503-02
- 40-701-02
- 41-703-01
- 43-702-01
- 51-403-01
- 51-501-01
- 52-501-03
- 52-702-06
- 54-701-04
- 74-705-04
- 75-604-01
- 79-609-08
- Onpin impact wrench 3/8
- two hammer air wrench
- pneumatic impact wrench OP-301LB3
- Onpin spare parts list
- 3/8 inch air screwdriver
Design file download links:
PDF fileDescription
Specification Onpin OP-301LB3
What is Onpin OP-301LB3?
The Onpin OP-301LB3 is a pneumatic impact wrench featuring a Two Hammer Impact Wrench mechanism, specifically engineered for high-performance industrial assembly. It operates on compressed air to deliver rapid rotational speed and reliable torque for tightening and loosening threaded fasteners.
Key Features of Onpin OP-301LB3
- Engineered with a light weight, high speed profile to enhance operator productivity and reduce fatigue.
- Features a robust Two Hammer Impact Wrench mechanism for balanced torque distribution and extended durability.
- Supports one hand operation equipped with a convenient forward & reverse switch.
- Designed with a handle exhaust system to direct airflow cleanly away from the workspace.

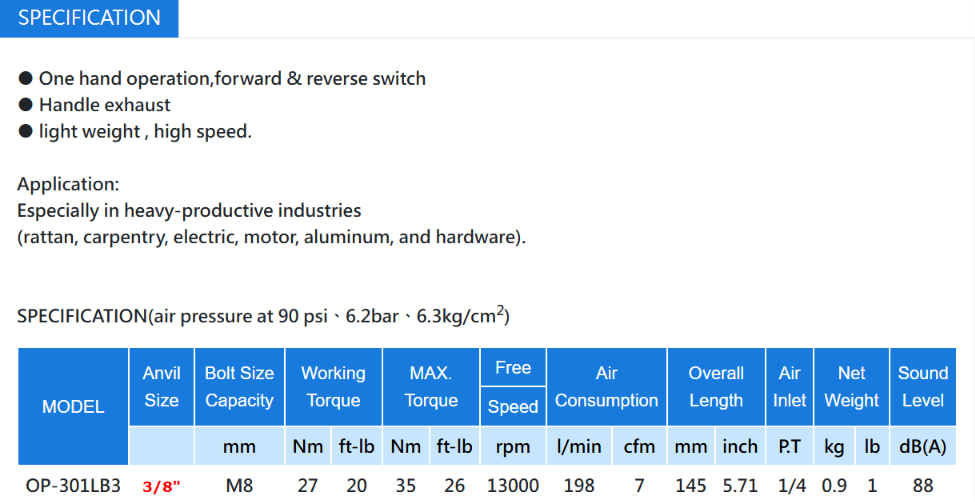

Technical Specifications of Onpin OP-301LB3
- Model: OP-301LB3
- Anvil Size: 3/8"
- Bolt Size Capacity: M8
- Working Torque: 27 Nm (20 ft-lb)
- MAX. Torque: 35 Nm (26 ft-lb)
- Free Speed: 13000 rpm
- Air Consumption: 198 l/min (7 cfm)
- Overall Length: 145 mm (5.71 inch)
- Air Inlet: 1/4" P.T
- Net Weight: 0.9 kg (1 lb)
- Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
- Sound Level: 88 dB(A)
Industrial Applications of Onpin OP-301LB3
- Widely deployed across heavy-productive industries.
- Suited for assembly operations in rattan, carpentry, electric, motor, aluminum, and hardware sectors.
