/ Two Hammer Impact Wrench Onpin OP-100B 1/2" - M12-M14 Capacity, 160Nm Working Torque
Two Hammer Impact Wrench Onpin OP-100B 1/2" - M12-M14 Capacity, 160Nm Working Torque
The Onpin OP-100B 1/2" pneumatic two hammer impact wrench utilizes compressed air to deliver powerful torque performance for industrial applications. It supports M12-M14 bolt capacities with a working torque of 160 Nm, a free speed of 5500 rpm, and a convenient forward and reversible knob. The tool features an oil-in-the-front-cap design for extended performance life and a rear exhaust system to reduce oil stains on workpieces. It is engineered specifically for heavy-productive industries including rattan, carpentry, electrical, motor, aluminum, and hardware sectors.
- OP-100B
- 01-104-06
- 02-200-06
- 02-201-05
- 02-201-07
- 02-203-02
- 02-203-03
- 03-300-02
- 04-700-03
- 04-701-07
- 04-702-01
- 04-703-01
- 05-701-06
- 05-702-04
- 06-701-16
- 12-701-06
- 14-701-03
- 14-702-01
- 15-702-04
- 15-702-10
- 17-709-01
- 18-302-03
- 25-703-03
- 26-704-02
- 31-707-02
- 35-710-01
- 36-504-01
- 37-504-01
- 38-505-01
- 39-505-01
- 40-702-01
- 41-704-03
- 43-703-02
- 51-404-02
- 51-503-02
- 52-704-02
- 52-704-04
- 54-702-02
- 74-707-10
- 75-606-03
- 78-615-01
- two hammer impact wrench
- 1/2 inch air impact wrench
- onpin air wrench
- m12 m14 air impact gun
- pneumatic impact wrench
Design file download links:
PDF fileDescription

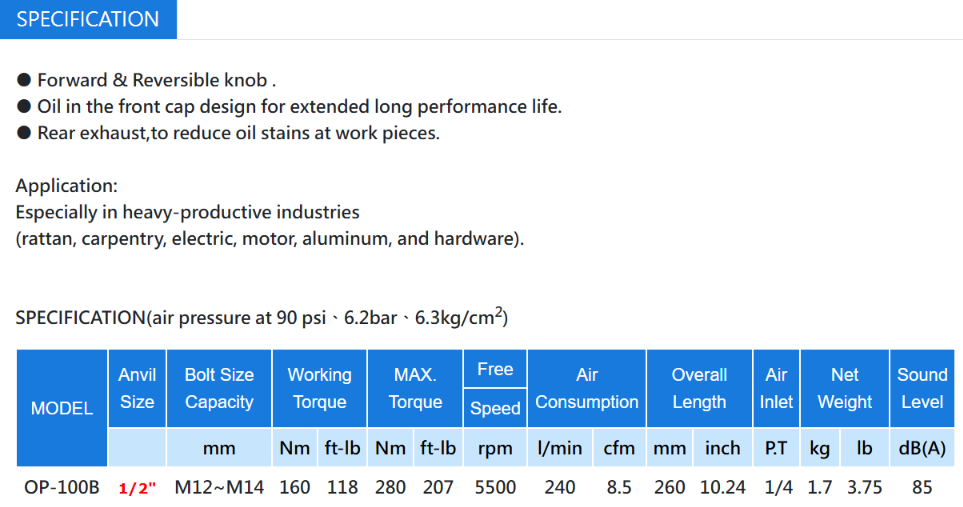

Specification Two Hammer Impact Wrench Onpin OP-100B 1/2"
What is Onpin OP-100B? The Onpin OP-100B is a pneumatic two hammer impact wrench powered by compressed air and a dual-hammer mechanism to deliver powerful torque for heavy-duty industrial fastening and unfastening tasks. This tool features a forward and reversible knob, an oil-in-the-front-cap design for extended performance life, and a rear exhaust system to minimize oil stains on workpieces.
Key Features of Onpin OP-100B
- Equipped with a forward and reversible knob for convenient operation.
- Oil-in-the-front-cap design engineered for extended long-term performance life.
- Rear exhaust configuration designed to reduce oil stains at workpieces.
Technical Specifications of Onpin OP-100B
- Model: OP-100B
- Brand: Onpin
- Anvil Size: 1/2"
- Bolt Size Capacity: M12–M14
- Working Torque: 160 Nm (118 ft-lb)
- MAX. Torque: 280 Nm (207 ft-lb)
- Free Speed: 5500 rpm
- Air Consumption: 240 l/min (8.5 cfm)
- Overall Length: 260 mm (10.24 inch)
- Net Weight: 1.7 kg (3.75 lb)
- Air Inlet Size: 1/4" P.T
- Standard Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Sound Level: 85 dB(A)
Industrial Applications of Onpin OP-100B
- Specifically designed for use in heavy-productive industries.
- Suited for manufacturing and assembly sectors including rattan, carpentry, electrical, motor, aluminum, and hardware fields.
