/ Two Hammer Impact Wrench Onpin OP-130B 1/2" - M16-M18 Capacity, 320Nm Working Torque
Two Hammer Impact Wrench Onpin OP-130B 1/2" - M16-M18 Capacity, 320Nm Working Torque
The Onpin OP-130B 1/2" pneumatic two hammer impact wrench utilizes compressed air to deliver high-torque performance for heavy-duty industrial applications. It supports M16-M18 bolt capacities with a working torque of 320 Nm, maximum torque of 500 Nm, a free speed of 4400 rpm, and a forward/reverse positioning switch design. Engineered specifically for heavy-duty industrial use, machinery maintenance, and demanding assembly operations.
- OP-130B
- 01-105-01
- 02-200-05
- 02-200-06
- 02-201-01
- 02-201-05
- 02-203-02
- 03-700-04
- 04-704-03
- 05-700-01
- 05-701-04
- 05-702-03
- 06-700-06
- 06-702-03
- 09-701-03
- 12-701-06
- 13-401-01
- 13-710-03
- 14-702-03
- 14-702-04
- 15-703-02
- 15-703-06
- 17-707-01
- 18-603-02
- 18-704-02
- 24-703-02
- 25-702-11
- 30-307-02
- 30-308-02
- 35-710-02
- 36-505-02
- 37-506-01
- 38-506-01
- 39-701-02
- 40-703-02
- 41-705-03
- 43-703-06
- 51-403-05
- 51-403-06
- 51-503-03
- 52-701-05
- 52-701-24
- 52-704-03
- 52-704-05
- 54-702-04
- 74-708-03
- 75-608-06
- 78-607-02
- 78-613-01
- two hammer impact wrench
- 1/2 inch air impact wrench
- onpin air wrench
- m16 m18 air impact gun
- pneumatic impact wrench
Design file download links:
PDF fileDescription
Specification
What is Onpin OP-130B? The Onpin OP-130B is a straight-type pneumatic impact wrench powered by compressed air and a dual-hammer mechanism to deliver high torque for heavy-duty industrial fastening and unfastening tasks. This tool features a forward/reverse positioning switch design, engineered specifically to meet rigorous performance demands in heavy manufacturing environments.
Key Features of Onpin OP-130B
- Forward/Reverse Positioning Switch Design.
- High-Torque Straight-Type Wrench configuration.
- Suitable for Heavy-Duty Industrial Use.

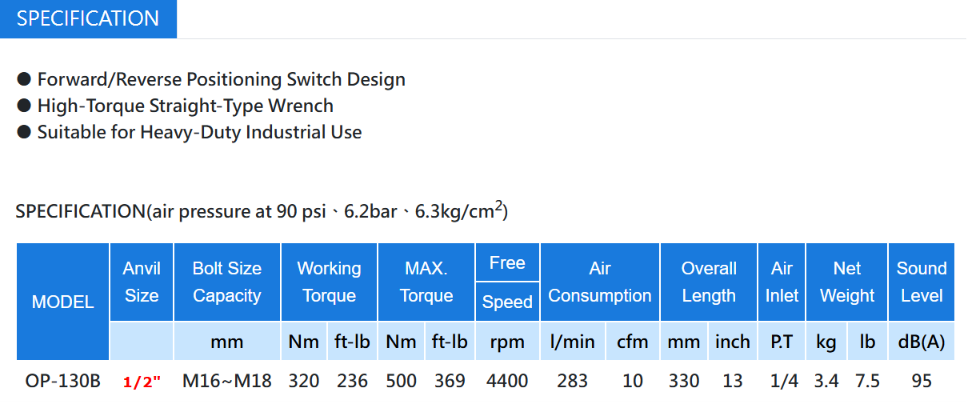

Technical Specifications of Onpin OP-130B
- Model: OP-130B
- Brand: Onpin
- Anvil Size: 1/2"
- Bolt Size Capacity: M16–M18
- Working Torque: 320 Nm (236 ft-lb)
- MAX. Torque: 500 Nm (369 ft-lb)
- Free Speed: 4400 rpm
- Air Consumption: 283 l/min (10 cfm)
- Overall Length: 330 mm (13 inch)
- Net Weight: 3.4 kg (7.5 lb)
- Air Inlet Size: 1/4" P.T
- Standard Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Sound Level: 95 dB(A)
Industrial Applications of Onpin OP-130B
- Deployed primarily in heavy-duty industrial operations.
- Suited for high-capacity assembly lines and maintenance tasks requiring robust torque output.
