/ Two Hammer Impact Wrench Onpin OP-310B3 3/8" - M10-M12 Capacity, 90Nm Working Torque
Two Hammer Impact Wrench Onpin OP-310B3 3/8" - M10-M12 Capacity, 90Nm Working Torque
The Onpin OP-310B3 3/8" pneumatic impact wrench features a dual-hammer mechanism delivering high attack frequency and low counteraction. It supports M10-M12 bolt capacities with a working torque of 90 Nm, maximum torque of 240 Nm, and an 8000 rpm free speed. Engineered specifically for heavy-productive industries including rattan, carpentry, electrical, motor, aluminum, and hardware sectors.
- OP-310B3
- 01-104-07
- 02-200-02
- 02-200-04
- 02-200-06
- 02-201-05
- 02-201-07
- 03-300-02
- 04-700-03
- 04-702-01
- 04-703-04
- 05-701-06
- 05-701-08
- 06-701-16
- 12-700-05
- 13-701-11
- 13-703-04
- 14-701-01
- 14-702-06
- 15-702-04
- 17-708-01
- 18-303-04
- 25-701-02
- 30-303-03
- 30-306-08
- 31-707-03
- 35-708-11
- 36-703-01
- 37-703-01
- 38-704-02
- 40-702-02
- 41-703-03
- 43-702-05
- 51-304-01
- 51-404-04
- 51-702-16
- 52-603-02
- 52-701-05
- 52-702-19
- 54-701-05
- 74-706-08
- 75-605-07
- 78-610-05
- two hammer impact wrench
- 3/8 inch air impact wrench
- onpin air wrench
- m10 m12 air impact gun
- pneumatic impact wrench
Design file download links:
PDF fileDescription
Specification Súng Vặn Ốc Khí Nén Onpin OP-310B3 3/8"
What is Onpin OP-310B3? The Onpin OP-310B3 is a pneumatic two hammer impact wrench powered by compressed air and a dual-hammer mechanism to deliver high torque for heavy-duty industrial fastening and unfastening tasks. This tool provides robust performance, meeting rigorous technical requirements for professional manufacturing and mechanical workshops.
Key Features of Onpin OP-310B3
- High attack frequency delivering powerful tightening performance.
- Low counteraction design ensuring stable and controlled operation.

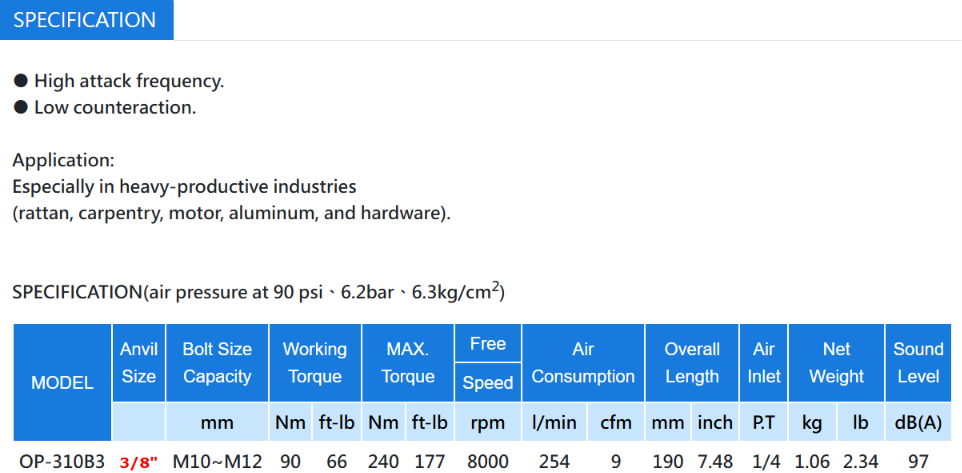

Technical Specifications of Onpin OP-310B3
- Model: OP-310B3
- Brand: Onpin (Hong Bing Pneumatic Industry Co., Ltd.)
- Anvil Size: 3/8"
- Bolt Size Capacity: M10–M12
- Working Torque: 90 Nm (66 ft-lb)
- MAX. Torque: 240 Nm (177 ft-lb)
- Free Speed: 8000 rpm
- Air Consumption: 254 l/min (9 cfm)
- Overall Length: 190 mm (7.48 inch)
- Net Weight: 1.06 kg (2.34 lb)
- Air Inlet Size: 1/4" P.T
- Standard Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Sound Level: 97 dB(A)
Industrial Applications of Onpin OP-310B3
- Specially deployed across heavy-productive industries.
- Suited for manufacturing sectors including rattan, carpentry, electrical, motor, aluminum, and hardware fields.
