/ Two Hammer Impact Screw Driver Onpin OP-328B3 3/8" - M10-M12 Capacity, 100Nm Working Torque
Two Hammer Impact Screw Driver Onpin OP-328B3 3/8" - M10-M12 Capacity, 100Nm Working Torque
The Onpin OP-328B3 3/8" dual-hammer pneumatic impact screw driver is designed to release or fasten small bolts efficiently in heavy-productive assembly lines such as motor-vehicles, bicycles, and motors. It supports M10-M12 bolt capacities with a working torque of 100 Nm, maximum torque of 240 Nm, and a free speed of 8800 rpm. Featuring a 360-degree rotating side exhaust, high impact frequency, and low counteraction for superior operational control.
- OP-328B3
- 01-104-07
- 02-200-04
- 02-200-06
- 02-201-05
- 02-201-07
- 02-202-03
- 02-203-03
- 02-205-02
- 03-300-02
- 04-700-03
- 04-702-01
- 04-703-04
- 05-701-06
- 05-701-08
- 06-701-16
- 12-700-05
- 14-701-01
- 14-702-06
- 15-702-04
- 17-708-01
- 18-303-04
- 25-701-02
- 26-305-02
- 31-707-03
- 35-708-11
- 36-703-01
- 37-703-01
- 38-704-02
- 39-704-06
- 40-702-02
- 41-703-03
- 43-702-05
- 51-404-04
- 51-702-16
- 52-702-19
- 54-701-05
- 74-706-08
- 75-605-10
- 78-611-07
- two hammer impact screw driver
- 3/8 inch air impact wrench
- onpin air wrench
- m10 m12 air impact gun
- pneumatic impact wrench
Design file download links:
PDF fileDescription

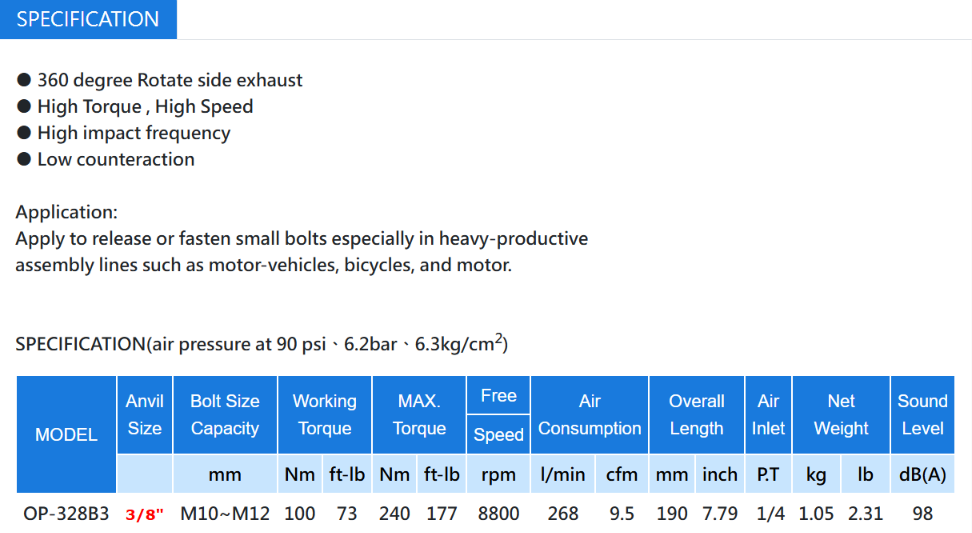

Specification Two Hammer Impact Screw Driver Onpin OP-328B3 3/8"
What is Onpin OP-328B3? The Onpin OP-328B3 is a pneumatic two hammer impact screw driver powered by compressed air and a dual-hammer mechanism to deliver high torque for industrial fastening and unfastening applications. This tool features a 360-degree rotating side exhaust and high impact frequency designed to optimize operational efficiency.
Key Features of Onpin OP-328B3
- 360-degree rotate side exhaust configuration.
- Engineered for high torque and high speed output.
- High impact frequency delivering powerful performance.
- Low counteraction design ensuring stable operator control.
Technical Specifications of Onpin OP-328B3
- Model: OP-328B3
- Brand: Onpin (Hong Bing Pneumatic Industry Co., Ltd.)
- Anvil Size: 3/8"
- Bolt Size Capacity: M10–M12
- Working Torque: 100 Nm (73 ft-lb)
- MAX. Torque: 240 Nm (177 ft-lb)
- Free Speed: 8800 rpm
- Air Consumption: 268 l/min (9.5 cfm)
- Overall Length: 190 mm (7.79 inch)
- Net Weight: 1.05 kg (2.31 lb)
- Air Inlet Size: 1/4" P.T
- Standard Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Sound Level: 98 dB(A)
Industrial Applications of Onpin OP-328B3
- Applied to release or fasten small bolts in heavy-productive assembly operations.
- Suited for industrial manufacturing sectors such as motor-vehicles, bicycles, and motors.
