/ Onpin OP-301LB2 (1/4") Two Hammer Impact Wrench - Working Torque 27Nm, Free Speed 13000rpm, Bolt Capacity M8
Onpin OP-301LB2 (1/4") Two Hammer Impact Wrench - Working Torque 27Nm, Free Speed 13000rpm, Bolt Capacity M8
The Onpin OP-301LB2 (1/4") Two Hammer Impact Wrench is a lightweight, high-speed pneumatic tool designed for heavy-productive industries, woodworking, and assembly applications. It delivers a reliable working torque of 27 Nm (max torque 35 Nm) alongside a free speed of 13000 rpm for efficient fastening operations. Operating at a standard air pressure of 90 psi (6.2 bar), this compact tool ensures superior durability and precision for professional industrial workflows.
- OP-301LB2
- 301LB2
- 01-102-03
- 02-200-04
- 02-201-02
- 02-201-03
- 02-201-08
- 03-700-07
- 04-700-03
- 04-701-07
- 04-702-01
- 04-702-05
- 06-700-01
- 06-701-06
- 13-700-06
- 15-701-07
- 15-702-02
- 17-602-01
- 18-603-03
- 24-705-01
- 25-706-02
- 26-303-05
- 26-902-03
- 30-904-01
- 35-706-08
- 36-503-09
- 37-503-04
- 38-503-04
- 39-503-02
- 40-701-02
- 41-703-01
- 43-702-01
- 51-403-01
- 51-501-02
- 52-501-03
- 52-702-05
- 54-701-02
- 74-705-03
- 75-604-01
- 79-609-08
- Onpin impact wrench
- two hammer air wrench
- 1/4 inch pneumatic impact wrench
- Onpin spare parts list
- industrial air torque tool
Design file download links:
PDF fileDescription

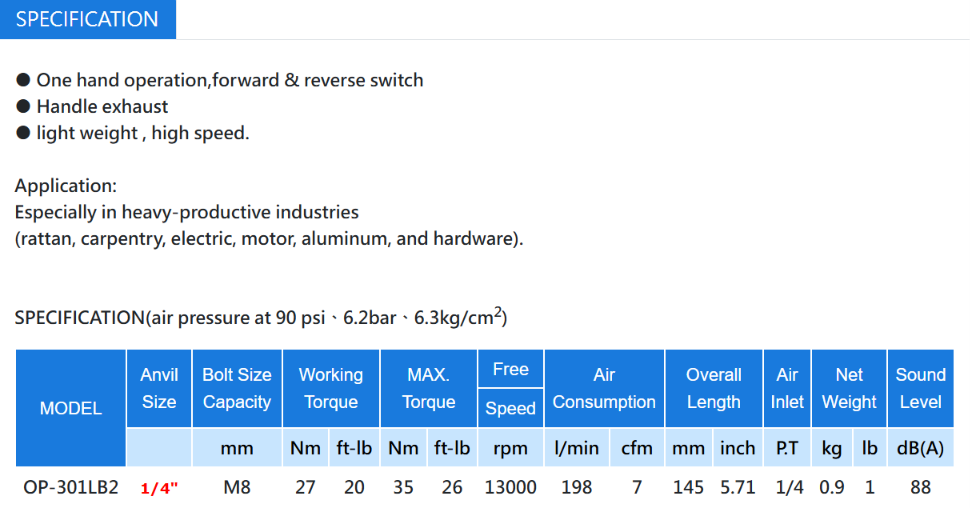

Specification Onpin OP-301LB2 (1/4")
What is Onpin OP-301LB2?
The Onpin OP-301LB2 is a lightweight pneumatic tool featuring a Two Hammer Impact Wrench mechanism, engineered for high-performance fastening applications. It operates on compressed air to deliver high-speed rotation and reliable torque for industrial assembly tasks.
Key Features of Onpin OP-301LB2
- Designed for one hand operation featuring an integrated forward & reverse switch for user convenience.
- Features a handle exhaust configuration to direct airflow away from the immediate working area.
- Delivers a light weight, high speed operational profile to maximize daily productivity and minimize operator fatigue.
Technical Specifications of Onpin OP-301LB2
- Model: OP-301LB2
- Anvil Size: 1/4"
- Bolt Size Capacity: M8
- Working Torque: 27 Nm (20 ft-lb)
- MAX. Torque: 35 Nm (26 ft-lb)
- Free Speed: 13000 rpm
- Air Consumption: 198 l/min (7 cfm)
- Overall Length: 145 mm (5.71 inch)
- Air Inlet: 1/4" P.T
- Net Weight: 0.9 kg (1 lb)
- Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
- Sound Level: 88 dB(A)
Industrial Applications of Onpin OP-301LB2
- Specially deployed in heavy-productive industries.
- Widely utilized across rattan, carpentry, electric, motor, aluminum, and hardware sectors.
